Stop Rear Main Seal Comebacks: ATC ZTSE-4515-C Installer for MaxxForce & Powerstroke

By Blogdashfdhd Adminvsbgfsf •
Stop Rear Main Seal Comebacks: ATC ZTSE-4515-C Installer for MaxxForce & Powerstroke

Stop Rear Main Seal Comebacks: ATC ZTSE-4515-C Installer for MaxxForce & Powerstroke

ATC ZTSE-4515-C Rear Seal Installer complete kit for MaxxForce and Powerstroke engines.

Rear main seal leaks are the #1 comeback killer for diesel shops. One wrong depth setting and you're looking at oil puddles, customer complaints, and warranty headaches. The ATC ZTSE-4515-C Rear Seal Installer (Ford 303-770 / ZTSE-4515 replacement) eliminates guesswork. Precision-engineered for International MaxxForce VT275, VT365, MaxxForce 5/7 and Ford Powerstroke 4.5L, 6.0L, 6.4L engines across F-Series, E-Series, Excursion, and commercial chassis—this tool installs seal + wear sleeve together at factory-correct depth every time.

GET REAR SEAL INSTALLER NOW – $275
MaxxForce 7 • Powerstroke 4.5L/6.0L/6.4L • Ford 303-770 Replacement

Why Rear Main Seals Fail: The Depth Problem

Rear main seals leak because they're installed too deep, too shallow, or with seal/wear sleeve separation. Improper installation causes:

  • Oil starvation – Seal runs dry without wear sleeve protection
  • Immediate leaks – Wrong depth = instant failure
  • Crankshaft damage – Misaligned seal cuts crank flange
  • Warranty claims – $1,500+ per comeback
  • Reputation damage – Customers don't return for sloppy work

The ATC ZTSE-4515-C solves this with a precision hub that automatically sets correct seal depth when the drive nut bottoms out. No measuring. No guessing. Factory results every time.

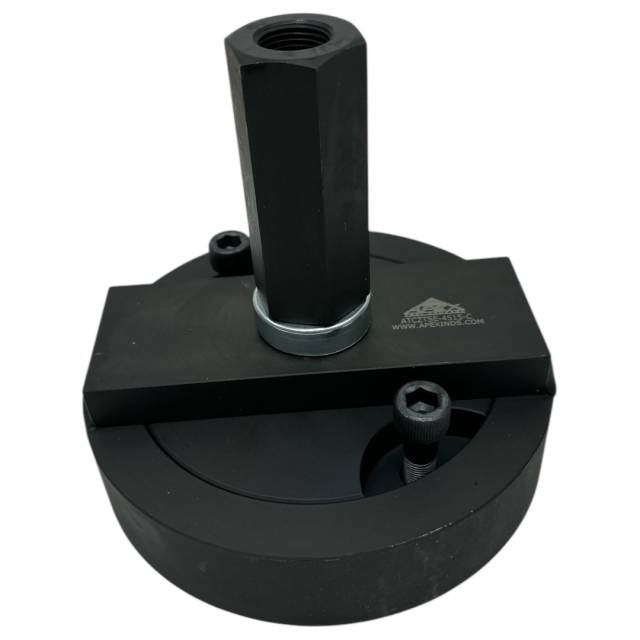

ATC ZTSE-4515-C rear seal installer components showing alignment dowel and drive nut.

Complete Application Coverage: 50+ Models

International MaxxForce Engines:

  • 2004-2007 VT 275
  • 2004-2007 VT 365
  • 2007 MaxxForce 5
  • 2007-2010 MaxxForce 7

Ford Powerstroke Applications:

  • Excursion 6.0L (2003-2005)
  • E350 6.0L (2004-2010)
  • E450 6.0L (2004-2010)
  • F250 6.0L (2004-2007)
  • F250 6.4L (2008-2010)
  • F350 6.0L (2004-2007)
  • F350 6.4L (2008-2010)
  • F450 6.0L/6.4L (2004-2010)
  • F550 6.0L/6.4L (2004-2010)
  • F650 6.0L (2004-2007)
  • F750 6.0L (2004-2007)
  • LCF 4.5L (2006-2009)

ATC ZTSE-4515-C Specifications & Features

Specification Detail
SKU ATCZTSE-4515-C
Price $275.00
Shipping Weight 14 lbs
Replaces ZTSE-4515-C, ZTSE-4515, Ford 303-770
Key Feature Precision hub sets correct seal depth automatically
Lubrication 50/50 detergent & water only (no oil)

No More Seal Comebacks—Factory Results Every Time

One warranty claim pays for this tool 5X over.

ORDER ATC ZTSE-4515-C → $275

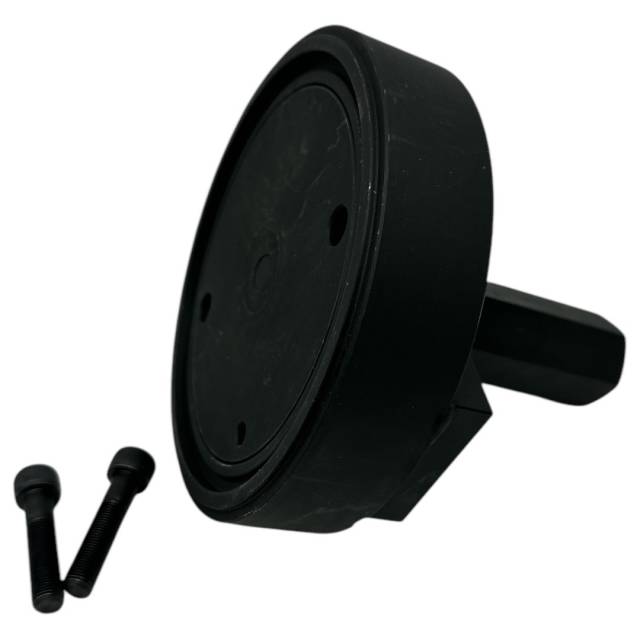

ATC ZTSE-4515-C rear seal installer base with alignment dowel.

ROI: Rear Seal Installer Pays for Itself Immediately

Seal Comebacks (Wrong Tool)

  • Rear main seal + labor: $1,200
  • Customer pickup/teardown: $300
  • Reputation damage: Priceless
  • Per comeback: $1,500+

ATC ZTSE-4515-C

  • Tool investment: $275
  • Zero comebacks
  • 30-minute installs
  • ROI: First job

Pro Installation Checklist

Every Rear Seal Job – Critical Steps

✅ Clean crankshaft flange with solvent
✅ Apply 360° bead of Loctite to flange
✅ Install installer base using alignment dowel
✅ Place new seal + wear sleeve on hub (together)
✅ Lubricate with 50/50 detergent/water only
✅ Hand-tighten drive nut until it bottoms out
✅ NO impact wrench until fully bottomed
✅ Verify seal depth per service manual

Diesel Shops: Eliminate Seal Comebacks Today

ADD TO CART • ATC ZTSE-4515-C

Perfect Seal Depth = Happy Customers

The Rear Seal Tool Every Diesel Shop Needs

BUY NOW → $275
✅ MaxxForce 7 • Powerstroke 4.5L/6.0L/6.4L
✅ Ford 303-770 Replacement
✅ 50+ Truck Applications
