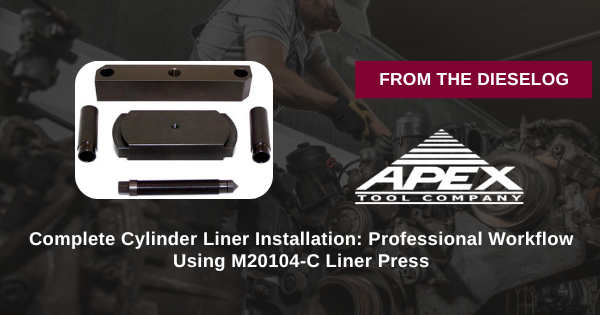

Complete Cylinder Liner Installation: Professional Workflow Using M20104-C Liner Press

Cylinder liner installation on Cummins NT, NH, N14 and Caterpillar 3406/3408 engines requires precision, proper technique, and the right equipment. This complete workflow guide covers the M20104-C Liner Press for professional heavy-duty diesel engine rebuilds. From block preparation through final liner verification, follow these steps for perfect liner seating, correct protrusion, and reliable engine performance every time—eliminating warranty claims and protecting shop profitability.

Phase 1: Block Preparation & Inspection

1. Clean engine block thoroughly – Remove all debris, oil, and contamination from bore area.
2. Inspect cylinder bore – Check for cracks, damage, or corrosion; must be smooth for liner seating.
3. Clean bore honing patterns – Verify proper honing (if required); check with straightedge for warping.
4. Measure bore diameter – Verify within OEM specifications before liner installation.
5. Inspect O-ring seals – Check condition of O-rings that seat liner; replace if damaged or worn.
6. Prepare installation area – Ensure adequate workspace and vertical clearance for M20104-C operation.

Phase 2: Liner Inspection & Preparation

1. Inspect new liner for damage – Check for scratches, dents, or dimensional issues.
2. Clean liner inside and out – Remove any factory oils, debris, or protective coatings.
3. Dry liner completely – Use clean compressed air; no moisture on installation surfaces.
4. Verify liner dimensions – Measure OD and sealing surface; confirm matches block bore.
5. Install O-ring seals if applicable – Some engines require O-rings; install per OEM procedure.
6. Mark liner orientation – Note any directional markings required by OEM.

Phase 3: M20104-C Setup & Alignment

1. Inspect M20104-C for damage – Check alignment surfaces, guide bushings, and drive mechanism.
2. Position M20104-C on block – Center press over bore; verify perpendicular alignment.
3. Install liner in press guide – Position liner concentrically in M20104-C chuck/holder.
4. Verify liner concentricity – Rotate liner gently to confirm centered position.
5. Check clearance around liner – Ensure no binding or interference with block deck.
6. Apply installation lubricant – Use light engine oil on liner OD and block bore (per OEM).

Phase 4: Controlled Liner Insertion

1. Apply pressure gradually – Begin M20104-C operation; apply steady, controlled force.
2. Monitor liner descent – Watch for even, straight insertion; stop if binding detected.
3. If binding occurs, pause and inspect – May indicate misalignment or contamination; address before continuing.
4. Continue steady pressure – Liner should seat smoothly; resistance should decrease as seating progresses.
5. Feel for final seating – Experienced installers sense when liner fully seats (pressure change).
6. Verify final liner position – Liner should be fully seated with uniform contact around bore.

Phase 5: Protrusion Measurement & Verification

1. Remove M20104-C from block – Lift press carefully; verify liner remains seated.
2. Clean deck surface – Remove any oil or debris around liner top.
3. Measure liner protrusion – Use precision depth gauge or straight edge + feeler gauge.
4. Record protrusion reading – Compare to OEM specifications (typically 0.010"–0.025" protrusion).
5. Verify all cylinder liners – Measure all liners; protrusion should be uniform across block.
6. Inspect liner seat integrity – Look for gaps or movement; liner should be locked in position.
7. Document final measurements – Record all liner heights in service records.
