Fuel Rail Leak Testing Made Safe: ATC4919546 Leak Tester Adapter for Cummins ISX15/QSX15
Fuel Rail Leak Testing Made Safe: ATC4919546 Leak Tester Adapter for Cummins ISX15/QSX15
Cummins ISX15 and QSX15 fuel rail pressure loss demands precise diagnostic procedures. The ATC4919546 fuel system leak tester adapter enables safe, OEM-compliant rail decay testing to isolate injector leaks, pump faults, and rail anomalies without fuel spray hazard.
The Fuel Rail Pressure Loss Challenge
Cummins ISX15 and QSX15 common-rail fuel systems operate at 26,000+ psi with zero tolerance for pressure decay. When a technician reports fuel rail pressure loss, the root cause could be any of five potential failure points: high-pressure fuel pump, fuel rail relief valve, internal rail leakage, injector sealing faults, or damaged fuel lines. Proper diagnosis requires isolating each component sequentially using OEM-specified procedures.
- Unguided diagnosis leads to unnecessary component replacement – Without proper isolation, technicians replace injectors, pumps, or rails unnecessarily = $3,000–$8,000 wasted parts cost
- High-pressure fuel spray hazard – Disconnecting fuel lines without blocking off adapters risks 26,000+ psi fuel spray = severe burn hazard or fire risk
- Fuel contamination and system damage – Improper test procedures allow air entry and contamination into high-pressure rail = fuel system degradation
- Extended diagnostic time without proper tools – Manual leak testing: 3–6+ hours. OEM procedure with block-off adapters: 45–90 minutes.
- Missed early-stage faults – Without systematic rail decay testing, shops miss early leaks that eventually become catastrophic failures
- Warranty issues and rework – Failed diagnosis leads to repeat repairs and warranty claims that damage shop reputation

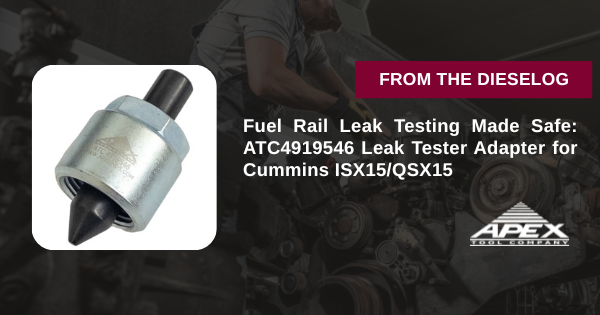

What is the ATC4919546 Fuel System Leak Tester Adapter?
The ATC4919546 Fuel System Leak Tester Adapter is a precision-engineered block-off fitting designed specifically for Cummins ISX15 and QSX15 fuel rail leak testing. This direct OEM replacement (Cummins part #4919546) installs at each injector rail outlet in place of the fuel line connector, allowing technicians to safely block off individual injectors and perform the OEM-specified rail decay test procedure found in Cummins Technical Bulletin TSB150104.
By installing five leak tester adapters at the five injector rail ports and monitoring rail pressure decay over a specified time period, technicians can isolate the source of fuel loss: pump fault, relief valve failure, internal rail leakage, or injector sealing fault. This systematic approach eliminates guesswork, prevents unnecessary parts replacement, and protects technicians from high-pressure fuel spray hazard.
Cummins Engine Compatibility
Compatible Engine Series: Cummins ISX15, Cummins QSX15 (all variants)
OEM Service Procedure: Cummins Technical Bulletin TSB150104
Application: High-pressure fuel rail leak-down testing and pressure decay diagnosis
Quantity Required: Five adapters per complete rail test (one for each injector outlet)
Ideal For: Fleet maintenance, remanufacturers, heavy-duty diesel shops
Professional Features That Protect Technicians & Accuracy
✓ OEM-Spec Precision Design
Direct replacement for Cummins 4919546 ensures exact fit and compatibility with ISX15/QSX15 fuel rail ports. No improvisation or workarounds needed.
✓ Safe Pressure Containment
Block-off design safely contains 26,000+ psi fuel pressure. Eliminates fuel spray hazard when disconnecting injector lines during testing.
✓ Systematic Leak Isolation
Five adapters per set enable the OEM procedure to isolate leak source: pump, relief, rail, or injector. Eliminates guesswork and unnecessary parts replacement.
✓ TSB150104 Compliance
Designed to support Cummins Technical Bulletin TSB150104 high-pressure fuel rail testing procedure. OEM-documented method ensures warranty compliance.
✓ Fast Diagnostic Time
OEM procedure with proper adapters: 45–90 minutes. Manual methods: 3–6+ hours. Time savings enable faster diagnosis and faster customer return.
✓ Prevents Unnecessary Replacement
Systematic testing isolates actual fault component. Prevents $3,000–$8,000 in wasted parts and rework from misdiagnosis.
The Diagnostic & Safety Impact
One prevented misdiagnosis pays for a complete five-adapter set 10–26 times over. Plus: technician safety and customer confidence in diagnosis accuracy.
When You Need the ATC4919546 Set
- Cummins ISX15/QSX15 fuel rail pressure loss or slow pressure decay
- SPN 1239 / FMI 16 or other fuel pressure fault codes
- Suspected injector internal leakage or sealing fault
- Fuel pump performance diagnosis (pressure holds or loss)
- Fuel rail relief valve testing
- Routine maintenance diagnostic procedures on ISX15/QSX15 fleet vehicles
- Engine remanufacturing requiring complete fuel system validation
Professional Diesel Shops Depend on ATC4919546
Heavy-duty diesel shops and fleet maintenance facilities rely on the ATC4919546 five-adapter set because it delivers three critical outcomes: safe technician protection, accurate root-cause diagnosis, and time-efficient testing. Professional shops understand that fuel rail pressure loss demands systematic, OEM-compliant testing procedures. Improvisation risks technician safety, misdiagnosis, and costly unnecessary parts replacement.
Whether you're diagnosing a single ISX15 pressure loss complaint or running routine fuel system validation across a large fleet of QSX15 engines, the ATC4919546 set ensures your team performs accurate, safe rail decay testing, avoids misdiagnosis-driven parts waste, and maintains professional reputation for diagnostic accuracy and technician safety.
