Cleanliness is the difference between a dry engine and a total failure. Learn the professional procedure for using the ATC50136 (ZTSE 4304) brush set.

Why Specialized Brushes Beat Hardware Store Hacks

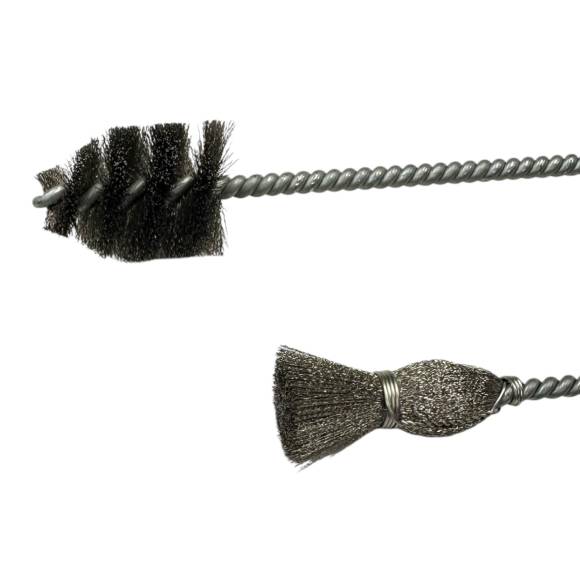

Standard wire brushes often lack the length to reach the fuel gallery or the specific diameter to scrub the cup seat without damaging the bore walls. The ATC50136 set is machined to factory dimensions, providing a perfectly centered scrub that removes carbon while preserving the metal's mirror finish.

The 10-Step Bore Cleaning Protocol

1. Cup Removal: Extract the old injector sleeves using a professional puller.
2. Debris Management: Use a shop vacuum to pull out large carbon flakes before brushing.
3. Tool Selection: Select the larger bore brush for the upper sleeve area and the smaller brush for the lower gallery.
4. Initial Scrub: Insert the brush manually and rotate to break up baked-on anaerobic sealant.
5. Deep Gallery Clean: Use the fuel gallery brush to ensure no debris is blocking the fuel entrance ports.
6. Solvent Application: Use a lint-free swab with a small amount of brake cleaner or specialized solvent.
7. Visual Verification: Use a bright light and a mirror to inspect the bottom "shoulder" of the bore. It must be bare, shiny metal.
8. Vacuum Recovery: Perform a final vacuum of the cylinder to ensure no carbon fell into the piston area.
9. Sleeve Preparation: Apply new sealant to your injector cup.
10. Final Seat: Install the cup into a bore that is now "ZTSE-Clean."
