Servicing or replacing fuel injectors during an overhaul or field repair on a John Deere 3029, 4045, 6068, or 6081 engine? Follow this step-by-step professional workshop procedure to clean fuel well areas, seat the JDE92 deep socket, break loose carbon-baked retaining nuts, and re-torque fresh injectors to exact OEM specifications.

Why Improper Tooling Causes Catastrophic Fuel System Complications

On John Deere 300, 400, and 600 series diesel engines, fuel injectors are installed into deep bores machined directly into the cast-iron cylinder head. Because access is restricted by intake manifolds, fuel supply lines, and rocker assemblies, proper tool fitment is vital. Mechanics attempting to service injectors with standard shallow sockets or open-end wrenches face severe physical obstacles. Standard sockets cannot seat fully down onto the retaining nut hex due to interference with the top of the injector body or leak-off lines. When a technician applies wrench torque to a partially engaged socket, the socket cocks sideways. This off-axis force rounds off the hex corners of the retaining nut, strips the threads, or shears off the delicate return fuel nipples on the injector body. Worse, if an injector is reinstalled using improper sockets, accurate torque cannot be applied. An under-torqued injector allows combustion gases to blow past the copper sealing washer, cooking the injector body in carbon deposits, while an over-torqued nut distorts the internal needle valve, causing fuel dribble and engine misfires. Utilizing the dedicated 0.60-pound JDE92 deep socket completely eliminates these service hazards. Machined specifically for John Deere injector clearances, the socket slides down over the injector body to engage the retaining hex with 100% parallel contact, ensuring smooth removal and accurate factory torque installation.

The 5-Step John Deere Injector Removal & Installation Protocol

1. Clean Area & Disconnect Fuel Lines: Thoroughly blow away dirt, chaff, and debris from around the fuel injectors and valve cover area using compressed air. Disconnect high-pressure fuel lines and return fuel hoses from the target injector.

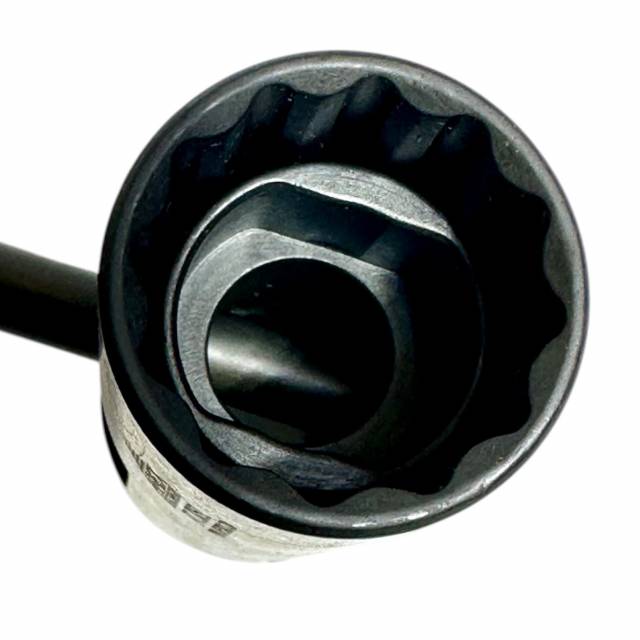

2. Position JDE92 Socket over Injector: Slide the JDE92 deep socket down over the top of the fuel injector body until it seats fully and squarely onto the retaining nut hex. *Verify the socket is seated 100% flush against the nut shoulder before applying torque.*
3. Break Loose Seized Retaining Nut: Attach a breaker bar or ratchet to the socket drive. Apply steady counter-clockwise rotational torque to break loose the carbon-bound retaining nut cleanly without side-loading.
4. Extract Injector & Clean Cylinder Head Bore: Lift the injector body out of the cylinder head bore. Remove the old copper sealing washer. Scrub the lower injector seating bore thoroughly using a brass bore brush and solvent, ensuring all carbon scale is removed from the copper washer landing.
5. Install New Washer & Torque to OEM Specs: Install a fresh copper sealing washer onto the new or remanufactured injector nozzle. Lower the injector into the clean head bore, thread the retaining nut by hand, and slide the JDE92 socket back over the assembly. Torque the nut smoothly to John Deere factory foot-pound specifications using a calibrated torque wrench. Reconnect fuel lines and bleed the fuel system.

---
