Concentric Deep-Well Fuel System Access: Why the JDE92 Socket is Mandatory for John Deere Engine Overhauls
Eliminate rounded injector nuts and protect fuel line fittings during John Deere agricultural engine service.
Servicing or replacing fuel injectors on John Deere agricultural, construction, or forestry equipment? Attempting to remove recessed fuel injector retaining nuts on John Deere PowerTech 3029, 4045, 6068, or legacy 6466/6619 engines using standard shallow sockets or open-end wrenches introduces severe service hazards. Off-axis wrench angle rounds off injector retaining hexes, crushes delicate leak-off line fittings, and damages fuel delivery lines. The JDE92 Heavy-Duty John Deere Injector Socket features a deep, precision-machined clearance profile engineered specifically for John Deere engine cylinder heads, providing 100% straight-line engagement to torque and remove injectors cleanly without component distortion.
The Critical Mechanics of Deep-Well Injector Retention & Fuel System Integrity
Heavy-duty John Deere diesel engines—powering tractors, combines, excavators, and generators across the 300, 400, and 600 series platform families—feature mechanical and electronic injectors seated deep within narrow cylinder head wells. To maintain a tight combustion seal and prevent high-pressure fuel leaks, injector retaining nuts require precise torque application during installation. Over thousands of operating hours in harsh agricultural and industrial environments, heat cycling, carbon accumulation, and fuel varnish bake these retaining nuts tightly into the cylinder head threads. When mechanics attempt removal using generic sockets or improvised pliers, the lack of proper side-wall clearance causes the tool to ride up on the soft hex corners. Under heavy torque, the socket slips, rounding off the fastener lands and shearing delicate return line nipples on the injector body. A stripped injector nut locked deep inside a cylinder head well turns a simple routine fuel system service into a costly, multi-day repair requiring cylinder head removal or machine shop extraction. The JDE92 Injector Socket completely eliminates these maintenance traps. Precision-machined from high-strength impact-grade alloy steel, this specialized deep-reach socket fits squarely over John Deere injector bodies, clearing surrounding fuel lines and valve train components. Its reinforced wall structure absorbs high break-out torque without flexing, distributing force uniformly across fastener hex faces to guarantee safe, slip-free injector removal and accurate OEM torque seating every time.
- Broad John Deere Engine Platform Coverage – Purpose-built specifically for John Deere 3029, 4039, 4045, 6059, 6068, 6076, 6081, 6101, 6466, and 6619 diesel engines.
- Deep-Well Precision Clearance Profile – Reaches recessed fuel injectors located beneath narrow cylinder head wells and rocker covers without binding.
- Zero Fastener Rounding Guarantee – Precision hex geometry grips injector nuts uniformly across maximum surface area to prevent rounded corners and stripped threads.
- Impact-Ready Heavy-Duty Alloy Construction – Built from high-tensile forged steel to withstand continuous daily use in agricultural dealerships and heavy equipment repair stalls.
- Lightweight Service Tool Design – Weighing only 0.60 lbs, this compact socket is an essential addition to any field service truck or mobile mechanic kit.
Stop Stripping Injector Nuts. Command Total John Deere Fuel System Service Precision.

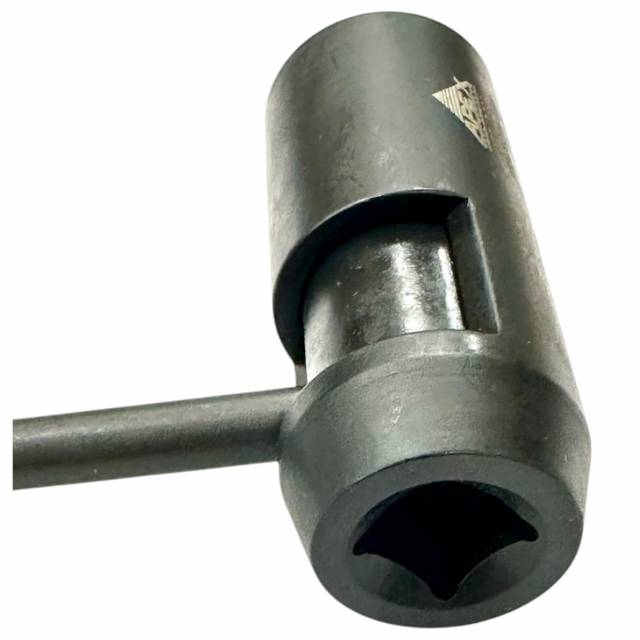

The JDE92 John Deere Injector Socket – 3029, 4039, 4045, 6059, 6068, 6076, 6081, 6101, 6466, 6619 is an indispensable capital asset for agricultural equipment technicians, John Deere service centers, construction fleet mechanics, and diesel overhaul shops. Protect high-value fuel injectors, ensure leak-free operation, and service John Deere engines with complete mechanical authority using Apex tools.
Deep-Well Precision Steel Socket. Protect John Deere Fuel Injector Assemblies.
Order the JDE92 Injector Socket – $90.00Technical Specifications
| Technical Metric | Value / Fitment Reference Guidelines |
|---|---|
| Target Engine Platforms | John Deere 3029, 4039, 4045, 6059, 6068, 6076, 6081, 6101, 6466, & 6619 |
| Primary Operational Function | Non-destructive removal and torque-installation of deep-seated fuel injectors |
| Specialty Tool Cross Reference | JDE92 (JDE92 / ATC303-JDE92 / ATCJDE92) |
| Part / Model Reference Number | JDE92 |
| Construction Metallurgy | High-tensile forged and precision-machined impact-grade tool steel |
| Total Package Shipping Weight | 0.60 lbs (Compact, professional service tool) |
