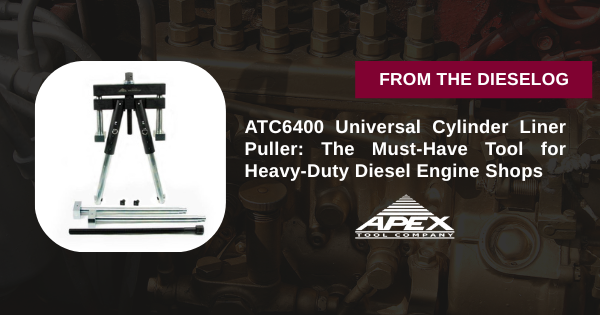

ATC6400 Universal Cylinder Liner Puller: The Must-Have Tool for Heavy-Duty Diesel Engine Shops

Stuck wet liners destroy shop efficiency. Hammering, prying, or using improvised pullers damages blocks, wastes hours, and costs thousands in repairs. The ATC6400 Universal Cylinder Liner Puller is engineered for professional diesel engine rebuilders—handling wet liners from 4″ to 6¼″ bore and up to 15″ depth on Caterpillar, Cummins, Mack, Detroit, Volvo, International, and Navistar engines. This is the PT-6400-C replacement trusted by fleet shops, dealerships, and independent diesel mechanics worldwide.

Why Diesel Shops Need a Dedicated Wet Liner Puller

Wet cylinder liners are press-fit into engine blocks with coolant seals that corrode over time. Removing stuck liners without proper tooling causes:

• Block damage – Cracked counterbores, scored decks, ruined seal surfaces
• Liner destruction – Bent, cracked, or broken liners requiring replacement
• Wasted labor – Hours of prying, heating, and hammering
• Safety hazards – Flying debris, pinched fingers, back injuries
• Costly comebacks – Improper removal leads to coolant leaks and engine failure

The ATC6400 eliminates these problems with spring-loaded puller arms that grip liner walls evenly, a heavy-duty screw drive that applies controlled extraction force, and a low-profile design that works in tight engine compartments.

ATC6400 Specifications: Built for Heavy-Duty Diesel

Engine Compatibility: One Tool, Dozens of Applications

The ATC6400 works on the most popular heavy-duty diesel platforms in North America:

• Caterpillar
  3176, 3196, 3300 Series, 3400 Series, 3500 Series, C10, C12, C15, C16
• Cummins
  ISX, ISM, N14, M11 (except L10 and C series)
• Mack
  E7, MP7, MP8 engines
• Volvo
  D11, D12, D13, D16 engines
• Detroit Diesel
  Series 60, DD13, DD15, DD16
• International/Navistar
  MaxxForce DT, DT360, DT466, DT530, DT570, HT570

Step-by-Step: Removing Wet Liners with ATC6400

1. Drain coolant – Remove all coolant from block and liner cavities.
2. Remove cylinder head – Follow OEM procedure; store hardware safely.
3. Clean liner top – Remove carbon, rust, and debris from liner lip.
4. Insert ATC6400 – Lower puller into bore; spring-loaded arms auto-grip liner wall.
5. Position support legs – Adjust long legs to rest on block deck surface.
6. Attach impact wrench – Connect to 1-1/8″ hex drive screw.
7. Extract liner – Apply steady upward force; liner lifts cleanly from block.
8. Inspect bore – Check counterbore, seal surfaces, and block for damage.
9. Repeat for remaining cylinders – Reposition and extract each liner.

ROI: The ATC6400 Pays for Itself Immediately

Pro Tips: Liner Removal Best Practices

ATC6400 vs. Competitors: Why Shops Choose Apex

Clean Liner Extraction = Profitable Engine Rebuilds
