A single rounded injector nut on a 6068 can turn a 90-minute job into a 6-hour disaster — and a $90 socket into a $3,000 repair bill. Here's why the right tool is the only tool.

The Real Cost of Using the Wrong Socket on a John Deere Injector

Every diesel technician knows the moment: you're three hours into a top-end job on a 6068, the injector won't budge, and you reach for a 12-point deep socket that "feels close enough." Three minutes later, the retaining nut is rounded, the injector body is scarred, the fuel line seat is compromised, and you're staring at a teardown that just doubled in cost. John Deere injectors aren't standard hardware — they sit deep in the head, surrounded by high-pressure fuel lines, return rails, and valve cover studs. The clearance is tight, the engagement window is narrow, and the torque required to break them loose is significant. A generic socket fails on all three counts.

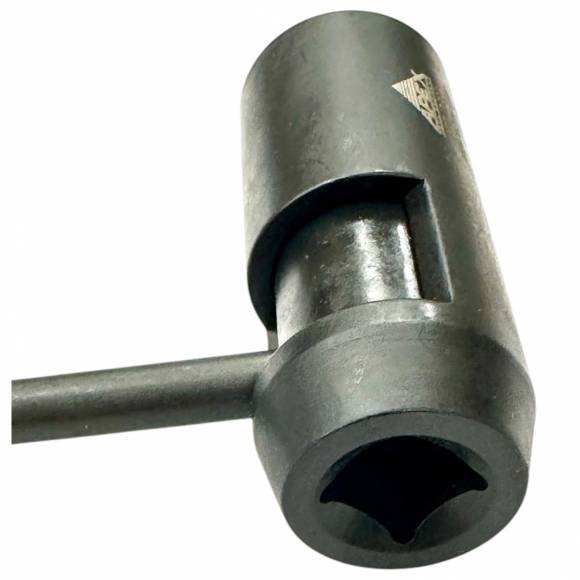

• Engineered for Deep-Recess Engagement: The ATCJDE92 features a precision-machined deep profile that reaches injectors buried inside the cylinder head bore — exactly where standard sockets bottom out or wedge against fuel line fittings.
• Multi-Engine Coverage Across the Deere Lineup: One socket services the 3029, 4039, 4045, 6059, 6068, 6076, 6081, 6101, 6466, and 6619 — covering ag tractors, combines, skid steers, gensets, and industrial power units in a single SKU.
• Distributes Torque Evenly Across the Nut Flats: Proper geometry means the load transfers across the full face of the retaining hardware, not just two corners — eliminating the rounding that destroys reusable injectors.
• Impact-Ready, Heavy-Duty Construction: Built to handle the breakaway torque required on seized or carbon-locked injectors without splitting, cracking, or distorting under repeated impact gun cycles.
• Pays for Itself on the First Job: At $90, the ATCJDE92 costs less than a single replacement injector cup — and a fraction of a single new electronic injector. One saved injector pays for the tool ten times over.

Why Apex Industries Built the ATCJDE92 for the Long Haul

The ATCJDE92 John Deere Injector Socket was designed from the technician's perspective — built to engage Deere injector retaining hardware fully, transfer torque cleanly, and survive the abuse of daily shop work. This is not a one-and-done tool. It's a permanent addition to the diesel toolbox, the kind of specialty service piece you reach for on every Powertech rebuild for the next twenty years. When the alternative is a $3,000 repeat repair, the math writes itself.

Failure Modes That Destroy John Deere Injectors

Understanding how injector service goes wrong is the first step to making sure it doesn't. The most common failure mode is socket slip during breakaway. Deere injector retaining nuts can carry significant torque after years of heat cycling, and a socket that doesn't seat fully will cam out under impact, instantly rounding the hex. Once rounded, the injector becomes extraction-only — and extraction often means destroying the injector to save the head.

The second failure mode is lateral damage. Standard sockets with thick walls or aggressive chamfers will wedge against the surrounding hardware — fuel return lines, valve cover studs, glow plug harnesses — and apply lateral force to the injector body itself. Even a small amount of side loading can damage the injector's nozzle seat or the copper sealing washer below it, leading to combustion gas leaks that destroy the cylinder head bore over time.

The third — and most expensive — failure mode is improper torque on reinstallation. If the socket doesn't seat the nut squarely, the technician feels false torque on the wrench, walks away thinking the injector is properly clamped, and the customer comes back two weeks later with a misfire, a fuel leak, or a blown copper washer. The ATCJDE92's precision fit ensures the wrench is reading real load, not socket flex.

Real-World Case: A 6068 Combine Down at Harvest

Consider the scenario every ag tech has lived through: it's mid-October, a customer's 6068-powered combine is down with a fuel leak at the head, and there are three days left in the corn run. The injector needs to come out, the cup needs to be inspected, and the unit needs to be back in the field by morning. With the wrong socket, that job becomes a 14-hour fight with a rounded nut, a destroyed injector, a head pull, and a customer who lost half a season's revenue. With the ATCJDE92, the same job is a clean 90-minute pull, a $200 cup replacement, and a combine running by lunch. The difference between those two outcomes is a $90 socket.

This same logic applies across the Deere platform — 4045 skid steer engines pulled for cup replacement, 6101 industrial gensets serviced under contract, 6466 agricultural tractors getting injector cleanouts at 8,000 hours, and 6619 marine units dealing with saltwater corrosion on the retaining hardware. Every one of these jobs depends on clean engagement and clean torque transfer.

Where the ATCJDE92 Fits in Your Maintenance Schedule

John Deere's recommended service intervals for injector inspection vary by application, but on most Powertech engines, injector cup replacement and injector reseating becomes a recurring service item by 6,000 to 10,000 hours of operation. For fleet shops running multiple Deere units, that means injector service is not a once-a-decade event — it's a quarterly or monthly procedure depending on fleet size. The ATCJDE92 belongs in the dedicated diesel service drawer alongside your injector cup tools, your high-pressure fuel line wrenches, and your bore scope. It's not a tool you go looking for when you need it. It's a tool that lives in the box because it gets used every week.

Fleet-Level ROI: Why One Socket Saves Thousands

Run the numbers on a 20-unit fleet of Deere-powered equipment. At an industry average of one injector service event per unit every 18 months, that's roughly 13 injector jobs per year across the fleet. If even one of those jobs goes sideways due to a rounded nut or a damaged injector — at a conservative $1,800 per replacement injector plus 3 extra hours of labor at $150/hour — you've burned $2,250 on a single avoidable failure. The ATCJDE92, at $90, prevents that scenario across every job, every year, for the life of the tool. The payback period is measured in days, not years.

For independent shops servicing Deere customers on contract, the calculus is even sharper. A reputation for clean injector work — no comebacks, no warranty claims, no "we damaged the part during service" conversations — is worth more than the tool cost on the first job. The ATCJDE92 is the cheapest insurance policy in the toolbox.

Frequently Asked Questions

Q: Will the ATCJDE92 work on all the listed engine families, or are there variations between Powertech models?
The ATCJDE92 is designed to fit the injector retaining hardware common across the 3029, 4039, 4045, 6059, 6068, 6076, 6081, 6101, 6466, and 6619 platforms. While these engines span tractor, combine, industrial, and marine applications, the injector hardware geometry is consistent across the family.

Q: Is this socket impact-rated, or is it for hand-torque only?
The ATCJDE92 is built with impact-ready, heavy-duty construction. It's designed to handle breakaway torque from a pneumatic or electric impact gun without splitting or deforming.

Q: What drive size does the ATCJDE92 use?
The socket is built to standard service-grade drive specifications compatible with standard impact and torque tooling. Confirm specific drive details with the technical specs on the product page before ordering.

Q: Can I use a generic deep socket instead?
You can try, but you'll pay for it eventually. Generic deep sockets don't have the wall thickness or geometry to clear surrounding hardware on Deere heads, and they don't engage the retaining nut fully. The cost of one rounded injector buys this socket ten times over.

Q: Does this come with a case or a single tool?
The ATCJDE92 ships as a dedicated single-purpose injector socket. It's a specialty service tool, not a kit — built to do one job exceptionally well.

Q: Will Apex Industries ship this internationally?
Apex Industries ships across the continental US with free shipping on orders over $500. For international shipping, contact the team directly at 812-579-5478 or 800-365-2233.

Q: How fast can I get this tool?
The ATCJDE92 is in stock and ships from Apex Industries. Order before the cutoff and most US continental orders ship same-day or next-day.

Q: Is there a warranty?
Apex Industries stands behind every tool they sell. Reach out to the team at 812-579-5478 or 800-365-2233 for warranty and return information.

---
