Tech Guide: Detroit Diesel DD5 Flywheel Alignment
Installing a flywheel shouldn't be a struggle. Learn how to use the W936589021500 guide pins to ensure a perfect seat on your Detroit DD5 engine.
Why DD5 Guide Pins are Non-Negotiable
The crankshaft flange on Detroit engines is machined to extremely tight tolerances. If a heavy flywheel is tilted during installation, it can burr the centering hub or damage the bolt threads. This leads to vibration issues or bolt failure down the road. The W936589021500 alignment set provides a rail-like system that keeps the flywheel perfectly parallel to the crankshaft during the entire installation process.
Step-by-Step Installation Steps
- Flange Preparation: Clean the crankshaft flange and ensure no old sealant or burrs remain.

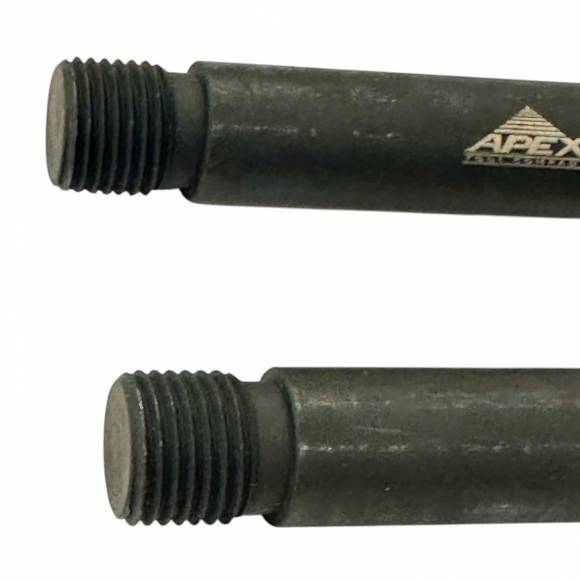

- Pins Installation: Thread the two W936589021500 guide pins into opposite bolt holes on the crankshaft.
- Flywheel Mounting: Lift the flywheel and slide the mounting holes over the guide pins. The pins will now support the weight.
- Initial Bolting: Install the remaining flywheel bolts and tighten them by hand to secure the position.
- Final Torque: Remove the guide pins, install the final two bolts, and proceed with the Detroit-specified torque sequence.
TECH TIP:
Always check for proper crankshaft end-play after the flywheel is seated but before the final torque. The guide pins make this verification much easier by ensuring the flywheel isn't "hung up" on the flange.
