Executing a valve overhead lash adjust or timing dual cams on a heavy block? Learn the proper technical sequence for mounting and spinning the crankshaft with the J-46392 barring sockets.

Why Direct Drive Sockets Outsmart Crowbars on Flywheels

The rotational resistance on a heavy-duty inline-six commercial diesel engine is immense, driven by high compression and multi-plate clutch weights. Trying to hand-turn the engine by prying unevenly against the starter flange hole applies a heavy asymmetrical side load to the housing. This unguided pressure can crack the aluminum bell housing or chip the hardened ring gear teeth. Chipped teeth are a major shop hazard—they can chew up the starter drive gear later, stranding the truck on the road. Utilizing a direct-mount, gear-profile barring tool like the ATC J-46392 inserts an explicit, multi-tooth mechanical lock into the loop, allowing a simple 1/2" drive hand ratchet to handle the engine rotation safely and effortlessly.

The 5-Step Crank Alignment & Lash Sequence

1. Locate and Clean the Inspection Port: Trace the lower flywheel bell housing underneath the truck block. Remove the primary inspection cover plate bolts to reveal the ring gear cavity. Wipe away old road grime or grease accumulation to clarify visibility.

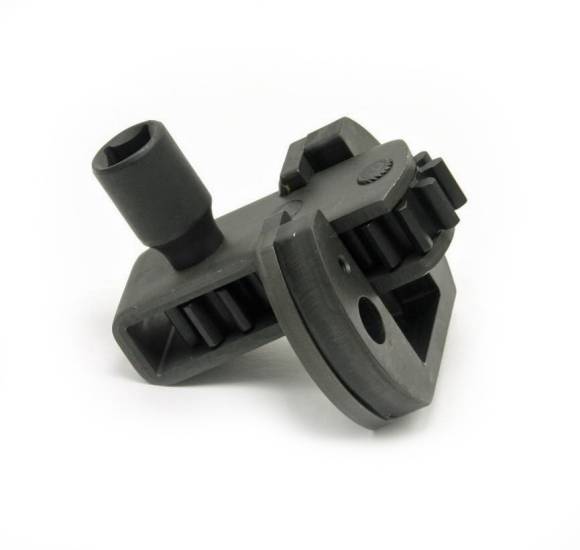

2. Insert the ATC J-46392 Sockets: Guide the specialized J-46392 engine barring tool directly into the port. Push the gear head forward until its precision-machined teeth interlock completely flat and square with the matching teeth of the flywheel ring gear.
3. Set Up Your 1/2" Hand Drive Tooling: Insert a long manual breaker bar or high-leverage 1/2" drive hand ratchet into the tool's center square socket receiver port. Avoid utilizing pneumatic impact wrenches, as violent air shocks can damage the housing paths.
4. Bar the Engine to Timing Marks: Rotate the hand tool steadily in the normal operational direction of engine rotation. Keep your eyes centered on the timing sight port to capture your exact TDC firing alignment markers for valve lash or injector profiling passes.
5. Lock Down and Verify Settings: Hold the breaker bar stationary to freeze engine rotation while completing your overhead valve adjustments. Once your calibration passes clear all cylinders, pull the tool from the inspection port and bolt the protective access plate back down securely.

---
