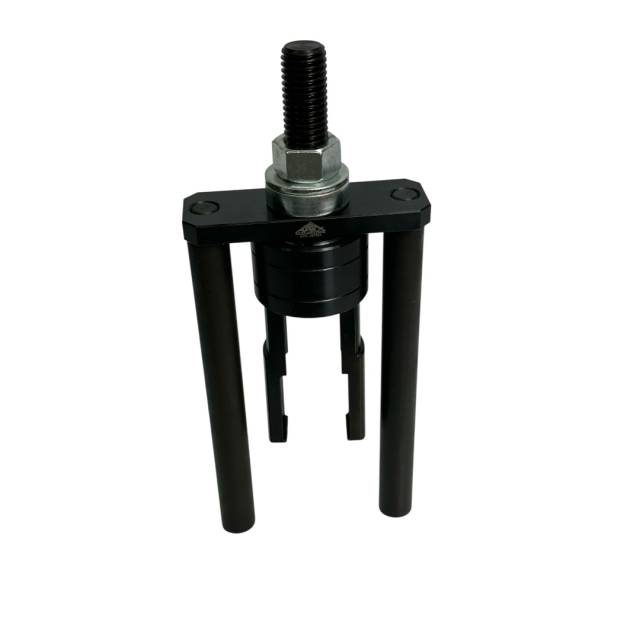

Removing amplified common rail fuel injectors on a heavy-duty Detroit Diesel DD13, DD15, or DD16 engine during an overhead tune-up or top-end overhaul? Attempting to pry out carbon-baked or heat-seized fuel injectors using crowbars, heel bars, or unguided slide hammers leads directly to snapped injector bodies, cracked solenoid housings, and scored cylinder head bores. The ATC J47391 Injector Puller delivers 100% parallel, linear extraction force to lift DD-series injectors cleanly out of cylinder head wells without casting or bore damage.

The Critical Physics of Detroit Heavy-Duty Engine (HDE) Fuel Injector Extraction

On modern Freightliner, Western Star, and commercial vocational trucks powered by Detroit Diesel Heavy-Duty Engine (HDE) platforms—spanning DD13, DD15, and DD16 engines—fuel injectors operate under extreme thermal stress and ultra-high rail pressures. Over hundreds of thousands of highway miles, hard carbon combustion blow-by, soot, and oil varnish pack tightly around the lower injector body lands, binding the injector securely inside the cylinder head bore. When fuel system diagnostics or top-end maintenance require injector replacement, attempting to pry under the injector body using wedge bars or heel bars creates severe repair hazards. Prying applies off-axis side leverage that tilts the injector body inside the tight head well. This galling action gouges vertical scratches into the precision cylinder head bore wall, compromising the seal landing for replacement O-rings and causing high-pressure compression blow-by or fuel contamination into oil galleries. Furthermore, side-prying snaps sensitive electronic harness connectors or cracks expensive cast-iron rocker deck structures. The ATC J47391 puller completely solves these service risks. Engineered as a direct functional equivalent for OEM tool code J-47391 (J47391 / W470589013300), this heavy-duty puller locks directly under the injector hold-down shoulder. By advancing its central forcing screw against a rigid bridge plate, the tool applies thousands of pounds of perfectly vertical breakout force down a dead-straight axis, pulling even the most severely carbon-locked DD-series injectors out smoothly in minutes.

• Targeted Detroit HDE Compatibility – Engineered specifically for electronic fuel injectors across Detroit Diesel DD13, DD15, and DD16 engine families.
• Direct OEM Special Tool Interchange – Precision aftermarket equivalent to Detroit Diesel factory tool part number **J-47391** (J47391 / W470589013300).
• Prevents Bore Gouging & Head Deck Cracking – Enforces 100% vertical, linear extraction force to eliminate off-axis bore scoring or connector damage.
• Effortless Carbon Breakout Performance – Threaded forcing screw bridge overcomes heavy carbon lockup and thermal binding without side-prying.
• Heavy-Duty Industrial Tool Steel Metallurgy – Weighing a solid 5.00 lbs, this structural shop tool module is built for daily professional use in high-volume diesel bays.

Stop Prying on DD Injectors. Command Total Detroit Diesel Top-End Accuracy.

The ATC J47391 Detroit Diesel DD13/DD15/DD16 Injector Puller is an essential capital asset for commercial truck repair shops, dealership service departments, fleet maintenance facilities, and heavy engine rebuilders. Eliminate cylinder head damage, protect injector cores, and extract injectors with complete mechanical authority using Apex tools.

Technical Specifications

Technical Metric	Value / Fitment Reference Guidelines
Target Engine Platforms	Detroit Diesel DD13, DD15, and DD16 Heavy-Duty Engines
Primary Operational Function	Damage-free, vertical mechanical extraction of carbon-baked fuel injectors
OEM Special Tool Cross Reference	Direct functional replacement for Detroit OEM # J-47391 / J47391 / W470589013300
Part / Model Reference Number	ATC J47391 (ATCJ47391 / J47391)
Construction Metallurgy	Precision-machined high-strength structural tool steel alloy
Total Package Shipping Weight	5.00 lbs (Substantial, heavy-duty shop tool steel assembly)

---
