Step-by-Step: How to Remove a Stuck Yoke with the ATC5700 Puller

By Blog Admin • November 17, 2025

How to Remove the Toughest Yokes in Under 5 Minutes with the ATC5700

<strong>ATC5700</strong> Removing Stuck Spicer SPL-250 Yoke in Real Shop

▲ Real-world action: SPL-250 yoke pops free in 4 minutes — zero damage

GET ATC5700 NOW – ONLY $180

In Stock • Same-Day Ship • Free Freight Eligible

Step-by-Step Photo Guide (Spicer • Meritor • SPL)

Step 1: Position the Legs

Slide the hardened pull legs behind both bearing caps. Ensure full contact on the yoke ears.

Fits 1 7/8″ to 2 3/16″ caps
No adapters needed

Step 1: Positioning <strong>ATC5700</strong> Legs on Yoke

Step 2: Applying 1 inch Impact to <strong>ATC5700</strong>

Step 2: Apply 1" Impact

Set your 1" impact gun to HIGH. The ATC5700 delivers 25,000+ lbs of force — yoke pops free instantly.

⚡ Pro Tip: Use short bursts to control release

Step 3: Inspect & Reinstall

Check yoke ears for damage. Clean. Install new U-joint. Job complete — no rework.

Reuse yoke 99% of the time
No heat distortion
Safe for aluminum yokes

Step 3: Clean Yoke Ready for New U-Joint

⚠️ SAFETY FIRST: Wear impact-rated glasses. Yoke can release with extreme force.

ADD ATC5700 TO CART – $180

In Stock • Ships Today • 14-Day Return

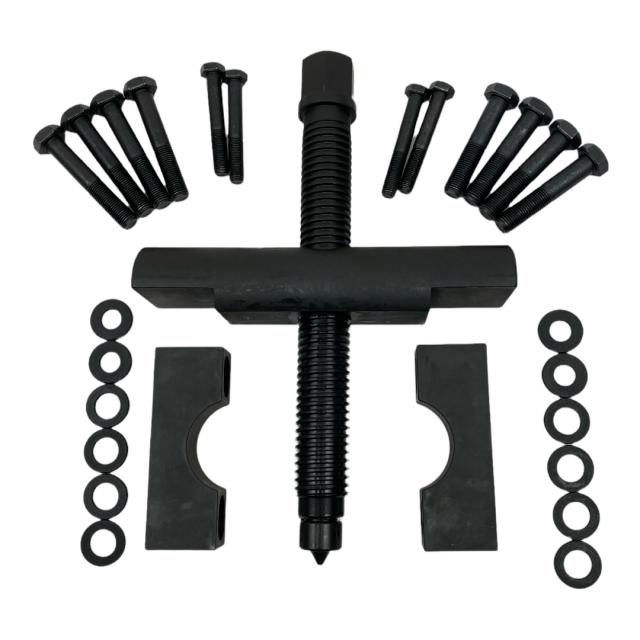

Full ATC5700 Specs

Feature	Specification
SKU	ATC5700
Replaces	Tiger Tool 10803
Pull Force	25,000+ lbs
Impact Required	1" Drive
Bearing Range	1 7/8″ – 2 3/16″
Price	$180.00
