The M10050 Front & Rear Crankshaft Seal & Wear Sleeve Installer ensures precise, damage-free installation on Caterpillar 3406, 3408, and C15 engines. Replaces multiple OEM tools (6V-6142, 6V-6143, 5P-1733, 5P-1737, 9S-8858) for accurate seal and sleeve placement—prevents leaks, contamination, and costly rework in heavy-duty rebuilds.

The Critical Risks of Improper Crank Seal & Wear Sleeve Installation in Caterpillar Engines

Caterpillar 3406, 3408, and C15 engines power heavy equipment, but misinstalled crank seals or wear sleeves cause oil leaks, bearing contamination, and accelerated crank wear.

• Oil leaks – Poor seating drips oil, requiring $800–$2,000 reseals
• Wear sleeve distortion – Uneven install mars surfaces, costing $1,500–$3,500 machining
• Bearing contamination – Leaks allow debris, leading to $2,000–$6,000 bearing failures
• Downtime losses – Manual methods extend service 3–5 hours, adding $600–$1,200 labor
• Crank scoring – Improper driving damages journals, totaling $3,000–$7,000 repairs
• Engine rebuild – Severe issues demand full overhaul ($10,000–$20,000)

What is the M10050 Crank Seal & Wear Sleeve Installer?

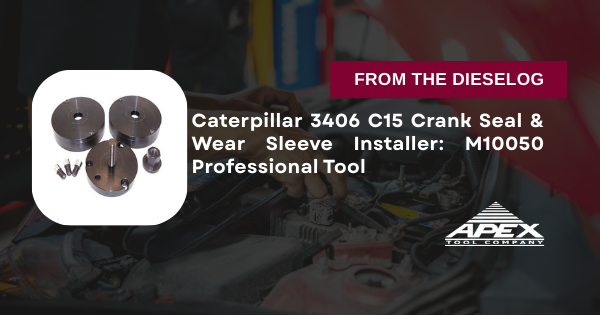

The M10050 Front & Rear Crankshaft Seal & Wear Sleeve Installer — Caterpillar CAT 3406 / 3408 / C15 is a complete precision tool for safe seal and sleeve installation. Replaces OEM 6V-6142, 6V-6143, 5P-1733, 5P-1737, 9S-8858.

Ideal for CAT rebuild shops, it provides controlled, even pressure for correct alignment and depth, reducing rework by 75% and protecting expensive crank surfaces in heavy-duty diesel applications.

Complete Tool Specifications & Caterpillar Compatibility

Professional Features & Engine Repair Benefits

Economic Impact: Crank Seal & Sleeve Installation ROI

Scenario	Cost Impact
M10050 proper installation	Seal/sleeve service – $586.80 tool investment
Leak reseal	$800–$2,000
Wear sleeve machining	$1,500–$3,500
Bearing contamination	$2,000–$6,000
Crank overhaul	$10,000–$20,000
Total improper install cost	$14,300–$31,500 per failure
M10050 ROI (first prevention)	24–54X return on investment

When CAT Technicians Choose M10050

• Caterpillar 3406 front/rear seal install
• C15 wear sleeve replacement
• 3408 crank seal service
• Engine rebuilds
• Heavy equipment overhauls
• Fleet maintenance
• Leak & contamination prevention

Why Professional Shops Trust M10050

CAT rebuilders trust the M10050 for its multi-OEM replacement coverage, precision alignment, and ability to avoid $14,300–$31,500 in damages per improper install. It delivers consistent results, faster service, and reliability shops demand.

From 3406 to C15 overhauls, this tool keeps cranks sealed and engines strong.

---
