Caterpillar 3406 C15 Crank Seal & Wear Sleeve Procedure: M10050 Professional Guide

By Blog Admin • January 27, 2026

This 12-phase procedure uses the M10050 installer to install front/rear crankshaft seals and wear sleeves on Caterpillar 3406, 3408, and C15 engines. Ensures correct alignment, depth, and sealing for leak-free performance.

M10050 Caterpillar crank seal wear sleeve installation procedure step-by-step

Introduction: Essential Crank Seal & Wear Sleeve Installation for Caterpillar Engines

Accurate seal and sleeve installation in 3406/C15 prevents oil loss. The M10050 provides controlled pressure—critical for durable repairs.

Phase 1-3: Preparation & Old Seal/Sleeve Removal

Secure engine and drain oil – Jack stands
Remove flywheel/housing – Access crank
Extract old seal/sleeve – Use proper puller
Clean flange & carrier – Remove debris
Inspect crank surface – Note scoring

Phase 4-6: Seal & Sleeve Preparation & Install

Lube new seal/sleeve – Even coating

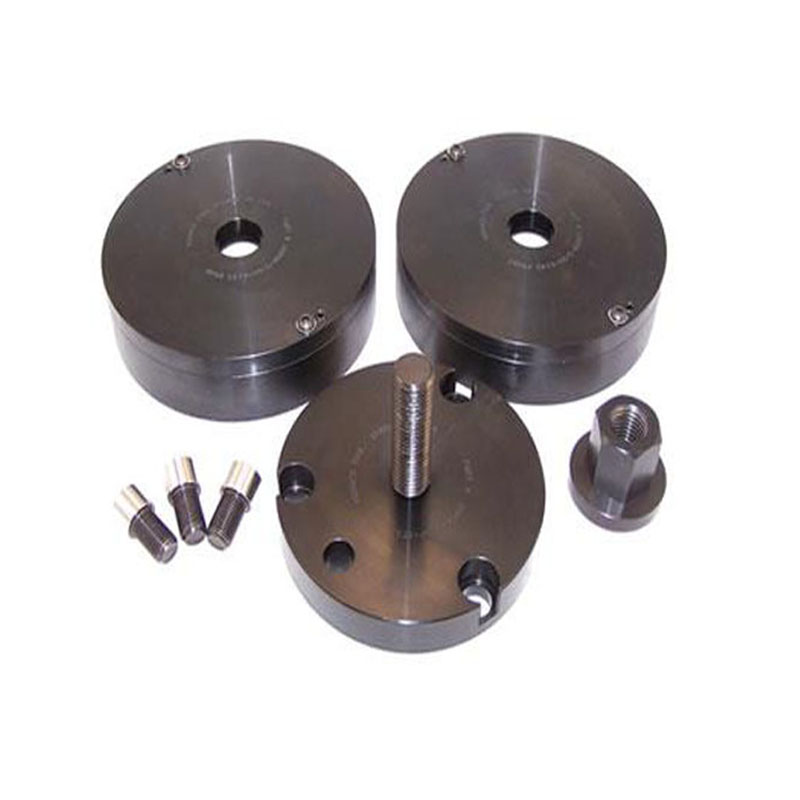

Position on M10050 installer – Align square
Apply controlled force – Even pressure
Seat to correct depth – Flush or spec
Verify alignment – No cocking
Repeat for front/rear – Consistent

Phase 7-9: Reassembly

CRITICAL: M10050 Installation Setup

Reinstall flywheel/housing – Torque spec
Refill oil – Check level
Prime system – No air
Document install – Depth/torque
Clean tools – Store properly
Check for leaks – Initial run

Phase 10-12: Testing & Finalization

Start idle test – Monitor leaks/noise
Road/operate test – Verify no drip
Final inspection – Clean/no leaks
Schedule follow-up – At 1,000 hours

Critical Safety Warnings: Crank Seal/Sleeve Procedure

MUST AVOID THESE FATAL ERRORS:

❌ Never uneven pressure – Distorts sleeve ($1.5K+)
❌ Never unclean flange – Contam ($2K+)
❌ Never pry/hammer – Scores crank
❌ Never dry install – Tears seal
❌ Never omit depth check – Leaks
❌ Never ignore PPE – Tool risks

Professional Service Documentation

Service Phase	Documentation Required	Complete?
Pre-Service	Crank inspection, seal/sleeve condition	□
Installation	Depth verification, tool notes	□
Reassembly	Torque values, photos	□
Testing	Leak results, performance	□
Final Approval	Signature, warranty log	□

Why M10050 Outperforms Improvised Methods

Risky Improvised Methods:

❌ Pry/hammer → Sleeve distortion ($1.5K+)
❌ Uneven force → Leaks
❌ 3–5 hour struggles → Labor losses
❌ Misalignment → Contamination
❌ No tool → Failures

M10050 Advantages:

✅ Multi-OEM replacement
✅ Precision alignment
✅ 75% less rework
✅ Crank protection
✅ Protects $14,300–$31,500
✅ Heavy-duty
✅ Front/rear coverage
✅ Shop proven

Install Seals & Sleeves Professionally. Preserve CAT Cranks. Maximize Engine Life.
