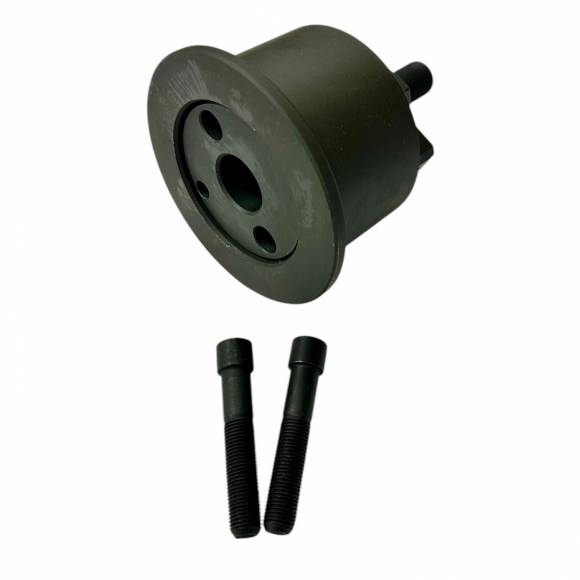

A front crankshaft seal that fails after install isn't a parts problem — it's a tool problem. The 99346252 / 380000666 Front Crankshaft Seal Installer is the difference between a leak-free F4A engine and a comeback ticket six weeks down the road.

The Real Cost of a Bad Front Seal Install

A front crankshaft seal looks like a $40 rubber part — until it fails. Once that lip rolls, distorts, or seats unevenly, oil starts walking down the timing cover, contaminating the front belt, soaking the harmonic balancer, and dripping onto whatever sits below. On an Iveco, New Holland, or Case F4A engine, a comeback for a leaking front seal isn't a quick fix — it's a complete teardown of the front cover and timing assembly. The labor swallows the original repair profit and then some. Use the wrong driver, and you're paying twice.

• Square-to-Bore Installation: The 99346252 keeps the seal perfectly perpendicular to the housing bore — no cocked seals, no uneven sealing pressure around the crank hub.
• Exact Depth Control: Engineered stop face seats the seal to OEM depth every time, so the lip rides on a fresh, unworn section of the crankshaft sealing surface.
• Lip Protection: The pilot guides the seal lip over the crank journal without folding, rolling, or scoring it on the keyway edge.
• Even Force Distribution: Pressing surface contacts the seal's outer metal carrier — never the rubber — so the elastomer never deforms during install.
• Built for Professional Shops: Hardened steel construction, 6.40 lb service weight, dimensionally matched to the F4A timing cover bore — no improvising, no shop-built sleeves.

$325 of Tool. Thousands of Dollars of Comebacks Avoided.

The math on this tool is brutal in the shop owner's favor. A single front seal comeback on an F4A — front cover off, timing inspection, new seal, fresh sealant cure time, reassembly, road test — is easily 4 to 6 hours of door-rate labor plus parts. Multiply that by the number of F4A engines a fleet shop sees in a year, and the 99346252 Front Crankshaft Seal Installer pays for itself on the first job. Every job after that is pure margin protection.

Why F4A Front Seals Are Unforgiving

The F4A platform — used across Iveco light commercial, New Holland agricultural, and Case construction equipment — runs the front crankshaft seal directly in the timing cover or front housing. That seal sees continuous oil bath on the inside, atmospheric grit and pressure-washer spray on the outside, and the constant rotational stress of the crank hub spinning at engine speed. There's no margin for a seal that's even slightly cocked or sitting 0.5 mm too deep.

F4A engines are also high-duty-cycle. They run agricultural PTO loads, vocational truck cycles, and sustained construction equipment hydraulic demand. Front bearing oil-throw rates are aggressive, and any imperfection in the seal-to-bore interface becomes a leak path within the first 50 hours of operation. The 99346252 / 380000666 was engineered specifically for this seal geometry — not adapted from a generic SST set.

The Five Failure Modes a Bad Install Creates

Every shop has seen these. Most assume it's a defective seal. It almost never is.

• Lip Roll: When a generic driver pushes the seal in without piloting the lip over the crankshaft snout, the rubber edge folds inward. The seal looks fine externally but leaks within minutes of startup.
• Depth Error: Pushed too shallow, the lip rides on the worn portion of the crank journal where the previous seal cut a groove. Pushed too deep, the seal interferes with the timing cover internal geometry.
• Cocked Seating: Hammering one side of a seal in tilts it 1–3 degrees. That's enough to break the static seal between the metal carrier and the housing bore.
• Carrier Distortion: Pressing on the rubber rather than the steel outer carrier crushes the elastomer profile. The seal never relaxes back into its sealing geometry.
• Garter Spring Displacement: A folded lip can dislodge the garter spring inside the seal. Once that's out of position, the lip has no constant-radial-load mechanism — and the seal leaks the moment oil pressure builds.

Real-World Shop Scenario: The Comeback That Wasn't

A fleet shop in the Midwest replaces front crankshaft seals on roughly 30 F4A-equipped New Holland tractors and Case skid steers per year as part of front-end timing service. Before the 99346252, that shop saw a 1-in-7 leak rate on freshly installed seals — about 4 comebacks annually. Each comeback consumed 5 hours of labor at a $145/hr door rate plus the seal, gasket, and sealant cost. That's roughly $3,000 a year in absorbed warranty work, before factoring customer trust damage.

After standardizing on the 99346252 / 380000666 installer, that comeback rate dropped to zero across two consecutive service seasons. The tool's $325 cost was recovered before the second F4A repair was finished. Everything after that is direct labor margin recovered — and a customer base that doesn't get a second oil-leak phone call.

Where the 99346252 Fits in the Service Schedule

The front crankshaft seal isn't a standalone replacement item — it's part of every major front-end service on F4A engines. Anytime the timing cover comes off, the seal must be replaced. That means this tool earns its keep during:

• Timing belt or timing chain service intervals
• Front main bearing replacement
• Harmonic balancer replacement following crank-snout wear
• Front cover gasket replacement on oil-leak diagnoses
• Complete engine rebuild and reassembly
• Water pump service where the front cover must be disturbed

Any one of those jobs done without a proper seal installer is a coin flip on whether the engine leaves the shop dry.

Fleet ROI: The Numbers a Shop Owner Cares About

If your shop does 12 F4A front-end services a year and historically sees a 10% comeback rate on front seal leaks, that's 1.2 comebacks annually. Each comeback at 5 labor hours plus parts conservatively costs $850 in absorbed work and $200 in customer-relations damage you can't put on an invoice. That's $1,260 a year of avoidable cost. The 99346252 erases that line item permanently. Over a 10-year tool service life, that's $12,600 of recovered margin against a $325 tool — a 38× return that doesn't include the operational benefits of consistent first-time-right repairs and a tighter, more reliable warranty profile across the shop.

Frequently Asked Questions

Q: Does the 99346252 work on all F4A variants across Iveco, New Holland, and Case?
Yes. The tool is dimensioned for the F4A engine platform's front crankshaft seal bore, which is shared across the Iveco light commercial, New Holland agricultural, and Case construction applications using this engine family.

Q: Can I use a generic seal driver kit instead?
You can, but the failure rate goes up dramatically. Generic kits don't pilot on the F4A crankshaft snout geometry, don't index off the correct depth shoulder, and risk lip damage during the install pass. The cost of one comeback is more than three times the price of this dedicated tool.

Q: Is this an OEM tool or aftermarket?
It carries dual part numbers — 99346252 and 380000666 — referencing the OEM specification used by Iveco/New Holland/Case service procedures for the F4A platform. Apex Industries supplies the professional-grade equivalent built for daily shop use.

Q: What does the 6.40 lb shipping weight tell me?
It tells you the tool is built from solid hardened steel — not stamped sheet or plastic. That mass is what gives you consistent, controlled press force and durability across thousands of installs.

Q: Do I need a press to use it, or does it work with a slide hammer / tap-in install?
The tool is designed for controlled tap-in or hand-press install. Its pilot-and-stop geometry is what does the precision work — the force application method is secondary.

Q: How do I know the seal is fully seated?
The 99346252 has a positive depth stop. When the tool bottoms against the housing face, the seal is at OEM depth. No measuring, no guessing, no shop tribal knowledge needed.

Q: Will I need this tool for both seal R&R and engine rebuild work?
Yes — any time the front timing cover comes off the engine, the front seal must be replaced. This tool is the standard install method for both routine seal service and full engine rebuilds.

Q: Does free shipping apply?
Free shipping applies on orders over $500 to the continental U.S. The 99346252 at $325 ships at standard rates, but pairing it with other F4A service tools easily clears that threshold.

---
