A leaking front crankshaft seal on a Volvo D13 or Mack MP8 doesn't just drip oil — it pulls a tractor off the road, contaminates the front end, and turns a routine job into a comeback. The ATC 88800501 is the difference between a one-and-done repair and an embarrassing call from the fleet manager.

The True Cost of a Bad Front Seal Install on a Volvo or Mack

When a front crankshaft oil seal fails on a Volvo MP7, MP8, D11, or D13 — or its Mack-badged equivalent — the consequences cascade fast. Oil weeps onto the front cover, runs down onto the serpentine belt, contaminates the harmonic damper, soaks the lower radiator hose, and eventually drips onto frame rails. Belts slip. Tensioners squeal. The cab fills with the smell of burning oil. And the truck comes back to your bay within 30 days. The root cause? Nine times out of ten, it's not a defective seal — it's how the seal was installed. Generic drivers, brass punches, and "tap it in with a socket" shortcuts distort the seal lip, cock it in the bore, or set installation depth wrong. The ATC 88800501 exists to eliminate that variable entirely.

• Eliminates seal lip damage — the #1 cause of premature front seal failure on MP7/MP8/D11/D13 platforms during reassembly.
• Sets correct installation depth on the first attempt, matching OEM specification for the Volvo/Mack timing gear housing geometry.
• Distributes pressing force evenly around the full circumference — no high spots, no cocked seals, no uneven contact with the wear sleeve.
• Saves shop labor hours by eliminating teardowns to fix a leaking seal that was just installed two weeks ago.
• Protects your shop's reputation — comebacks on a Class 8 truck are expensive, visible, and remembered.

The ATC 88800501: Engineered for One Job, Done Right

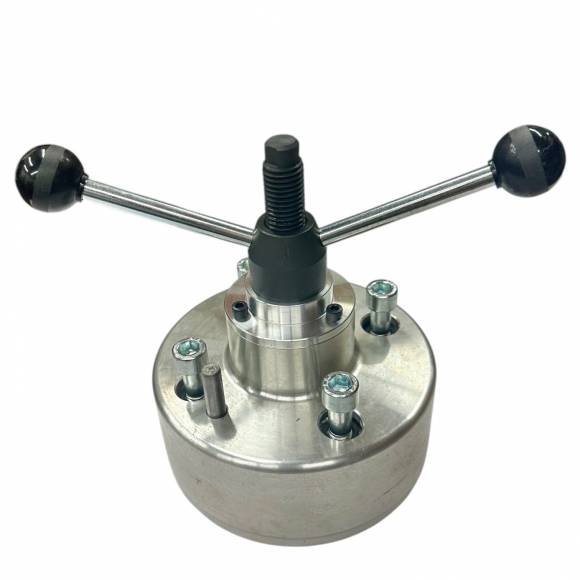

The ATC 88800501 Front Crankshaft Oil Seal Installer is a dedicated, application-specific service tool built around the exact dimensions of the Volvo and Mack front crankshaft seal bore. It seats against the seal's outer case, presses square to the timing gear housing, and bottoms out at the correct depth — every single time. This is not a universal driver kit. It is the right tool for the MP7, MP8, D11, and D13 front cover, and that specificity is what makes it worth $550 against the cost of a single comeback.

How Front Crankshaft Seals Actually Fail (and Why Generic Tools Cause Most of It)

Modern front crankshaft seals on Volvo and Mack heavy-duty diesels are typically PTFE or hydrodynamic lip designs running directly against a precision-ground crankshaft hub or wear sleeve. They rely on three things to seal: a perfectly round seal case pressed concentric to the bore, a lip that has not been folded, scored, or stretched during installation, and the correct stand-off distance from the crank centerline so the lip rides on a fresh, untouched section of the wear surface.

When a tech taps in a seal with a brass drift or a generic seal driver kit, three failure modes appear within the first 5,000 miles. First, lip distortion: an uneven push folds the lip backward, and once oil pressure builds, the fold becomes a permanent leak path. Second, cocked installation: the seal goes in 1mm deeper on one side than the other, creating uneven lip contact that wears in a localized stripe. Third, wrong depth: pushing the seal too deep places the lip on a worn portion of the crankshaft hub — instant leak, no fix without pulling the front cover again.

The ATC 88800501 mechanically prevents all three failure modes. Its bearing surface contacts the seal's outer steel case — never the lip. Its diameter matches the bore so the seal cannot cock. And its shoulder bottoms out at OEM depth, removing operator judgment from the equation.

Real-World Scenario: The $4,200 Comeback

Consider a real shop scenario. A 2018 Volvo VNL with a D13 comes in for a timing gear housing reseal at 540,000 miles. The tech replaces the front crank seal using a generic driver and a dead-blow hammer. The truck is released. Three weeks later it returns — oil drip in the customer's parking lot, complaint logged. The shop pulls the front end again: serpentine belt destroyed by oil saturation, harmonic damper rubber soaked, front cover gasket compromised by the second R&R. Total invoice the shop has to absorb: $4,200 in labor, parts, and a rental truck for the customer for two days.

The ATC 88800501 costs $550. It pays for itself the first time it prevents this exact scenario, and every install after that is pure protection. Multiply that across a fleet shop running three or four MP/D-series resealss a month and the ROI math becomes embarrassing.

Maintenance Schedule Context: When Front Seal Service Happens

Front crankshaft seal replacement on the MP7, MP8, D11, and D13 typically occurs during four service windows: scheduled timing gear housing reseal (usually 500,000–700,000 miles), front cover removal for water pump or oil pump replacement, in-frame or out-of-frame engine overhauls, and reactive replacement after a confirmed front seal leak diagnosis. In every one of these windows, the ATC 88800501 is the correct tool. There is no scenario where a Volvo or Mack front seal should be installed without it — the cost of getting it wrong is simply too high relative to the cost of doing it right.

Fleet-Level ROI: The Numbers Every Shop Owner Needs to See

Run the numbers at the fleet level. A medium-duty shop performing twelve front seal installations per year on Volvo and Mack platforms. Assume a 15% comeback rate using generic tools — historically conservative — that's 1.8 comebacks per year. Each comeback averages $2,800 in labor write-offs, parts replacement, and customer goodwill credits. Annual cost of comebacks: $5,040. The ATC 88800501 at $550 represents 11% of that annual loss. After year one, the tool is paid for and the comeback rate on properly executed installs drops to near zero. The remaining annual savings — roughly $4,490 — go straight to the bottom line, every year, for the working life of the tool.

Now scale that to a regional fleet maintenance operation running 30+ trucks. The math doesn't just favor buying the tool — it makes it negligent not to.

Frequently Asked Questions

Q1: Will the ATC 88800501 work on both Volvo and Mack-badged engines?
Yes. The MP7 and MP8 (Mack) and D11 and D13 (Volvo) share the same front crankshaft seal architecture and timing gear housing geometry. The ATC 88800501 is engineered to fit all four platforms.

Q2: Can I use this tool with a hand-driven approach or do I need a press?
The ATC 88800501 is designed to be used with controlled striking force — typically a soft-faced hammer applied evenly. Its geometry ensures even force distribution. A shop press is not required, but the tool itself enforces square installation regardless of strike technique.

Q3: Is this a one-time-use tool or built for repeat shop use?
Heavy-duty construction. This is a professional service tool intended for thousands of installations over its working life. Properly cared for, it will outlast multiple sets of hand tools in your box.

Q4: What happens if I install the seal too deep on these engines?
Installing too deep places the seal lip on a worn or grooved portion of the crankshaft hub or wear sleeve, leading to immediate or rapid leakage. The ATC 88800501 has a built-in shoulder that bottoms at correct OEM depth, eliminating this risk.

Q5: Do I still need to use sealant or assembly lube on the seal?
Follow the seal manufacturer's specification. Most modern PTFE-style front seals on these platforms are installed dry with no lube on the lip. Some lip-style seals require a light film of clean engine oil on the lip — never grease. The ATC 88800501 handles installation only; lubrication protocol is dictated by the seal you're installing.

Q6: Can this tool damage the timing gear housing?
No. The tool is sized to contact only the seal's outer case and its own bottoming shoulder — it cannot transfer striking force into the housing surface itself.

Q7: Does the ATC 88800501 ship with instructions?
The tool is designed for OEM-procedure-trained technicians. Use it in conjunction with the engine manufacturer's front seal installation procedure — the tool replaces the OEM seal installer called for in those procedures.

Q8: What's the warranty and return policy on this tool?
The ATC 88800501 is backed by Apex Industries' standard professional tool warranty. Contact the support line for full terms.

---
