Front engine service on Detroit DD13 and DD15 engines requires more than just wrenches. Learn how the J-47487 Cantilever Tool prevents component sag and timing errors.

The Necessity of Proper Counter-Balance

During the disassembly of DD13/DD15 front engine housings, technicians often encounter assemblies that are "heavy" on one side. Without the J-47487 support tool, these parts naturally want to tilt or drop as the last mounting bolts are removed. This "sag" can cause the gears to bind or, worse, result in microscopic damage to the mounting flange. The J-47487 provides the rigid support needed to keep the assembly perfectly neutral.

Using the J-47487 in Your Workflow

1. Positioning: Identify the support points on the front gear train or camshaft housing as specified in the Detroit service manual.

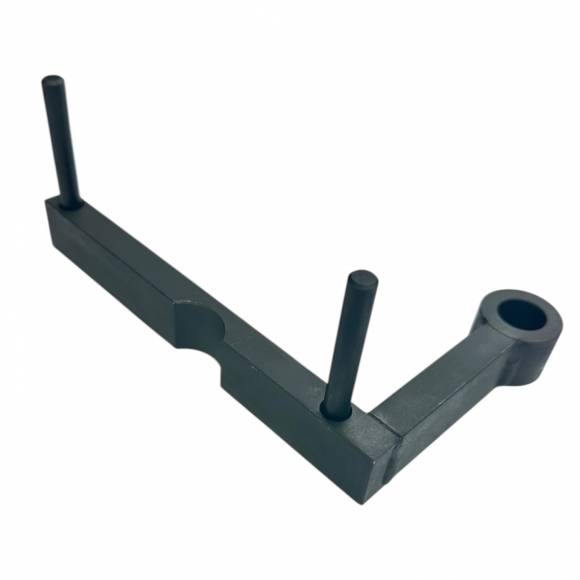

2. Tool Engagement: Install the J-47487 Cantilever Tool to bridge the gap between the block and the component.
3. Securing the Load: Ensure the tool is tensioned correctly to take the weight of the assembly before removing the primary mounting fasteners.
4. Service Execution: With the assembly stabilized, you can safely perform gear inspections, seal replacements, or camshaft timing procedures.
5. Reassembly Alignment: Use the tool to guide the component back into its home position, ensuring all bolt holes are perfectly concentric with the block threads.

---
