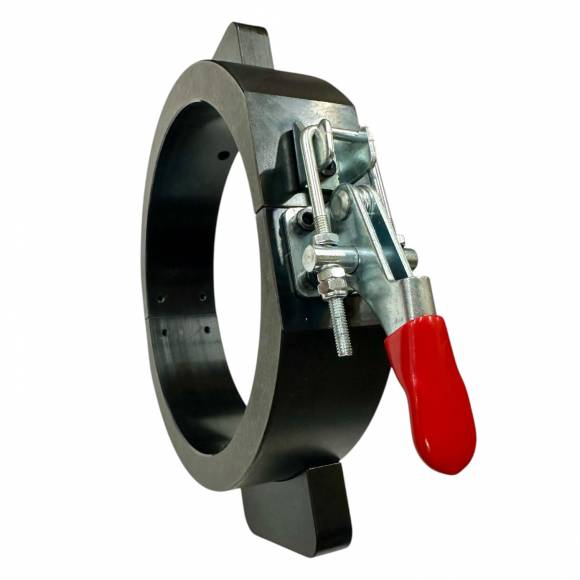

A single chipped ring or scored liner during piston installation can turn a $25,000 engine rebuild into a $40,000 disaster. The ATC W470589015900 / J47386 Piston Ring Compressor is the difference between a clean install and a comeback ticket.

The True Cost of a Failed Piston Installation

Every diesel rebuilder has heard the story — or lived it. A DD15 or DD16 in-frame goes back together on a Friday. Monday morning the truck fires up, runs for forty minutes, then drops a hole in a brand-new $1,800 piston. The post-mortem? A single hairline crack on a compression ring, traced back to a bargain-bin universal ring compressor that pinched the ring against the liner edge during installation. That single pinch turned a profitable rebuild into a warranty bloodbath: parts, labor, tow bill, customer credibility — gone in one shift.

• ✅ Even Ring Compression: Uniform 360° band pressure prevents the spotty squeeze that chips ring lands and cracks coatings before the piston ever sees the liner.
• ✅ Liner Edge Protection: Precision-machined ID matches DD15/DD16 bore geometry exactly — no scratching the liner crosshatch on entry.
• ✅ Engineered for High-Compression Pistons: Built specifically for the large-bore, tight-tolerance pistons used in DD15 and DD16 platforms — not a one-size-fits-nothing universal.
• ✅ Heavy-Duty Shop Construction: Built for repeat professional use. This isn't a one-rebuild throwaway — it's a tool that pays for itself across dozens of in-frames.
• ✅ OEM Equivalent to J47386: Direct cross-reference to the Detroit Diesel J47386 service tool — meets factory installation procedure requirements.

Why Universal Ring Compressors Fail on DD15/DD16

The DD15 and DD16 use a 5.47-inch bore with steel articulated pistons running compression ratios north of 18:1. The ring pack on these pistons is purpose-built for emissions compliance and cylinder pressure management — featuring tight axial clearances, specialized ring coatings (chrome, PVD, and DLC depending on the position), and narrow lands that don't tolerate the side-loading a universal band-style compressor inflicts. When you crank down a generic compressor on a DD15 piston, the ring tension isn't distributed evenly. One section grips harder than another, and as you tap the piston down with a hammer handle, the ring ends catch the liner chamfer, snag, and chip. You won't always see the damage. You'll feel it 200 hours later when the truck comes back making oil and burning coolant.

The ATC W470589015900 / J47386 eliminates that variable. It's a precision-bored sleeve sized for the exact OD of a fully-compressed DD15/DD16 ring pack, so when the piston enters the liner, the rings transition cleanly from compressor ID to liner ID with zero step, zero pinch, and zero edge contact.

Failure Modes You're Preventing

1. Chipped Ring Lands: The most common failure. A pinched ring during install fractures at the gap, sending a flake of cast iron or steel into the combustion chamber. The result is scuffed ring grooves, scored cylinder walls, and accelerated blowby. By the time it shows up on a leakdown test, you're pulling the head again.

2. Misaligned Ring Gaps: When ring compression is uneven, rings can rotate out of their staggered positions during entry. Aligned ring gaps create a direct blowby path past the piston — measurable as low compression on a cold cylinder test and visible as oil consumption from day one.

3. Cylinder Liner Scoring: A ring edge contacting the liner chamfer during entry leaves a longitudinal scratch in the crosshatch pattern. That scratch becomes an oil channel, and over the next 50,000 miles it polishes into a glaze that no honing job will fix without pulling the liner.

4. Damaged Ring Coatings: Modern DD15 top rings use PVD or DLC coatings designed for low friction and long life. Side-loading during install can crack these coatings microscopically. The damage doesn't show on inspection — it shows in premature wear and oil control failure at 300,000 miles instead of 800,000.

5. Bent Oil Control Ring Expanders: The three-piece oil ring assembly is especially vulnerable. A universal compressor that doesn't account for the expander spring tension can collapse the assembly unevenly, bending the expander and guaranteeing oil burning from the first start.

Real-World Case: The $14,000 Comeback

A Midwest fleet shop performed an in-frame on a DD15-powered Cascadia in early 2024. Using a generic ring compressor, the tech installed all six pistons in under two hours — fast work. The truck was delivered Friday. By Wednesday it returned with a misfire on cylinder 4, oil consumption of one quart per 800 miles, and a coolant intrusion code. The teardown revealed a chipped second compression ring on cylinder 4, scored liner walls on cylinders 2 and 5, and a collapsed oil ring expander on cylinder 6. Total damage: six new pistons, four replacement liners, a complete bearing set, all gaskets, and 38 hours of redo labor. Ticket total: $13,840 absorbed by the shop. The cost of a proper J47386-equivalent compressor? $330. The lesson was expensive but permanent.

Where This Tool Fits in the Rebuild Workflow

The piston ring compressor enters the workflow at the most expensive moment of the rebuild — after the block is decked, the liners are honed and torque-plated, the rod bearings are clearanced, and the pistons are pin-fitted to the rods. By the time you reach for the ring compressor, you have $8,000–$12,000 in parts and labor invested in that short block. This is not the moment to economize on a $30 universal sleeve. The compressor is the last line of defense between a precision-built short block and a customer's driveway. Every other tool in the rebuild — torque wrenches, ridge reamers, hone, plastigauge — exists to set the conditions for this one operation. Get it wrong and everything upstream is wasted work.

Fleet-Level ROI: The Math Every Shop Owner Should Run

Run the numbers across a 12-month service window. A mid-size diesel shop performing 8 DD15/DD16 in-frames per year has eight opportunities for ring-related failure. Industry comeback data on improperly installed piston assemblies sits between 4% and 7% — call it one comeback per year on the conservative end. Average comeback cost on a DD-platform engine including parts, labor, and tow: $9,000–$15,000. Annual exposure: $9,000 minimum. Cost of the W470589015900: $330, amortized across 80+ rebuilds over its service life — roughly $4 per engine. The comparison isn't close. This tool is not an expense, it's an insurance premium with a return measurable in tens of thousands.

Maintenance Schedule Context: When DD15/DD16 Need Pistons

Detroit Diesel's DD15 platform is rated for 1,000,000+ miles in line-haul service, but real-world piston and liner replacement intervals depend heavily on duty cycle, oil change discipline, and DPF/EGR system health. Stop-and-go vocational use, biodiesel blends, and extended oil drain intervals all accelerate ring and liner wear. Most fleets see major in-frame work between 750,000 and 1.1 million miles. With over a million DD15 engines in North American service and a steady aftermarket pipeline of cores being remanufactured, demand for proper installation tooling is constant. Any shop touching the DD platform will use the W470589015900 dozens of times across its working life.

Frequently Asked Questions

Q: Is the ATC W470589015900 a direct replacement for the Detroit Diesel J47386?
Yes. The ATC W470589015900 is the OEM-equivalent service tool, dimensionally and functionally identical to the J47386 specified in Detroit Diesel service literature for DD15 and DD16 piston installation procedures.

Q: Will this compressor fit DD13 pistons?
No. The DD13 uses a different bore diameter and piston ring pack geometry. The W470589015900 is sized specifically for the DD15 and DD16. Using it on a DD13 will not provide proper compression and may damage rings.

Q: Can one tech install pistons solo with this compressor?
Yes, single-tech installation is the standard procedure with this compressor. The tool is designed to hold ring compression independently while the tech taps the piston into the liner.

Q: How long does this tool last in a production shop?
With proper care — cleaning after each use, light oiling for storage, no impact damage — the W470589015900 will service 100+ engine builds. The tool body is heavy-duty steel construction designed for repeat professional use.

Q: Do I need any other special tools to complete a DD15 in-frame?
A complete DD15 in-frame typically requires a piston pin press tool, liner installer/puller, valve spring compressor, and the W470589015900 ring compressor. Apex Industries stocks the full Detroit Diesel service tool line.

Q: Is this tool covered by a warranty?
Yes. ATC tooling carries a manufacturer warranty against defects in materials and workmanship. Contact Apex Industries at 812-579-5478 for warranty registration and claim processing.

Q: Does it come with installation instructions?
The compressor follows standard Detroit Diesel J47386 procedure documented in DDC-SVC-MAN-0001 series service manuals. The tool is intended for use by trained technicians familiar with engine assembly procedures.

Q: Is free shipping available?
Yes. Apex Industries offers free shipping on orders over $500 within the continental United States. Single-tool orders ship at standard rates — call 800-365-2233 for expedited options.

---
