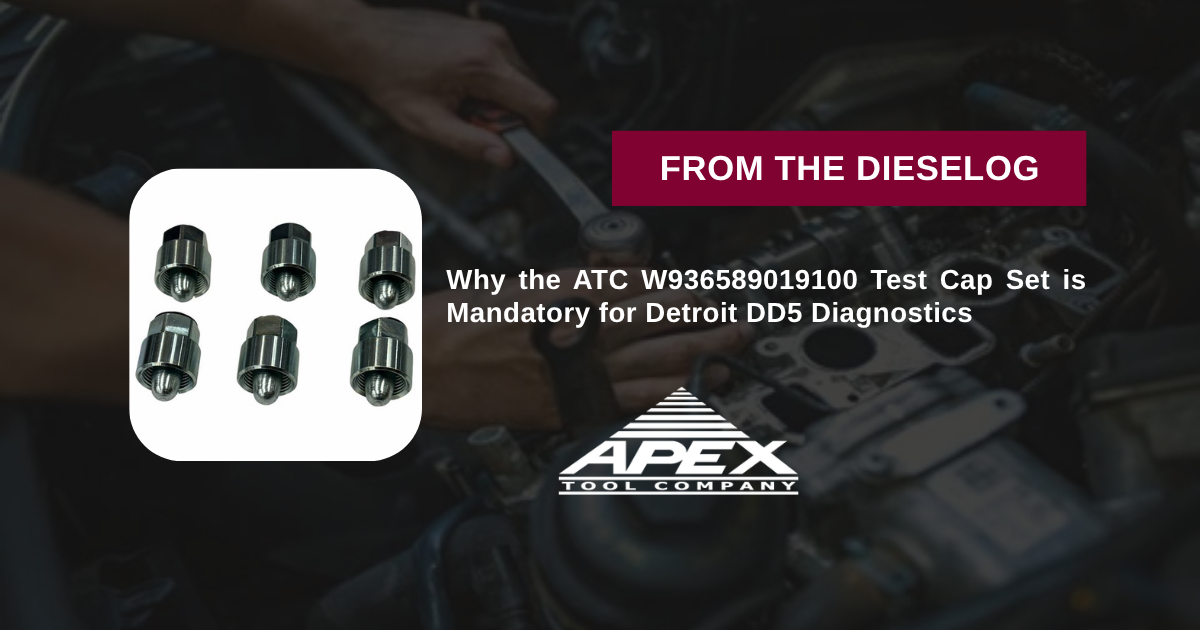

Diagnosing low fuel rail pressure fault codes, extended cranking times, hard starting, or power loss on Detroit Diesel DD5 engines? Attempting to locate high-pressure common rail leaks or bypass failures without isolating individual injector outlets forces technicians into expensive guesswork—frequently condemning costly high-pressure fuel pumps or entire fuel rails when the true culprit is a single leaking fuel injector. Operating under extreme common rail injection pressures exceeding 30,000 PSI, modern Detroit DD5 fuel systems require absolute sealing integrity during pressure decay and hold testing. Using improvised plugs, crushed old fuel line fittings, or generic brass caps risks dangerous high-pressure fuel sprays, thread stripping on precision rail ports, and internal fuel contamination. Included in the Detroit Diesel DD5 Essential Tool Program, the ATC W936589019100 High Pressure Fuel Rail Test Cap Set (Set of 6) provides a 0.80-pound precision-machined, high-tensile alloy steel diagnostic solution engineered to seal DD5 high-pressure rail outlets directly—allowing mechanics to cap off individual line ports, isolate the rail, perform pressure retention testing, and pinpoint leaking injectors with zero guesswork.

The Critical Physics of Common Rail Pressure Decay & Diagnostic Component Isolation

The medium-duty Detroit Diesel DD5 engine utilizes an advanced high-pressure common rail (HPCR) system where a single forged rail feeds fuel to individual electronically controlled injectors via high-pressure lines. When an internal injector control valve wears, cracked nozzle body develops, or rail pressure relief valve leaks, high-pressure fuel bypasses back to the return circuit. This internal pressure bleed prevents the system from building or maintaining required cranking rail pressure, setting fault codes and causing no-start conditions. Because all injectors share a common pressure manifold, identifying which specific cylinder is returning excessive fuel requires systematically capping rail outlets one at a time while monitoring engine cranking pressure data. The ATC W936589019100 Test Cap Set is engineered specifically for this process. Precision-machined to match Detroit OEM M14/M12 rail fitting threads and inverted cone seats, each cap threads directly onto the rail outlet port. Sealing a suspect port completely isolates that cylinder's fuel line and injector. If rail pressure recovers to spec during cranking with a cap installed, the technician has instantly confirmed a failed injector on that line—saving hours of diagnostic labor and preventing unnecessary pump or rail replacements.

• Targeted Detroit DD5 Engine Platform Coverage – Purpose-built specifically for high-pressure fuel rail testing and injector isolation on Detroit Diesel DD5 engines.
• Essential OEM Specialty Tool Interchange – Direct high-strength replacement for Detroit Diesel OEM specialty tool part number **W936589019100** (ATCW936589019100).
• Complete 6-Piece High-Pressure Cap Kit – Includes six precision-machined steel test caps to seal all rail outlets simultaneously or cap individual lines during systematic diagnostic isolation.
• Rated for Extreme Common Rail Operating Pressures – Engineered from high-tensile alloy steel with precision-mating flare seats to contain 30,000+ PSI pressure testing safely.
• Lightweight & Essential Service Asset – Weighing only 0.80 lbs, this essential diagnostic kit drops directly into field service trucks and master technician toolboxes.

Stop Guessing & Throwing Expensive Injectors. Command Total Detroit DD5 Diagnostic Precision.

The ATC W936589019100 Detroit Diesel DD5 High Pressure Fuel Rail Test Caps (Set of 6) is an essential capital asset for commercial truck repair centers, Detroit Diesel dealership diagnostic stalls, fleet maintenance depots, and mobile diesel field technicians. Prevent unnecessary component replacements, isolate internal fuel leaks, and verify Detroit DD5 fuel systems with complete mechanical authority using Apex tools.

Technical Specifications

Technical Metric	Value / Fitment Reference Guidelines
Target Engine Platforms	Detroit Diesel DD5 Commercial Medium-Duty Engines
Primary Operational Functions	High-pressure common rail isolation, pressure hold testing, and injector leak diagnosis
Specialty Tool Cross Reference	Direct OEM replacement for Detroit Diesel tool number W936589019100 (ATCW936589019100)
Kit Packaging Quantity	Set of 6 Precision Steel High-Pressure Fuel Rail Test Caps
Part / Model Reference Number	ATC W936589019100 (ATCW936589019100 / W936589019100)
Construction Metallurgy	High-tensile precision-machined heat-treated alloy steel with leak-free flare seats
Total Package Shipping Weight	0.80 lbs (Compact, essential service shop diagnostic tool set)

---
