A pinion seal that leaks twice isn't a seal problem — it's an installation problem. And on Eaton/Spicer heavy-duty axles, the wrong driver is almost always the reason it comes back.

The Real Cost of a Returning Pinion Seal

A drive axle pinion seal failure isn't a small annoyance. A weeping seal contaminates brake components, drips gear oil onto the driveway of every customer the truck visits, and — if it's bad enough — drops differential lube to dangerous levels. The labor to pull a driveshaft, retorque a pinion nut, and reseal an Eaton or Spicer axle is significant. When that exact same truck rolls back into the bay two months later with a fresh leak, the warranty hit doesn't just cost parts. It costs trust. And in nearly every comeback we've seen, the seal itself wasn't defective — the installation depth was wrong, the seal lip was nicked on the way in, or the driver was the wrong diameter and crushed the case.

• Eliminates seal cocking on installation — the #1 cause of premature pinion seal failure on Eaton/Spicer axles.
• Matches exact seal diameter and depth across 20+ years of Eaton/Spicer axle production variations.
• Distributes installation force evenly around the full circumference — no more lopsided seats that leak under load.
• Protects the sealing lip and garter spring during the press-in stroke — preserves the contact patch that keeps oil where it belongs.
• 11 application-specific drivers in one steel case — your tech grabs the right tool in seconds, not the closest tool on the bench.

Insurance for Every Eaton/Spicer Differential You Service

Think of the ATCSPI401 Pinion Seal Install Driver Kit the way a fleet manager thinks about a torque wrench: not as a tool, but as a guarantee. A $600 investment that protects you from a single $1,200 comeback has already paid for itself — and every Eaton/Spicer axle you service after that is pure margin protection. The kit ships in a durable steel storage case with 11 dedicated drivers organized by application, so the moment a Spicer DSP40, an Eaton 38DS, or a DD404P rolls in, your tech isn't hunting through drawers or hammering on a socket. They're seating the seal correctly the first time.

The Failure Modes a Universal Driver Can't Prevent

Universal seal drivers — the kind that come in a 20-piece set from a general tool catalog — work fine on light passenger-car seals where tolerances are forgiving. Heavy-duty drive axle pinion seals are a different animal. They run higher pressures, see significantly more shaft runout, and operate at sustained temperatures that punish any installation defect. There are four classic failure modes that follow incorrect driver use, and every shop that services Eaton/Spicer axles has seen all of them.

Failure Mode 1: Crooked seating. A driver that contacts the seal on only one side — or that's slightly undersized — will start the seal at an angle. Once it's set even a few thousandths off, the seal lip rides the shaft unevenly, wears a tapered groove, and leaks within a few hundred operating hours. The kit's application-specific drivers contact the seal case across its full outer edge, forcing it square to the bore from the very first hammer blow.

Failure Mode 2: Damaged seal lip. If a driver presses on the inner sealing lip instead of the outer case, the rubber deforms permanently and the garter spring loses its load. The seal will install, the seal will look fine, and the seal will weep oil within a week. Each driver in this kit contacts only the outer case — the lip and spring stay untouched.

Failure Mode 3: Wrong installation depth. Eaton/Spicer pinion seals are designed to sit at a specific depth relative to the yoke wear sleeve. Too shallow and the lip rides on a worn portion of the shaft. Too deep and the seal interferes with the oil slinger or bearing cone. The shoulders on each driver in the kit set the correct depth automatically — your tech can't drive it in too far.

Failure Mode 4: Cracked seal case. Metal-cased seals don't tolerate point loading. Strike them with a brass punch, a socket, or a too-small driver and you'll deform the case, lose the bore interference fit, and create an instant leak path between the seal OD and the carrier bore. The full-contact driver face in this kit eliminates point loading completely.

It's worth understanding why these failures cluster around installation rather than service life. Modern Eaton/Spicer pinion seals are engineered to operate reliably for hundreds of thousands of miles when installed correctly. The fluoroelastomer compounds used in the lips, the spring-loaded garter design, and the bore interference engineering are all proven technology. What actually limits service life in real-world fleets isn't the seal — it's the first 30 seconds of its installed existence. Get those 30 seconds right, and the seal lasts as long as the differential. Get them wrong, and no amount of additive package or shop quality control will save it. The ATCSPI401 is, in the most literal sense, a tool designed to make those 30 seconds repeatable.

Real-World Shop Scenarios

A fleet maintenance shop running 80 tractors with mixed Eaton DS/DT and Spicer DSP/DSH axles will see, on average, 15–25 pinion seal replacements per year. If even three of those come back as warranty re-leaks, the labor alone — roughly four hours per seal at full shop rate — wipes out the cost of the ATCSPI401 several times over. A repair shop servicing on-highway trucks for outside customers faces an even worse math problem: a single comeback doesn't just cost labor, it costs the next three jobs from that customer.

Consider a recent example from a regional shop in the Midwest: their tech was installing pinion seals on Eaton 38DS axles using a generic seal driver set. After six failures in eight months, they tracked down the root cause — the driver they were using was 0.060" smaller than the seal OD, allowing the seal to tilt during the final 1/8" of installation. The kit they bought to fix the problem was the SPI401. The comebacks stopped immediately.

Where This Kit Fits in a Real Maintenance Schedule

Pinion seal service isn't usually a scheduled item — it's a reactive one, triggered by a visible leak, low differential lube, or a yoke seal weep noted during PM. But once you're in there, the surrounding work always expands. Yoke replacement, U-bolt retorque, driveshaft phasing checks, and pinion nut retorque are all common companions to a seal swap. The faster and more reliably your tech can seat the new seal, the more time stays available for the rest of the job. A good driver kit isn't just about doing one task — it's about not letting one task balloon into a half-shift detour.

The kit also pairs naturally with proper pre-installation prep: a clean bore inspected for nicks, a wear-sleeved yoke if shaft surface is grooved, the correct gear oil specification, and a torque wrench for the pinion nut at OEM spec. Cutting corners on any of those will still cause a leak even with the right driver — but the driver is the one variable most shops actually control with a bench tool, and the SPI401 controls it correctly every time.

Fleet-Level ROI: The Math Every Shop Owner Should Run

At $600.00, the kit needs to prevent roughly 1.5 comebacks to pay for itself, assuming a conservative $400 in labor and indirect cost per repeat seal job. Most shops servicing Eaton/Spicer axles will see that payback inside the first 90 days. After that, every correctly-seated seal is a margin gain — and the kit lives in its steel case for the better part of a working career. There aren't many $600 line items in a shop's toolroom budget that protect this much downstream revenue.

The math gets even more compelling when you account for the second-order costs. A pinion seal comeback rarely arrives alone. By the time the leak is bad enough for a fleet to notice, differential lube has been dripping onto brake components, drivelines have been operating below recommended fluid levels, and bearing wear may have begun. The follow-on work — cleaning contaminated brakes, replacing bearings worn from low lube, addressing customer complaints — can easily turn a $400 comeback into a $1,500 conversation. A driver kit that prevents the original failure prevents the entire cascade.

For independent shops running on tight margins, the calculation is even simpler. One unhappy customer who tells the next three fleet managers about a leaking truck doesn't just cost a comeback — it costs the next pipeline of work. Driveline service is one of the most visible repair categories a customer pays for, because oil on the driveway is unmistakable. Doing it right the first time isn't just a quality standard, it's a marketing standard.

How the ATCSPI401 Compares to Universal Driver Sets

Walk into most shops and you'll find at least one generic seal driver set in the toolroom — usually a 20- or 30-piece kit with stepped aluminum or steel drivers that nominally cover "all standard seal sizes." For light-duty work, those sets are perfectly serviceable. For Eaton/Spicer heavy-duty pinion seals, they create more problems than they solve, and here's why.

Universal driver sets are built around standard nominal sizes — 1.5", 1.75", 2", and so on, in 1/8" or 1/16" increments. The drivers themselves are designed to contact a generic seal across whatever portion of the case happens to align with their stepped face. That works on shallow shaft seals where the seal sits in a forgiving bore and the rotational speed is modest. It does not work on a heavy-duty drive axle pinion seal that operates under sustained load, high shaft runout, and aggressive thermal cycling.

The ATCSPI401's drivers are engineered to specific Eaton/Spicer seal part numbers. Each driver's OD matches the seal case OD within a tight tolerance, and the depth shoulder is set to the OEM specification for that axle's seal pocket. There is no guesswork. There is no "close enough." The seal goes in square, it bottoms at the right depth, and the lip stays untouched. That precision is what separates a kit built for a specific OEM family from a kit built for "general shop use."

Even the storage matters. A universal kit usually ships in a plastic case where the drivers rattle together every time the case is moved, slowly nicking their working faces. A nicked driver face transfers that defect to every seal it installs. The ATCSPI401's steel case keeps each driver in a fixed location, protecting the faces from impact damage between jobs. Over a multi-year service life, that storage detail alone preserves the kit's accuracy.

What's in the Steel Case

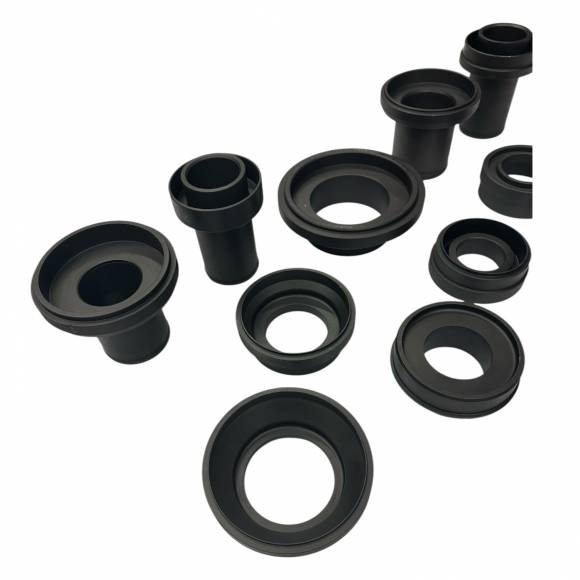

The ATCSPI401 ships as a complete 11-driver set in a durable steel storage case. Each driver is dedicated to a specific Eaton or Spicer pinion seal application, with the OD precision-machined to match the seal case and a built-in depth shoulder that prevents over-driving. The drivers are designed for use with a standard 2–3 lb dead-blow hammer; no additional tooling is built into the kit itself. The case keeps the drivers organized, identifies each one by its application slot, and travels comfortably between service bays.

What's deliberately not in the kit is just as important: there's no seal puller, no slide hammer, no torque wrench, no replacement seals. The SPI401 is purpose-built for the installation side of the procedure — the moment where most failures originate. Pairing it with proper removal tooling, a wear sleeve inventory for grooved yokes, and OEM-spec replacement seals gives a shop everything needed to handle pinion seal service from inspection through road test.

Ordering, Shipping, and What to Expect

The ATCSPI401 is currently in stock at apexinds.com at $600.00. Because the kit ships in its steel case with all 11 drivers, total shipping weight is 53.00 lbs — this is classified as a heavy item and is not eligible for the standard free freight promotion offered on lighter SKUs. Shipping cost is calculated at checkout based on delivery destination, and orders placed during Apex business hours (Mon–Fri 8 a.m. – 5 p.m. ET) typically ship same- or next-business-day. If you need to confirm axle coverage before ordering, or if you have a specific Eaton or Spicer axle model and want to verify a driver is included, call 812-579-5478 or 800-365-2233 and a driveline specialist will walk through the kit contents with you. This is a tool you buy once and keep — taking five minutes to verify fit before purchase is time well spent.

Frequently Asked Questions

Q: Which Eaton/Spicer axles does the ATCSPI401 cover?
The kit's 11 drivers cover the range of pinion seal diameters and depths used across Eaton and Spicer heavy-duty drive axles for the past 20+ years, including common DS, DT, DSP, DSH, and DD family axles. The included drivers are sized to OEM seal specifications.

Q: Is this a single-axle tool or a fleet shop tool?
Both. A single-axle independent rebuild benefits from getting the install right the first time. A fleet shop benefits from the volume of correct installs and the elimination of repeat warranty work. The kit is engineered for professional driveline service across multiple axle types.

Q: Can I use a universal seal driver set instead?
Technically, sometimes. Reliably, no. Universal kits don't match the exact seal OD or installation depth required by Eaton/Spicer specifications. The closest-fit driver in a universal set is rarely the correct one — and "close" is what causes seal cocking, leaks, and comebacks.

Q: Does the kit include a slide hammer or removal tool?
No. The ATCSPI401 is dedicated to installation. Seal removal should be performed with a proper seal puller or slide hammer attachment, taking care not to gouge the bore. Once the bore is clean, the kit handles the install.

Q: How is the kit stored and organized?
All 11 drivers ship in a durable steel carrying case with dedicated locations for each tool. This keeps the kit organized, portable between bays, and protected from impact damage — important for tools with precision-machined faces.

Q: Is this kit eligible for free shipping?
The SPI401 is a heavy item (53.00 lbs shipping weight) and is not eligible for the standard free freight promotion. Shipping cost is calculated at checkout based on destination.

Q: What's the lead time on the ATCSPI401?
The kit is currently in stock at apexinds.com. Orders placed during business hours (Mon–Fri 8 a.m. – 5 p.m. ET) typically ship same- or next-business-day.

Q: How do I confirm this is the right kit for my application?
Call Apex Tool Company at 812-579-5478 or 800-365-2233 with your axle model and serial number. A driveline specialist will verify the correct driver is included before you order.

---
