Step-by-Step: How to Safely Lift an ISX/X15 Cylinder Head with the ATC4919360 Bracket

Removing a 400+ lb ISX/X15 head without proper support is dangerous. The ATC4919360 mounts to factory bolt holes and lifts with perfect balance. This guide shows you how to do it safely.

---

Step 1: Prep the Head

Remove injectors, valves, and accessories. Clean mounting surfaces. Leave two head bolts in place for bracket attachment.

Step 2: Mount the Bracket

Align ATC4919360 with factory holes. Insert and torque bolts to 50 ft-lbs. Verify symmetry.

Step 3: Attach Hoist

Connect crane or hoist to pivoting eye. Take up slack slowly — head stays level.

Step 4: Lift & Store

Lift straight up. Guide head clear of block. Lower onto padded stand. Reverse for install.

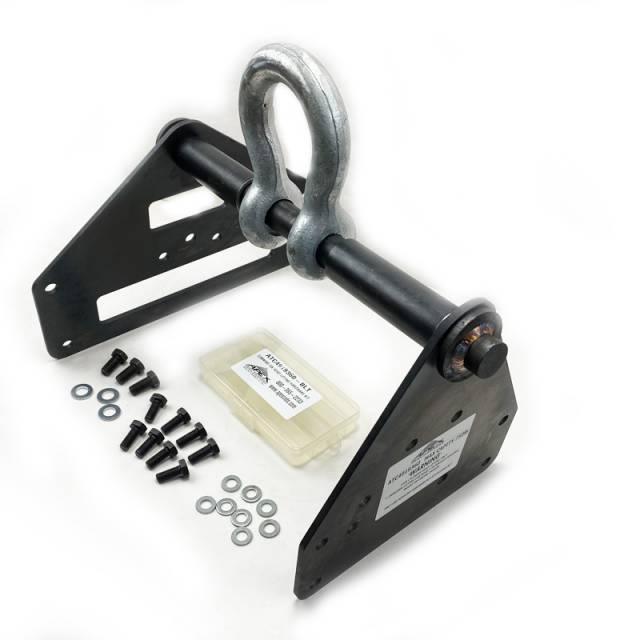

Tool Specs

Spec	Detail
SKU	ATC4919360
Engine Fit	ISX12 / ISX15 / ISX / X15
Replaces	Cummins 4919360
Capacity	750 lb
Material	Heavy-duty steel
Price	$450.00

---

Pair With This ISX Essential

ATC24MMISX-A Head / Main Bolt Socket

$62.00

---
