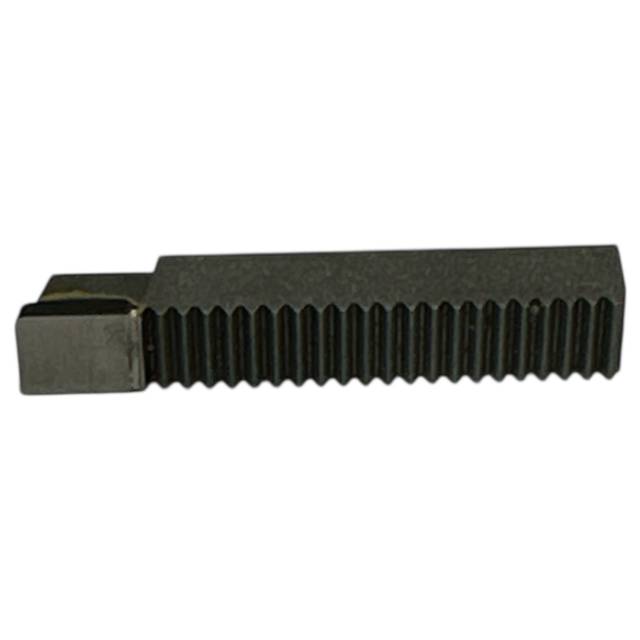

Resurfacing upper cylinder liner counterbores on Cummins ISX, L10, M11, or C Series heavy-duty diesel engine blocks? Machining counterbore ledges with dull, worn, or low-grade cutting bits causes catastrophic engine overhaul failures. High-tensile cast iron cylinder block decks demand extreme cutting edge sharpness during counterboring. Low-quality bits chatter, gall the metal ledge, and generate uneven seat depths—leaving ragged surfaces that ruin counterbore shims and cause cylinder liners to sit unlevel. An unlevel or rough counterbore ledge leads to uneven head gasket fire ring crush, liner flange fretting, combustion gas blow-by, and severe coolant intrusion into cylinder bores. Engineered for commercial diesel machine shops, Cummins dealership overhaul stalls, and heavy rebuild facilities, the PT-2210-12 / PT-2210-12I Counterbore Cutting Bit provides a premium micro-grain carbide cutting geometry featuring precision-ground traction grooves. Designed to interlock seamlessly with cutter plate bit adjusters, this 1.00-pound replacement bit delivers smooth, vibration-free metal removal and clean chip evacuation—restoring dead-flat counterbore seats for exact liner protrusion.

The Critical Physics of Counterbore Flatness & Carbide Chip Dynamics

On heavy-duty Cummins diesel engine blocks, the upper cylinder liner counterbore ledge bears the entire vertical clamping load of the cylinder head bolts while sealing peak cylinder combustion pressures. Over hundreds of thousands of highway miles, fretting corrosion and engine block flexing wear grooves into the counterbore ledge. Restoring this surface requires cutting a fresh, perfectly flat ledge to accept precision stainless steel counterbore shims. The cutting bit must maintain an exact cutting edge radius under heavy thermal and mechanical loads; if the bit dulls or flexes mid-cut, it creates a tapered ledge that rocks the liner flange. The PT-2210-12 Carbide Cutting Bit is engineered specifically for tough cast-iron counterboring applications. Its solid micro-grain tungsten carbide structure resists heat-induced edge breakdown, while its precision-ground rake angle directs cast-iron chips smoothly upward and out of the cutting path. Integrated traction indexing grooves on the bit shank engage the adjustment mechanism of the cutter plate perfectly, allowing machine operators to dial in micro-fine depth and diameter adjustments with zero tool slippage.

• Targeted Cummins Engine Platform Fitment – Engineered for counterbore machining on Cummins ISX, L10, M11, and C Series engine blocks.
• Premium Micro-Grain Carbide Construction – Delivers superior edge hardness, heat resistance, and long wear life during heavy cast-iron machining.
• Traction Grooved Shank Geometry – Interlocks securely with cutter plate bit adjusters for precise, slip-free depth and diameter settings.
• Optimized Chip Evacuation Relief – Prevents chip packing, chatter marks, and thermal stress on the engine block counterbore ledge.
• Essential Machine Shop Consumable – Direct high-precision replacement cutting bit (PT-2210-12 / PT-2210-12I) for professional engine rebuild operations.

Stop Fretting Counterbores. Command Total Cummins Engine Block Machining Precision.

The PT-2210-12 Counterbore Cutting Bit — Cummins ISX, L10, M11, C Series is an essential consumable asset for diesel machine shops, engine rebuild facilities, and field counterboring technicians. Prevent chatter marks, ensure uniform shim seating, and resurface Cummins engine blocks with complete mechanical authority using Apex tools.

Technical Specifications

Technical Metric	Value / Fitment Reference Guidelines
Target Engine Platforms	Cummins ISX, L10, M11, and C Series Diesel Engines
Primary Operational Function	Precision machining and resurfacing of upper cylinder liner counterbore ledges
Cutting Tip Material	High-grade micro-grain tungsten carbide for extended wear life
Shank Mechanism Style	Traction-grooved shank for bit adjuster plate interlocking
Part / Model Reference Number	PT-2210-12 / PT-2210-12I (PT221012 / PT221012I)
Tool Classification	Consumable / High-Wear Precision Cutting Component
Total Package Shipping Weight	1.00 lb (Compact, machine shop precision cutting bit)

---
