Cummins ISX Head Gaskets Done Right: ATC24MMISX-A Socket Workflow & Pro Tips

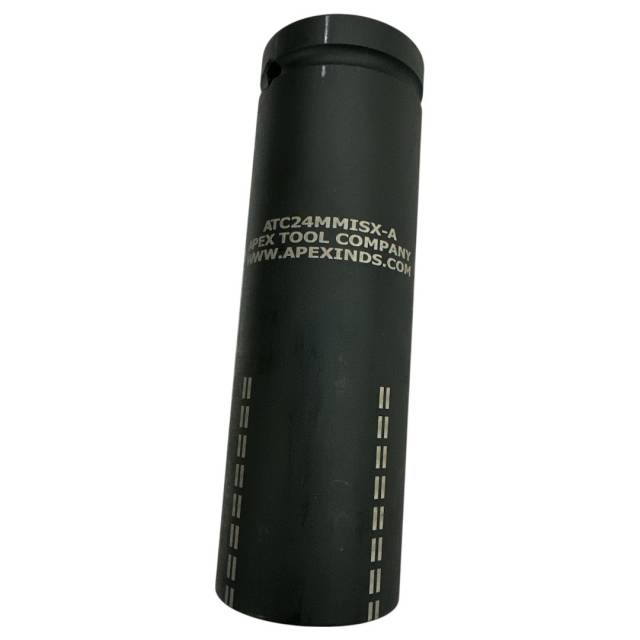

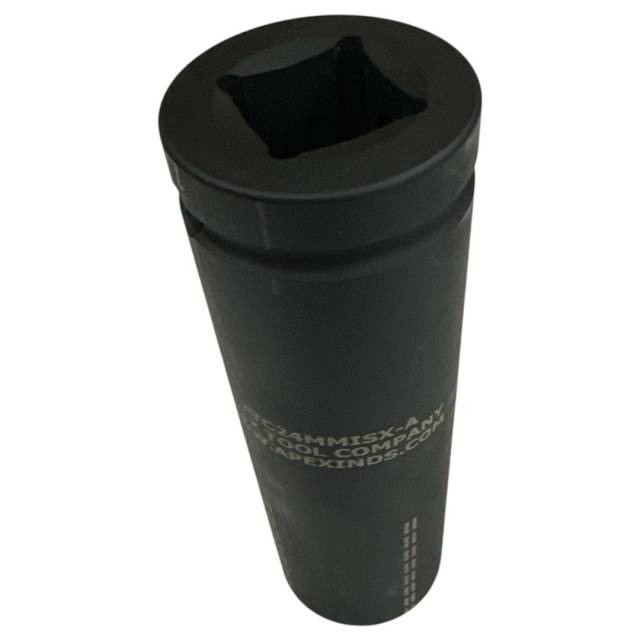

One wrong torque pass on Cummins ISX head bolts can mean warped decks, blown gaskets, and weeks of downtime. The ATC24MMISX-A 24 mm Head/Main Bolt Socket eliminates that risk with purpose-built design that replaces Cummins 3165161. This 5″ long, ¾″ drive socket with etched angle markings delivers shop-floor precision on every head gasket job, in-frame overhaul, or full ISX rebuild.
ISX Head Jobs Start Here
GET ATC24MMISX-A SOCKETThe ISX Head Bolt Challenge: Why Generic Sockets Fail
Cummins ISX head bolts require multi-stage torque + angle tightening at 400+ ft-lbs. Short sockets flex. Thin walls round off bolt corners. No angle markings means guesswork. The result? Uneven clamp load across 24 head bolts = gasket failure in 5,000 miles. ATC24MMISX-A solves every one of these problems:
- 5″ length eliminates flex during long torque pulls
- Heavy-wall 6-point grip prevents bolt corner damage
- Permanently etched 90° markings for precise angle turns
- ¾″ drive matches your shop's heavy-duty torque equipment
Complete ISX Head Bolt Torque Sequence
Follow this proven workflow using the ATC24MMISX-A socket:
- Prep: Clean block deck, verify head flatness, install new head gasket per Cummins spec.
- Stage 1: Hand-start all 24 head bolts in correct sequence using ATC24MMISX-A socket.
- Stage 2: Torque to 50 ft-lbs using ¾″ drive torque wrench + ATC24MMISX-A.
- Stage 3: Torque to 110 ft-lbs, then align etched 90° mark for angle turn.
- Stage 4: Final 90° + 90° angle turns using socket markings as reference.
- Verify: Recheck all bolts in reverse sequence after 30 minutes cool-down.
Shop Math: Why ATC24MMISX-A Pays for Itself
Without Proper Socket
- Rounded bolt corners: $50/bolt x 2 = $100
- Gasket failure comeback: $2,500 labor + parts
- Customer downtime: Lost shop revenue
- Total Risk: $2,700+
With ATC24MMISX-A
- Socket cost: $62
- Zero bolt damage
- Perfect gasket clamp load
- ROI: First job
Real-World ISX Applications
- Head Gasket Replacement
Most common ISX job—ATC24MMISX-A ensures perfect multi-stage torque. - In-Frame Overhaul
Fleet maintenance staple—socket handles repeated head removal/install. - Main Bearing Caps
Critical bottom-end work—same precision torque requirements. - Performance Rebuilds
Aftermarket heads/cams—socket survives high-boost builds.
Pro Maintenance Checklist
Before Every ISX Head Job
ATC24MMISX-A vs Generic Sockets: Head-to-Head
Perfect ISX Torque = Happy Customers. No Comebacks.
The Socket Every Cummins ISX Shop Needs
SECURE YOURS NOW → $62✅ 5″ Length • ¾″ Drive • Angle Markings
✅ Lifetime Shop Durability
