Conquering Stuck Common-Rail Injectors: Why the ATC J47391 is Crucial for Detroit DD15 Engines
Eliminate pry-bar damage and extract carbon-locked injectors cleanly with vertical mechanical advantage.

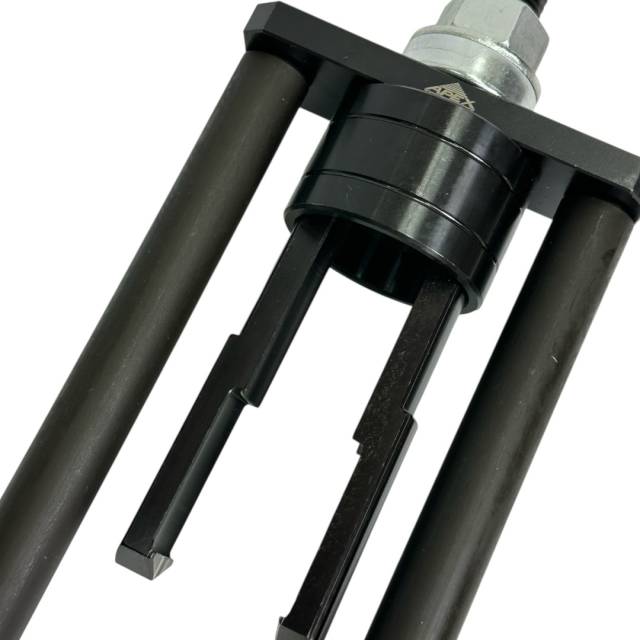

Carbon packing can weld a common-rail injector into a DD15 cylinder head. The ATC J47391 Injector Puller delivers the isolated, straight mechanical lift needed to pop them loose without cracking the head casting.
The High-Risk Architecture of Modern DD Heavy Duty Platforms
On Detroit Diesel DD13, DD15, and DD16 engines, the ultra-tight clearance between the fuel injector body and the cylinder head bore is designed to lock out combustion gases. However, over hundreds of thousands of miles, copper washer weeping or minor blow-by allows carbon to pack tightly around the injector body, creating a bond as strong as a weld. When an installer attempts to pry the injector out using a standard pry bar, they exert severe off-axis side leverage. Because the cast-iron bore lip is thin, this lateral force easily scores the inner bore or cracks the injector casing body, turning a routine fuel service into an immediate multi-thousand-dollar cylinder head replacement. The ATC J47391 tool provides an explicit, mechanical lifting bridge that bolts securely into place, drawing the injector body perfectly vertical to avoid side-loading or internal component failure.
- Platform-Isolated Geometry – Precision-engineered to index perfectly over Detroit Diesel HDE family architectures (DD13, DD15, and DD16).
- Direct OEM Specification Match – Serves as a exact 1-to-1 functional alternative to factory equipment tool **J47391** / **J-47391**.
- Linear Mechanical Force Distribution – Imparts a pure vertical lifting action to eliminate bore-gouging, uneven sleeve friction, or component damage.
- High-Tensile Threaded Rigidity – Built with fine-threaded, hardened structural steel hardware to easily pull out heavily seized assemblies.
- Service-Lane Weight Footprint – A durable 5.00 lbs dedicated steel assembly that packs easily into any service kart or top-drawer master technician layout.
Protect the Head. Secure Fast Turnaround Rates.
The ATC J47391 Fuel Injector Extraction Tool is a core piece of maintenance infrastructure for professional fleet shops, dealership bays, and heavy diesel technicians. Stop risking expensive engine components—lock in straight mechanical drawing power with Apex.
Straight Vertical Power. No Scored Injector Bores.
Order the J47391 Puller – $325.00Technical Specifications & Fitment Layout
| Technical Metric | Value / Fleet Application Specifics |
|---|---|
| Engine Families Supported | Detroit Diesel DD13, DD15, and DD16 Heavy-Duty Platforms |
| Lifting Mechanism | Fine-pitch threaded draw screw with isolated mechanical lifting bridge |
| OEM Equivalency | Direct 1-to-1 replacement for factory tool J47391 |
| Material Hardness Profile | Hardened, shock-resistant tool steel alloys built for daily shop use |
| Primary Function | Safe removal of common-rail injectors without side-loading head bores |
| Total Tool Weight | 5.00 lbs (High-density industrial grade steel alloy assembly) |
