CAT MBE904/906 Headbolt Torque: ATC34CAT19MM Professional Guide

By Blogdashfdhd Adminvsbgfsf •
CAT MBE904/906 Headbolt Torque: ATC34CAT19MM Professional Guide

Follow this professional procedure for torquing headbolts and main bearing caps on CAT MBE and Detroit Diesel engines—ensuring zero bolt rounding with the ATC34CAT19MM 12-point socket.

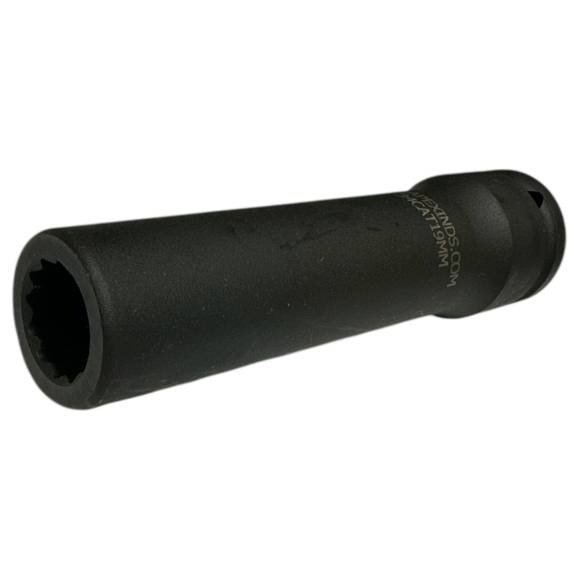

Using ATC34CAT19MM 3/4 drive socket on headbolts

Introduction: The Importance of High-Torque Precision

Heavy-duty diesel engines like the CAT MBE904/906 utilize a multi-stage torque-plus-angle method for headbolts. The ATC34CAT19MM provides the 3/4" drive foundation needed to apply these extreme loads without tool or fastener failure.

Phase 1-5: Disassembly & Bolt Inspection

  1. Clean Fastener Heads: Remove all oil and carbon buildup from the 12-point headbolt recesses to ensure full socket depth.
  2. Initial Breakout: Use the ATC34CAT19MM with a 3/4" breaker bar. Loosen bolts in the reverse order of the torque sequence.
  3. Bolt Measurement: Inspect headbolts for "stretch." Replace any bolts that exceed the manufacturer's maximum length specification.
  4. Thread Preparation: Clean the engine block female threads thoroughly using a thread chaser (not a tap).
  5. Lubrication: Apply clean engine oil to the headbolt threads and the underside of the bolt head per OEM spec.

Phase 6-10: Torquing & Final Assembly

  1. Hand Seat: Thread all headbolts in by hand to ensure no cross-threading before tool use.
  2. Socket Engagement: Firmly seat the ATC34CAT19MM onto the first bolt in the torque sequence.
  3. Torque-to-Spec: Apply the initial torque stage using a calibrated 3/4" torque wrench.
  4. Angle Torque: Perform the final rotation stages (degrees) using the socket's 12-point indexing for accuracy.
  5. Main Cap Service: Repeat the process for main bearing caps if performing a bottom-end rebuild.

Critical Warnings: Avoid These Engine Rebuild Failures

DIESEL SERVICE HAZARDS:

  • ❌ Standard 1/2" Drive Use: Never use 1/2" drive tools for final torque-plus-angle steps; tool flex will cause inaccurate degree rotations.
  • ❌ Debris in Bolt Heads: If the 12-point teeth aren't clean, the socket will only partially engage, stripping the top of the headbolt.
  • ❌ Worn Sockets: A "loose" socket will round the bolt flats under high load. Always use a precision-machined tool like the ATC34CAT19MM.

Professional Precision for CAT & Detroit. Shop Now.

Buy ATC34CAT19MM Online
