Why the PT-2000-109 Carbide Bit is Mandatory for Heavy-Duty Sleeve Counterbore Machining
Eliminate sleeve sinking and chatter marks with high-density micro-grain carbide cutting bits.

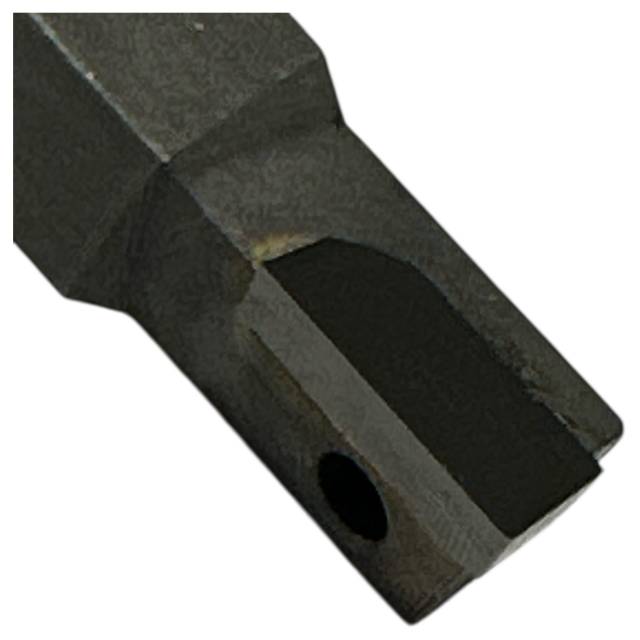

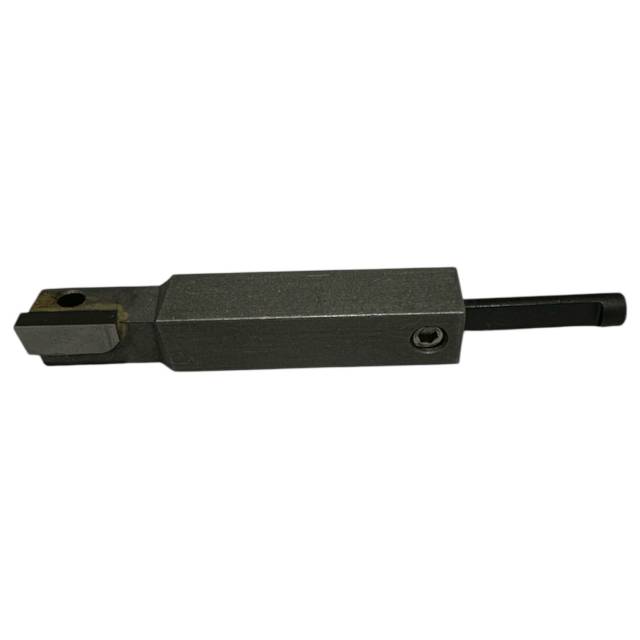

Prepping a worn heavy-duty diesel engine block for press-fit sleeve inserts using a dull or incorrect cutter bit? Installing repair sleeves over chatter-marked or uneven counterbore seats guarantees premature sleeve drop and catastrophic head gasket blowouts. The PT-2000-109 Precision Carbide Cutting Bit delivers smooth, glass-like machining passes to set exact sleeve depth and concentricity.
The Crucial Metallurgy of Counterbore Machining & Sleeve Seating
On high-horsepower commercial diesel blocks that have suffered severe counterbore erosion, fretting, or cracking, installing press-fit repair sleeves is the industry standard for saving the casting. However, the structural success of a repair sleeve depends entirely on the finish and flatness of the machined counterbore seat. When a machine shop uses generic or worn cutter inserts in their PT-2050-D or M52050 machining rig, tool deflection and thermal vibration create micro-grooves, chatter ridges, and uneven shoulder steps in the tough cast iron. When the repair sleeve is pressed in, these raised ridges crush down under thermal expansion and cylinder head clamping loads, causing the sleeve to sink below the deck face over time. A dropped sleeve destroys cylinder liner protrusion, causing immediate loss of head gasket clamping force and severe combustion gas blow-by. The PT-2000-109 carbide bit eliminates this failure point completely. Formulated from premium industrial-grade carbide, its micro-grain cutting edge holds strict rake geometries under high shear forces, machining a flat, concentric, chatter-free counterbore seat every single pass.
- Seamless System Integration – Precision-engineered specifically to lock into PT-2050-D and M52050 counterbore cutter heads without clearance slop or vibration drift.
- High-Density Industrial Carbide Composition – Resists thermal degradation, chipping, and edge wear during heavy material removal passes in high-nickel cast iron blocks.
- Chatter-Free Machining Performance – Optimized cutting-edge profile reduces tool deflection, producing mirror-smooth, parallel counterbore ledges for press-fit sleeves.
- Direct Replacement Value – Direct OEM-spec replacement bit that keeps your counterbore and sleeving tooling running at peak cutting efficiency for a fraction of full tool replacement cost.
- Agile and Compact Tooling Mass – Weighing 1.00 lbs, this solid carbide cutter bit provides high rigidity and heat absorption in a compact footprint.
Stop Risking Dropped Repair Sleeves. Command Glass-Smooth Machining Accuracy.
The PT-2000-109 Counterbore Sleeve Cutting Bit is an essential consumable asset for diesel machine shops, heavy equipment engine rebuilders, engine remanufacturing lines, and fleet overhaul centers. Protect your sleeve repair jobs and lock down mirror-flat counterbores with Apex tools.
Premium Carbide Engineering. Eliminate Sleeve Distortion & Leak Paths.
Order the PT-2000-109 Carbide Bit – $72.00Technical Specifications
| Technical Metric | Value / Fitment Reference Guidelines |
|---|---|
| Primary Machine System Compatibility | PT-2050-D / M52050 Counterbore and Sleeving Equipment |
| Material Metallurgy | High-Density Micro-Grain Industrial Tooling Carbide |
| Primary Machining Application | Counterbore depth machining and repair sleeve ledge preparation |
| Tool Bit Model Number | PT-2000-109 (PT-2000-109I) |
| Target Engine Blocks | Cummins, Caterpillar, Detroit Diesel, and Navistar heavy-duty blocks |
| Total Package Shipping Weight | 1.00 lbs (High-rigidity precision machining insert) |
