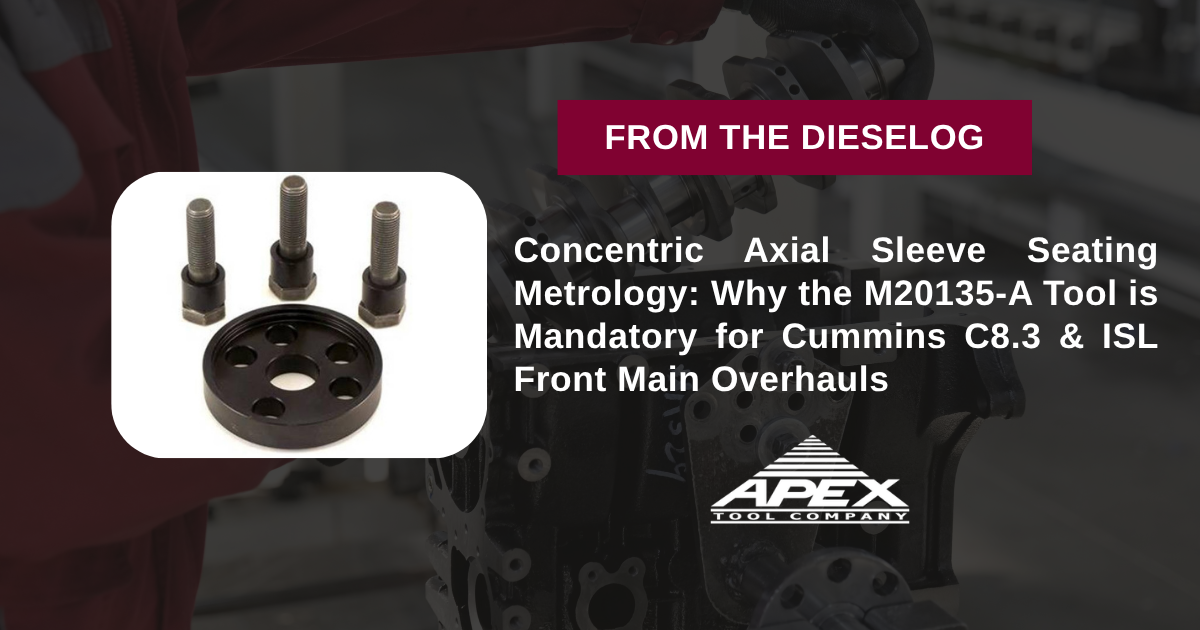

Replacing the front crankshaft main seal or renewing a grooved crankshaft snout on a Cummins C8.3, C Series, or ISL 8.9L diesel engine? Attempting to drive thin stainless steel wear sleeves onto the crankshaft snout using flat plates, brass drifts, or improvised pipe sections causes outer lip flaring, cocked alignment, and severe sleeve buckling. A distorted wear sleeve shreds fresh oil seal elastomeric lips instantly upon engine startup, causing immediate front main oil slinging across serpentine belts and timing covers. Engineered as a direct USA-made replacement for Cummins factory tool 3165112, the M20135-A Front Crankshaft Wear Sleeve Installer applies 360-degree uniform axial pressure to press wear sleeves dead-straight to exact OEM depth without flare, distortion, or crankshaft snout scoring.

The Critical Physics of Crankshaft Snout Wear Sleeves & Front Main Seal Integrity

Heavy-duty commercial diesel engines like the Cummins C8.3 and ISL operating in transit buses, fire apparatus, vocational trucks, and agricultural equipment accumulate millions of crankshaft revolutions. Over extended service intervals, airborne grit and continuous lip friction carve a deep groove directly into the steel surface of the front crankshaft snout. When replacing a leaking front main seal, installing a new seal over a grooved crankshaft snout results in immediate oil bypass. Technicians press a thin, precision-ground repair wear sleeve over the snout to restore a pristine 100% smooth sealing surface. However, because these micro-thin sleeves fit with tight interference tolerances, driving them on requires perfectly distributed perimeter force. When mechanics attempt installation using hammers or makeshift steel collars, the force concentrates on single points along the sleeve edge. This cocks the sleeve on the snout, stretching the metal and creating microscopic waves along the sealing track. A cocked or wavy wear sleeve acts like a cutter against the new oil seal lip, causing immediate high-volume oil leaks. The M20135-A Wear Sleeve Installer completely eliminates these front-end service failures. Machined from high-tensile tool steel, this 3.00-pound installer features a piloted alignment cup that bolts directly to the front crankshaft nose threads. Turning the central forcing nut draws the contoured press cup smoothly over the snout, distributing 360-degree parallel force that slides the wear sleeve into position squarely and seats it to exact Cummins factory depth every time.

• Targeted Cummins C & ISL Platform Fitment – Purpose-built specifically for front crankshaft wear sleeve installation on Cummins C8.3, C Series, ISL, and QSL9 diesel engine platforms.
• Direct OEM Factory Tool Interchange – High-strength functional replacement for Cummins OEM specialty tool part number **3165112** (M20135-A / 3165112 / 20135-A).
• 360-Degree Uniform Axial Seating – Eliminates sleeve flaring, cocked alignment, and metal buckling to guarantee a glass-smooth front main seal surface.
• Protects High-Value Crankshaft Snouts – Prevents gouging, scratching, or scoring of the precision-ground steel crankshaft nose during sleeve installation.
• Heavy-Duty Industrial Steel Construction – Substantial 3.00 lbs precision-machined tool steel build engineered for continuous daily service in commercial overhaul bays and fleet maintenance stalls.

Stop Hammering Wear Sleeves. Command Total Cummins Front Main Service Precision.

The M20135-A Cummins C/C8.3 & ISL Front Crankshaft Wear Sleeve Installer – 3165112 is an essential capital asset for commercial truck repair facilities, Cummins dealership service bays, fleet maintenance centers, and heavy diesel rebuilders. Prevent front main oil leaks, protect crankshaft snouts, and seat wear sleeves with complete mechanical authority using Apex tools.

Technical Specifications

Technical Metric	Value / Fitment Reference Guidelines
Target Engine Platforms	Cummins C8.3, C Series, ISL, ISC, and QSL9 Heavy-Duty Diesel Engines
Primary Operational Function	Non-destructive, concentric pressing of front crankshaft repair wear sleeves
Specialty Tool Cross Reference	Direct replacement for Cummins OEM 3165112 (M20135-A / 3165112)
Part / Model Reference Number	M20135-A (M20135-A / 20135-A)
Construction Metallurgy	High-tensile precision-machined structural tool steel
Total Package Shipping Weight	3.00 lbs (Substantial, professional shop service tool)

---
