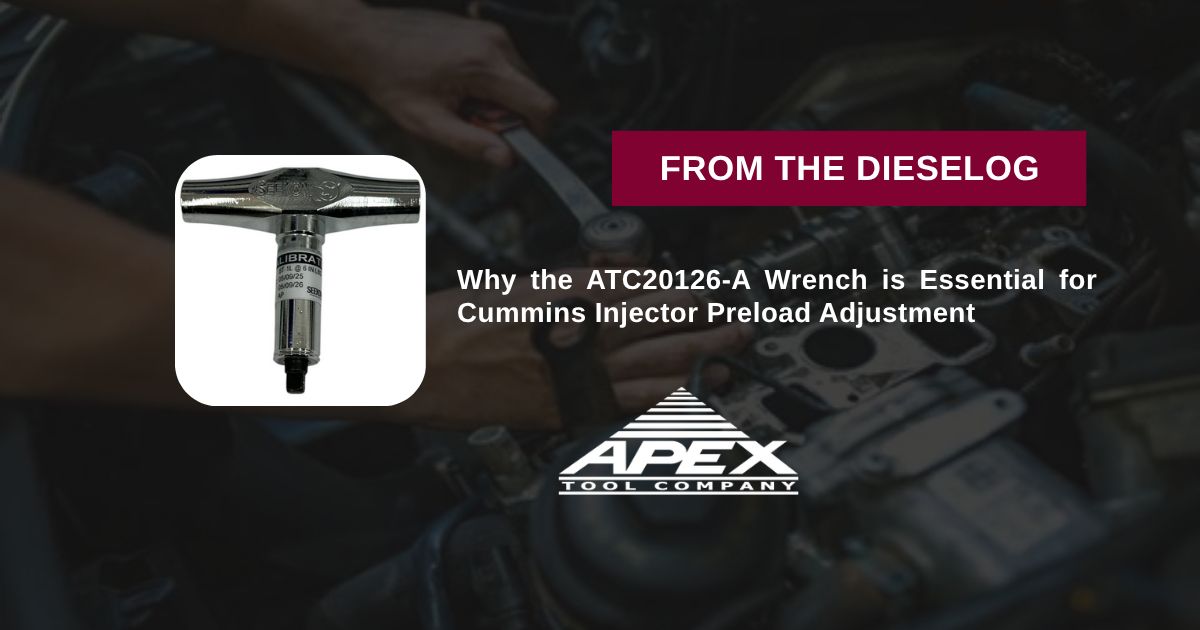

Setting fuel injector plunger preload during overhead valve adjustments on Cummins diesel engines? Attempting to set delicate 6 inch-pound preload screws using standard hand drivers, uncalibrated feeler gauges, or click-type wrenches calibrated for higher torque ranges introduces severe engine assembly hazards. Over-tightening crushes internal injector plungers, distorts needle seat lands, and binds rocker arms, while under-tightening causes slop that alters injection timing and causes combustion blow-by. Engineered as a direct replacement for OEM Cummins tool number 3376592, the ATC20126-A Injector Setting Torque Wrench features a factory-certified, pre-set 6 in-lb breakaway T-handle mechanism to ensure 100% consistent, repeatable injector preload calibration across every cylinder.

The Critical Physics of 6 in-lb Injector Preload & Overhead Valve Train Metrology

Heavy-duty Cummins diesel fuel injection systems—including unit-injected mechanical and electronic overhead platforms—rely on precise mechanical plunger preload to control fuel atomization, start-of-injection timing, and peak injection pressure. During overhead valve and injector setting procedures, setting the injector adjusting screw to exactly 6 in-lb (inch-pounds) ensures that all air space and oil film clearance inside the injector linkage are eliminated without loading the internal return spring or galling the plunger barrel. Trying to estimate a 6 in-lb setting by "hand feel" is nearly impossible. Human hand estimation varies by as much as ±15 in-lb. Over-torquing the adjusting screw forces the injector plunger to bottom out inside its barrel at top dead center, causing severe scuffing, bent pushrods, cracked rocker arms, or cracked injector hold-down clamps. Conversely, setting the screw too loose leaves excessive lash; as the camshaft lobe hits the injector roller, the impact shock-loads the valve train, causes fuel delivery lag, and creates severe engine misfires. The ATC20126-A Injector Setting Torque Wrench eliminates all guesswork from Cummins overhead adjustments. Built with an internal factory-certified breakaway clutch calibrated strictly to 6 in-lb, this T-handle wrench slips smoothly the exact instant correct preload is achieved. Its compact T-handle design fits easily beneath tight valve covers and engine cowlings, guaranteeing uniform fuel delivery and protecting high-value fuel injectors across all cylinders.

• Targeted Cummins Overhead Injection System Fitment – Engineered specifically for setting fuel injector plunger preload on Cummins diesel engines requiring OEM tool **3376592**.
• Factory-Certified Fixed 6 in-lb Torque Limit – Calibrated pre-set internal torque clutch slips cleanly at 6 inch-pounds to prevent over-tightening or plunger binding.
• Direct OEM Tool Replacement – High-precision aftermarket equivalent to Cummins OEM part number **3376592** (3376592 / ATC20126-A).
• Ergonomic Compact T-Handle Design – Streamlined profile allows seamless access inside cramped overhead valve covers and tight engine compartments.
• Durable Lightweight Tooling Construction – Weighing only 1.00 lb, this precision wrench delivers smooth breakaway repeatability for professional engine overhaul bays.

Stop Guessing Overhead Lash. Command Total Cummins Injector Preload Precision.

The ATC20126-A Injector Setting Torque Wrench — 6 in-lb (Cummins 3376592) is an essential capital asset for commercial truck repair stalls, Cummins dealership service bays, mobile diesel mechanics, and engine rebuild facilities. Protect fuel injectors, ensure exact injection timing, and set overhead preload with complete mechanical authority using Apex tools.

Technical Specifications

Technical Metric	Value / Fitment Reference Guidelines
Target Engine Platform	Cummins Heavy-Duty Diesel Engines requiring 6 in-lb Injector Preload
Calibrated Torque Setting	Fixed 6 inch-pounds (in-lb) / Pre-Set Internal Breakaway Clutch
Specialty Tool Cross Reference	Direct replacement for OEM Cummins 3376592
Part / Model Reference Number	ATC20126-A (ATC20126A / 20126-A / 20126A)
Wrench Style & Handle Type	Ergonomic T-Handle Driver with Factory Torque Certification
Total Package Shipping Weight	1.00 lb (Lightweight, high-precision shop service tool)

---
