Rework on heavy-duty diesel bottom ends is costly. Learn how to use the ATC 7450 clamshell tool to guarantee perfect piston installation on Cummins and Cat platforms.

Why Uniform Tapered Compression Wins

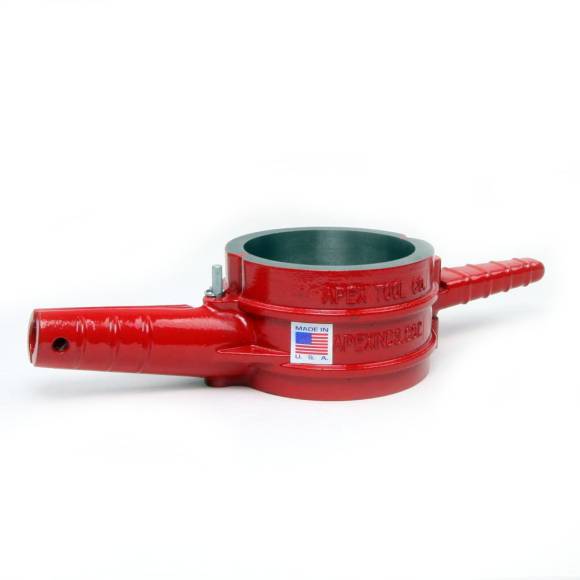

Cummins ISC and ISL engines utilize high-tension rings that require considerable force to collapse cleanly into the piston grooves. If a compressor flexes or allows uneven expansion as the piston moves from the tool into the bore, a ring will pop out of alignment and break instantly under your mallet. The solid, locked cast design of the ATC 7450 maintains unyielding radial force, ensuring the rings slide continuously into the cylinder liner without a single millisecond of unguided expansion.

The Step-By-Step Assembly Sequence

1. Pre-Assembly Cleaning: Verify that the piston lands, rings, and cylinder bore are immaculate. Wipe down the interior surface of the ATC 7450.
2. Stagger the Rings: Orient your ring gaps according to the factory service manual specs to guarantee optimal compression and block blow-by. Lubricate the rings and piston skirt generously with clean engine oil.
3. Lock the Clamshell: Wrap the ATC 7450 around the piston ring pack. Compress the clamshell firmly until the alignment holes meet, and insert the heavy-duty locking pin completely.
4. Align with Cylinder Bore: Sit the compressed assembly squarely over the top of the cylinder liner. Ensure the alignment remains perfectly parallel to the cylinder centerline to prevent edge binding.
5. Seat the Piston: Maintain steady downward pressure on the cast compressor body. Use a plastic or wooden mallet handle to tap the piston down into the bore with smooth, rhythmic strokes. If you experience abrupt mechanical resistance, STOP immediately and check your alignment.

---
