Cummins ISX Injector Removal & Installation Procedure: ATC 3163483 Guide
By Blog Admin •
This 10-phase procedure uses the ATC 3163483 tool to safely remove and install fuel injectors on Cummins ISX engines—ensures secure engagement, controlled force, and no bore or injector damage.
Introduction: Safe & Precise Injector Service for Cummins ISX
The ATC 3163483 provides secure grip and controlled force—essential for protecting high-pressure ISX injectors and cylinder head bores.
Phase 1-3: Preparation & Injector Access
- Secure engine / vehicle – Hoist or stand support
- Remove rocker arms & valve cover – Clear injector access
- Relieve fuel pressure & disconnect lines – Safety first
Phase 4-6: Injector Extraction

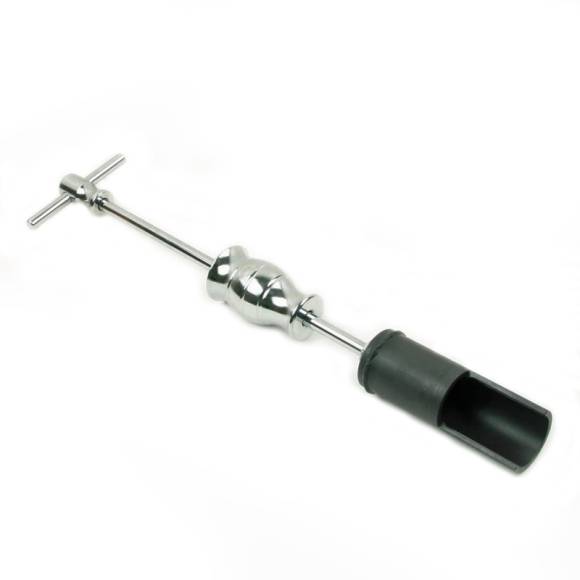

- Position ATC 3163483 puller – Securely engage injector body
- Apply steady pull force – Controlled extraction from bore
- Remove injector & inspect – Check tip, body & bore condition
Phase 7-10: New Injector Installation & Verification
CRITICAL: ATC 3163483 Service Keys
- Clean bore & lubricate new injector – Per Cummins spec
- Use ATC 3163483 to press injector – Controlled seating
- Reconnect lines & reassemble – Torque to spec
- Prime system & run engine – Check for leaks & codes
Critical Warnings: ISX Injector Service Hazards
AVOID THESE EXPENSIVE MISTAKES:
- ❌ Pry bar / slide hammer – Bore scoring
- ❌ Uneven force – Injector body damage
- ❌ No lubrication – Seizure & seal failure
- ❌ Skip leak check — Fuel dilution & damage
- ❌ Wrong torque — Misalignment or leaks
Why ATC 3163483 Beats Improvised Tools
Improvised Risks:
- ❌ Pry bar gouge → $800+ bore damage
- ❌ Slide hammer shock → Injector body crack
- ❌ No control → Rework losses
ATC 3163483 Advantages:
- ✅ Secure dual-function grip
- ✅ Controlled pull & press
- ✅ Bore & seal protection
- ✅ Faster service
- ✅ Saves $8.3K–$25.5K per bad job
- ✅ ISX reliability
Service Cummins ISX Injectors Professionally. Clean Extraction. Precise Install. Maximum Engine Life.
Get ATC 3163483 – $175.00
