Tech Guide: Cummins ISX Cam & Injector Gear Timing

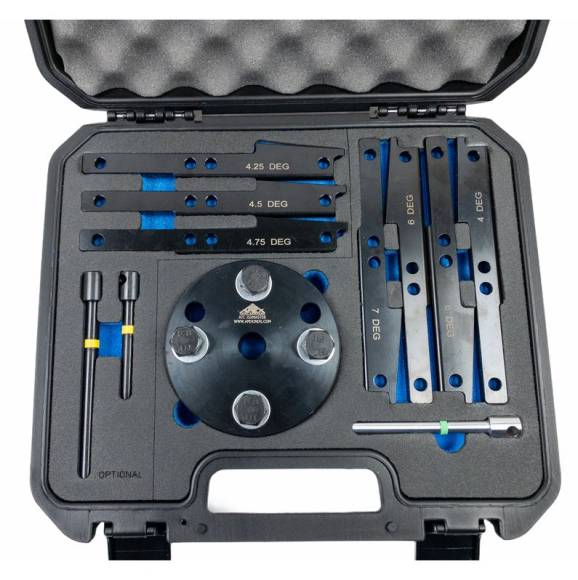

Installing a new camshaft or adjusting the geartrain on a high-mileage ISX? Learn the professional technical sequence for using the ATCISXMASTER kit to lock in perfect engine timing.
Why Mechanical Wedges Outperform Simple Gear Alignment
The geartrain of a Cummins ISX15 is designed to transfer massive torque loads, which naturally creates gear backlash (play). When a technician tightens the cam gear bolt, that backlash can shift the cam position by 1–2 degrees. On a modern diesel with high-pressure common-rail or HPI-TP injection, that shift leads to late injection, low power, and excessive fuel waste. Utilizing the degree-stamped wedges from the ATCISXMASTER kit allows you to physically "shim" the camshaft flats against the cylinder head, completely taking up that gear play. This ensures that once your bolts are torqued, the cams are locked in their precise factory-mandated synchronization window.
The 5-Step ISX Timing & Extraction Sequence
- Tear Down & TDC Pinning: Remove the overhead valve covers. Rotate the engine crankshaft manually until the timing marks on the flywheel housing align. Slide the long silver **3163020 crankshaft pin** (or the long black **2892115** for 11.9L) into the block to lock the engine at Top Dead Center.
- Snap Loose the Cam Gears: Use the heavy-duty **3163069 cam gear puller** included in the kit. Bolt the puller legs directly into the injector and valve cam gears. Wrench down the center drive screw until the gears "pop" loose from their tapered camshaft snouts—avoid hitting gears with hammers to prevent fractures!
- Insert the Timing Wedges: Locate the cam timing degree code stamped on your engine block's ID plate. Select the matching degree wedge (e.g., 6° or 4.25°). Slide the wedges flatly between the camshaft flats and the cylinder head deck. The wedges should fit snugly, holding the camshafts stationary.
- Pin the 11.9L Platforms: If servicing the ISX11.9 model, utilize the specialized short black **4919342 camshaft timing pin** to verify the indexing of the valve cam through the head port, ensuring dual-lock security.
- Torque & Gear Mesh Verification: With the crank pin and wedges firmly in place, torque your camshaft gear bolts to the required heavy-tonnage specifications. Remove all pins and wedges, rotate the engine two full manual turns, and re-insert the tools. If all pins drop back in smoothly, your timing is 100% factory-compliant.
CRITICAL WEDGE SAFETY WARNING:
Never apply torque to the engine crankshaft using a barring tool while timing wedges are installed! The unyielding steel wedges transfer all rotational energy directly into the cast iron cylinder head deck. Attempting to force the crank will crack the head casting or snap the camshaft flats instantly. Always Remove wedges before turning the block.
