This 12-phase procedure uses the W470589104000 timing tool to accurately set and verify camshaft timing on Detroit Diesel DD15/DD16 engines—prevents valve interference, fault codes, and major damage.

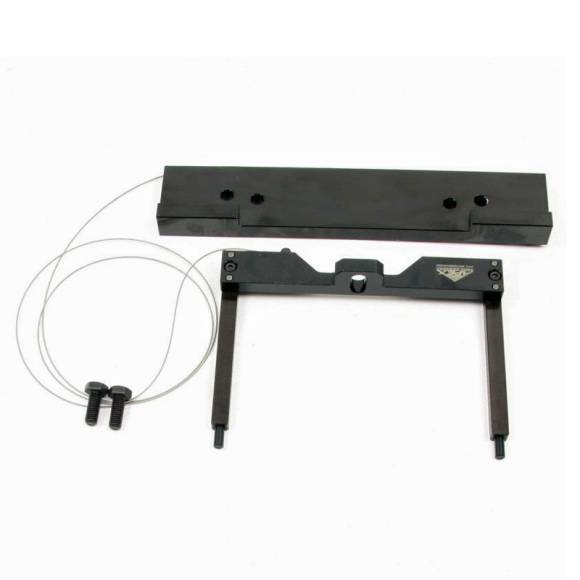

W470589104000 camshaft timing tool locked on Detroit DD15 DD16 engine

Introduction: Precise Cam Timing for DD15/DD16 Diesels

The W470589104000 locks the cam in factory position—essential for valve/injection synchronization and avoiding interference.

Phase 1-4: Preparation & Engine Positioning

Secure engine/vehicle – Hoist or stand support
Set engine to TDC #1 – Crank to reference mark
Remove necessary covers/gears – Access cam gear
Inspect timing components – Check for wear

Phase 5-8: Camshaft Timing & Locking

Align camshaft marks – To factory specs
Install W470589104000 tool – Lock cam in position
Verify alignment with tool – No movement allowed
Install/torque timing gears/chain – To spec

Phase 9-12: Verification & Final Assembly

CRITICAL: W470589104000 Timing Keys

Remove tool & recheck marks – Double verification
Reassemble covers & components – Torque sequence
Prime & start engine – Monitor for codes/noise
Road/load test & final scan – Confirm performance

Critical Safety Warnings: Cam Timing Errors

MUST AVOID THESE DISASTROUS MISTAKES:

❌ Skip TDC verification – Interference risk
❌ No locking tool – Cam shift during install
❌ Incorrect alignment – Valve/piston contact
❌ Overtorque gears – Gear/shear damage
❌ No final scan/test – Undetected faults

Why W470589104000 Beats Eyeballing & Generic Tools

Improvised / Generic Risks:

❌ No precise lock → Timing slip ($3K+)
❌ Visual alignment → Human error
❌ Wrong tool fit → Damage & rework
❌ Repeated faults → Warranty issues

W470589104000 Advantages:

✅ OEM-equivalent precision
✅ Secure cam lock
✅ 95%+ error reduction
✅ Fast verification
✅ Prevents $14K–$38K disasters
✅ Repeatable results

Set DD15/DD16 Cam Timing the Right Way. Perfect Alignment. No Interference. Full Performance.

Get W470589104000 – $175.00
