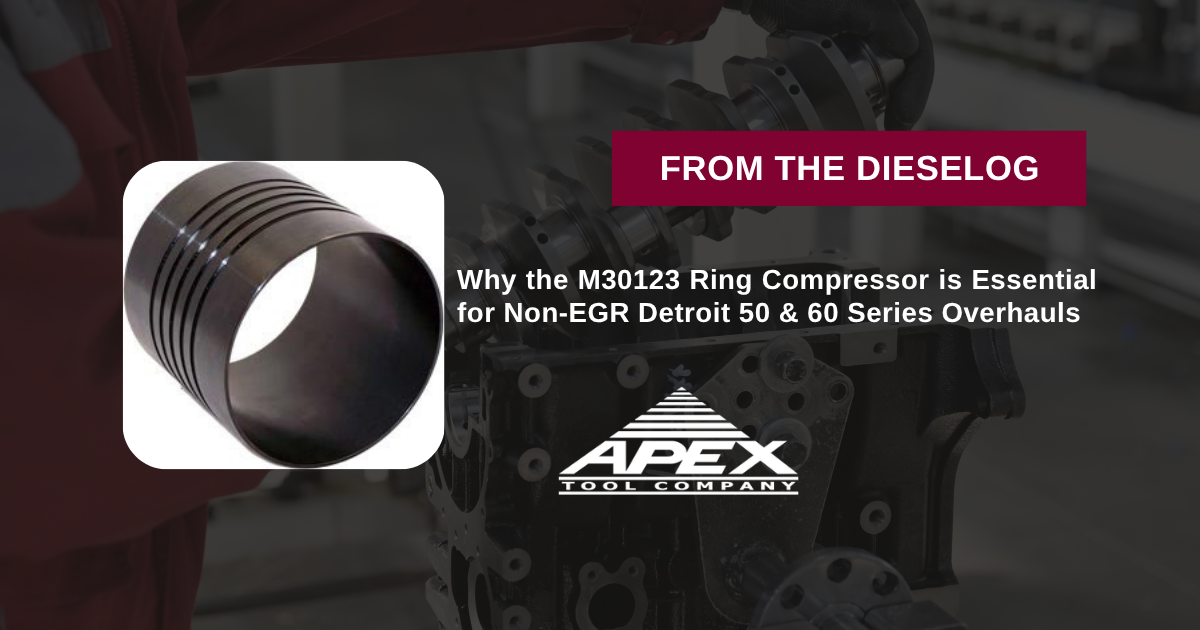

Rebuilding a classic non-EGR Detroit Diesel Series 50 or Series 60 engine and trying to stuff piston assemblies into wet cylinder liners using adjustable sheet-metal band tools or universal pliers? You are taking a direct gamble on broken oil control rings, scored cylinder walls, and blown crankcase blow-by. The M30123 Precision Tapered Ring Compressor provides the exact circumferential pressure required to glide piston rings smoothly home into the liner without snagging or fracturing.

The Critical Physics of Piston Ring Compression & Liner Insertion

On workhorse Detroit Diesel Series 50 and Series 60 non-EGR engines, the piston assembly features high-tension compression rings and multi-piece oil control rings engineered to maintain a tight seal under heavy combustion pressures. During an in-frame overhaul or complete block remanufacturing, driving the piston and connecting rod down into the cylinder liner sleeve requires uniform, 360-degree radial ring compression. Using flexible band-style ring compressors or pliers is a frequent cause of assembly failure. Flexible bands flex unevenly, allowing ring tips to pop out of their grooves right at the top chamfer of the sleeve liner. When a mallet taps the piston down against a cocked ring edge, the hard cast-iron ring instantly snaps, or worse, gouges the precision-honed cross-hatch pattern inside the fresh cylinder sleeve wall. The M30123 tool completely eliminates this risk. Precision-machined from solid tool steel with a smooth internal entrance taper, it compresses all ring lands dead-flat and square, allowing the entire piston crown to slide effortlessly straight into the liner bore.

• Precision Engine-Specific Bore Taper – Machined explicitly to fit the exact piston diameter and ring land profiles of Detroit Diesel 50 and 60 Series non-EGR engines.
• Direct OEM Factory Tool Interchange – Built custom to original equipment manufacturing dimensions, serving as a direct high-strength replacement for tool code **J-35598-A**.
• 360-Degree Uniform Ring Closure – Solid, un-yielding cylindrical body applies perfectly balanced radial pressure around the entire piston circumference.
• Zero Liner Scuffing Defense – Smoothly transitions rings from the compressed tool cavity directly into the cylinder liner sleeve chamfer without edge snagging.
• Industrial Heavy-Duty Toolroom Mass – Weighing a solid 6.00 lbs, this heavy-walled steel tool absorbs driver taps and maintains structural alignment pass after pass.

Stop Snagging Piston Rings. Command Flawless In-Frame Rebuild Precision.

The M30123 Detroit Diesel Series 50 & 60 Ring Compressor is a vital investment for commercial freight engine rebuilders, fleet overhaul bays, municipal transit repair stations, and independent heavy diesel machine shops. Safeguard your new piston kits, prevent costly teardown reworks, and build with total mechanical confidence using Apex.

Technical Specifications

Technical Metric	Value / Fitment Reference Guidelines
Engine Family Compatibility	Detroit Diesel 50 Series and 60 Series (Non-EGR Platforms)
Primary Operational Function	Uniform 360° ring compression and smooth piston-in-liner installation
OEM Special Tool Interchange	Direct functional equivalent for Detroit Diesel part # J-35598-A
Tool Architecture Class	Precision-machined solid steel tapered sleeve compressor ring
Service Applications	In-frame rebuilds, full engine overhauls, engine remanufacturing
Total Package Shipping Weight	6.00 lbs (Heavy, vibration-damping solid tool steel mass)

---
