Performing a short-block overhaul or in-frame liner service on a non-EGR Detroit Diesel Series 60 engine? Attempting to extract carbon-baked, press-fit cylinder liners using improvised slide hammers, pry bars, or unguided jaw pullers applies crooked side-loads. This causes severe cylinder wall galling, scores upper block counterbores, and damages lower block deck lands. The M30143 Cylinder Liner Puller delivers 100% straight-line vertical mechanical extraction force, popping stubborn liners cleanly out of non-EGR Series 60 engine blocks without risking casting damage or technician fatigue.

The Critical Fluid Dynamics & Mechanics of Series 60 Non-EGR Liner Removal

Non-EGR Detroit Diesel Series 60 (11.1L, 12.7L, and early 14L) commercial engines feature wet cylinder liners engineered to withstand immense combustion pressures and thermal expansion. Over hundreds of thousands of miles, intense heat cycling, oil varnish, and lower crevice-seal oxidation bake cylinder liners tightly into the engine block bores. During an in-frame overhaul, extracting these seized liners requires smooth, high-tonnage axial force. When mechanics resort to improvised pullers or slide hammers, the pulling shoes cock sideways under tension. Cocking concentrates high point-loads on the lower lip of the liner, cracking the cast-iron sleeve or dragging the liner edge diagonally across the precision-machined block counterbore. Scoring an upper counterbore ledge or lower block sealing bore creates permanent coolant passages that allow water to contaminate crankcase oil after reassembly—destroying brand-new bearings and requiring expensive engine block replacement. The M30143 Liner Puller completely eliminates these overhaul hazards. Purpose-engineered as a direct functional replacement for Kent-Moore/Detroit Diesel OEM tool J-35791, this 12.00-pound heavy-duty tool anchors securely over the top deck of the block. Its spring-loaded expander shoes grip the bottom rim of non-EGR Series 60 liners uniformly. Turning the central forcing screw applies dead-straight vertical lifting force, drawing the liner straight upward out of the block without side-cocking, bore scoring, or counterbore damage.

• Targeted Detroit Series 60 Non-EGR Fitment – Purpose-built specifically for non-EGR Detroit Diesel Series 60 engine platforms (11.1L, 12.7L, and non-EGR 14L variants).
• Direct OEM Factory Tool Interchange – High-strength aftermarket replacement for Detroit Diesel OEM tool number **J-35791** (J35791).
• Zero Counterbore & Block Bore Damage – Enforces 100% vertical straight-line extraction to protect upper block counterbores and lower crevice-seal lands.
• Spring-Loaded Dual-Shoe Engagement – Expander shoe assembly grips the lower liner rim automatically to prevent slippage during heavy mechanical pulling.
• Heavy-Duty Industrial Machine Tooling – Substantial 12.00 lbs solid structural steel construction built for continuous daily use in commercial rebuild bays and fleet stalls.

Stop Hammering Series 60 Liners. Command Total Detroit Engine Teardown Precision.

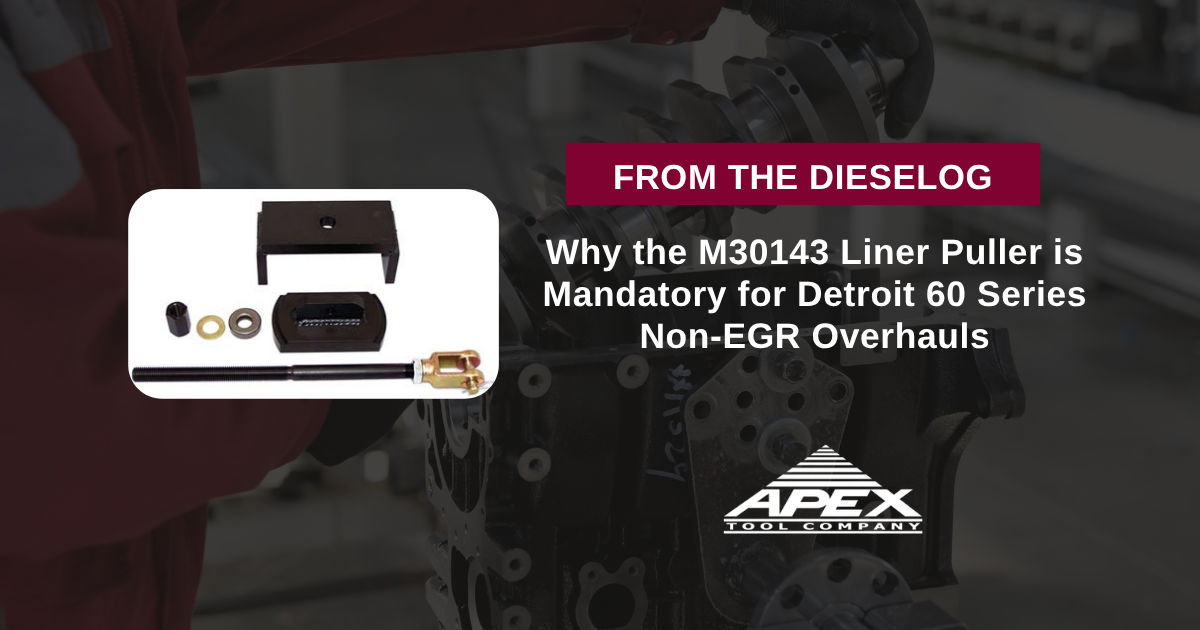

The M30143 Detroit Diesel 60 Series Liner Puller Tool J-35791 is an indispensable capital asset for commercial truck repair centers, Freightliner dealership service bays, field overhaul technicians, and heavy diesel rebuilders. Protect engine blocks, eliminate extraction guesswork, and pull non-EGR Series 60 liners with complete mechanical authority using Apex tools.

Technical Specifications

Technical Metric	Value / Fitment Reference Guidelines
Target Engine Platforms	Detroit Diesel Series 60 (11.1L, 12.7L, 14L) – NON-EGR ENGINES ONLY
Primary Operational Function	Safe in-chassis or bench mechanical extraction of wet cylinder liners
Specialty Tool Cross Reference	Direct replacement for OEM J-35791 (J35791 / M30143)
Part / Model Reference Number	M30143 (M30143 / 30143)
Construction Metallurgy	High-tensile forged and precision-machined structural tool steel
Total Package Shipping Weight	12.00 lbs (Substantial, professional heavy-duty shop service tool)

---
