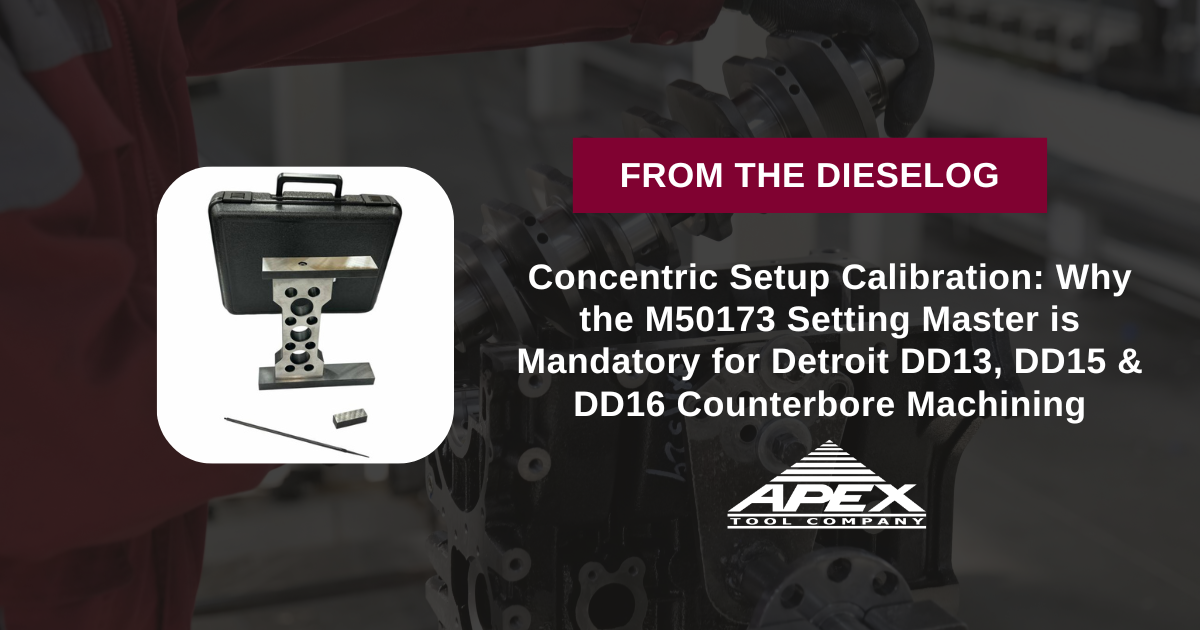

Preparing to recondition cylinder block counterbore ledges on a Detroit Diesel DD13, DD15, or DD16 engine? Setting up counterbore cutter tooling without a dedicated calibration master leaves final cutting depth to guesswork. Machine a block deck even a fraction of a millimeter too deep, and you ruin an expensive engine casting beyond simple repair. The M50173 Counterbore Setting Master provides a precision-ground, repeatable reference surface to calibrate dial indicators and zero cutter assemblies prior to machining, ensuring 100% accurate counterbore depth across all Detroit Heavy-Duty Engine (HDE) platforms.

The Critical Physics of Precision Block Deck Counterbore Calibration

On Detroit Diesel Heavy-Duty Engine platforms—including DD13, DD15, and DD16 variants—cylinder liner counterbore ledges support the upper flange of each wet liner. Under severe combustion heat and high cylinder pressures, counterbore ledges suffer fretting erosion, requiring precision in-frame reconditioning to install counterbore shims and restore proper liner protrusion. However, a counterbore cutting system is only as accurate as its initial zero setup. Attempting to set dial indicators or cutter bits directly against an eroded, carbon-pitted, or uneven block deck face introduces catastrophic setup errors. If the cutter bit is set too deep, it removes excessive cast iron from the block ledge. Over-machined ledges cause cylinder liners to sink, destroying head gasket fire-ring crush, washing out bearings with coolant, or forcing the scrapping of a $15,000+ engine block. The M50173 Setting Master completely eliminates setup risks. Engineered as a universal calibration standard, it features a precision-machined reference fixture with a dedicated DD13-specific setting block. This allows machinists to calibrate their dial indicators and lock cutter height settings away from the dirty engine bay before the cutter blade ever touches the block.

• Universal Detroit HDE Application Coverage – Single master fixture calibrates counterbore cutters across Detroit Diesel DD13, DD15, and DD16 engine families.
• Includes Modular DD13 Setting Block – Interchangeable adapter block configures the setting master specifically for DD13 deck dimensions.
• Direct Tooling System Compatibility – Complements the **M50166** (DD15/DD16 kit using 50167 plate) and **M50169** (DD13 kit using 50170 plate) cutter systems.
• Includes Indicator Extension Hardware – Equipped with the necessary extension rod to mount standard shop dial indicators securely to the master fixture.
• Heavy-Duty Rebuild Quality Assurance – Substantial 11.00 lbs solid steel construction built for daily shop use in high-volume diesel machine shops and rebuild stalls.

Stop Guessing Cutter Depth. Command Total Detroit Diesel Machining Precision.

The M50173 Counterbore Setting Master – Detroit Diesel DD13, DD15 & DD16 is an indispensable quality-control asset for commercial diesel machine shops, engine rebuild facilities, and fleet overhaul stalls. Eliminate setup errors, protect engine blocks, and calibrate counterbore tooling with complete mechanical authority using Apex tools.

Technical Specifications

Technical Metric	Value / Fitment Reference Guidelines
Target Engine Platforms	Detroit Diesel DD13, DD15, and DD16 Heavy-Duty Engines
Primary Operational Function	Setup calibration standard for zeroing dial indicators & counterbore cutter depth
Compatible Tooling Kits	M50166 (DD15/DD16 Kit) & M50169 (DD13 Kit) using 50167-3 cutter bits
Part / Model Reference Number	M50173 (M50173)
Included Hardware Components	Master reference base, modular DD13 setting block, & dial indicator extension
Total Package Shipping Weight	11.00 lbs (Substantial, heavy-duty shop reference fixture)

---
