Executing an in-frame transmission overhaul or servicing a leaking rear main on a commercial mid-duty truck? Learn the proper technical sequence to press PTFE seals cleanly using the W457589014300 tool group.

Why Shallow Perimeter Tapping Fails to Seat Stiff Teflon Face Lips

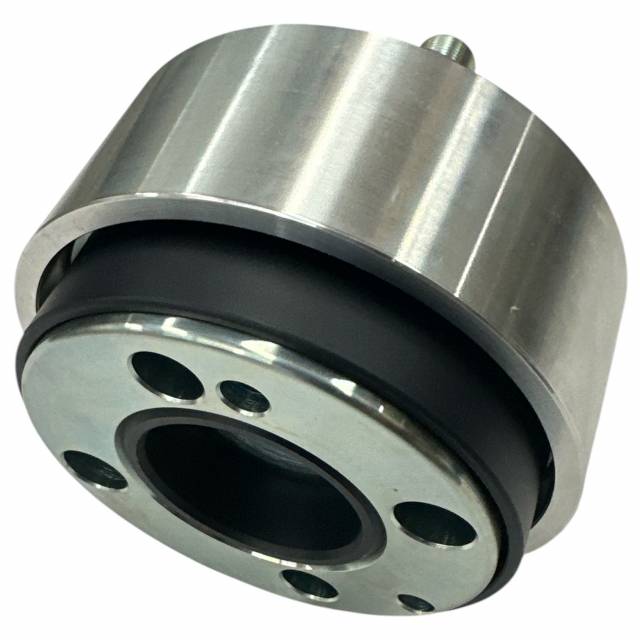

The rear flywheel block cover on a Detroit DD5 engine demands complete geometric truth during re-sealing. When a line mechanic attempts to drive a fresh pre-assembled seal housing home using flat unguided plates or off-center hammer taps, the force transfers unevenly. This minor tilt forces the rigid, dry-spec PTFE seal lip to crease against the crankshaft snout. Unlike common rubber lip components that deploy an internal spring to absorb misalignment, premium Teflon relies purely on the plastic's material memory to grip the steel crankshaft journal. Any minor wrinkle introduced during a cocked installation forms a permanent track, allowing engine oil to slip past into the dry clutch case under pressure. Utilizing a pilot-supported mechanical press tool like the 9-pound W457589014300 forces all installation loads down a perfectly parallel mechanical axis line, keeping your sealing elements dead-flush.

The 5-Step Rear Main Sealing Protocol

1. Transmission Teardown and Flange Triage: Safely drop the manual or automatic transmission, clutch modules, and the heavy flywheel. Extract the failed rear main oil seal carrier. Wipe down the crankshaft snout journal and surrounding housing bore aggressively with solvent to strip away oil film and carbon scale.
2. Enforce an Absolute Bone-Dry Surface: Ensure the crankshaft journal face is completely clean and dry down to bare metal. *CRITICAL CONTROL DISCLOSURE: Never apply grease, oil, or assembly lube to a dry-spec PTFE seal lip or to the crankshaft snout! Fluid presence prevents the Teflon material from properly memory-shrinking onto the steel journal, ensuring an immediate post-start leak track.*
3. Bolt down the Center Pilot Guide: Mount the inner guide mandrel plate of your W457589014300 kit tightly directly onto the crankshaft hub flange using the high-strength kit bolts. Slip the included W936589011400 depth spacer collar over the mandrel to bridge the offset true.
4. Stage the Cased Oil Seal Carrier: Carefully fit the fresh pre-assembled rear oil seal carrier over the pilot guide sleeve. Position the large outer driver cup collar over the primary central force bolt thread. Thread down the heavy mechanical force nut by hand until the assembly settles flatly.
5. Execute Controlled Parallel Pressing: Secure the outer tool plate with a backup wrench, and slide a manual 1/2" drive socket or breaker bar over the center forcing hex head. Turn clockwise with smooth, steady leverage. The parallel mandrel will guide the seal perfectly square into the rear bore. Continue turning until the tool flanged rim flat-bottoms against the included spacer ring, locking in exact factory depth parameters.

---
