Detroit Series 60 Cam Timing Procedure: ATC J45946 Guide

By Blogdashfdhd Adminvsbgfsf •
Detroit Series 60 Cam Timing Procedure: ATC J45946 Guide

This 10-phase procedure details the correct use of the ATC J45946 fixture to align cam gears on Detroit Diesel 60 Series engines—ensuring zero timing drift and peak combustion efficiency.

Setting timing on Detroit 60 series with J45946 fixture

Introduction: The Heart of Series 60 Maintenance

Whether you are replacing a camshaft or performing a front-end overhaul, cam gear alignment is the most critical step of the assembly. The ATC J45946 fixture is the only way to verify indexing before the front cover is sealed.

Phase 1-5: Prep & Tool Placement

  1. TDC Verification: Ensure the #1 piston is at Top Dead Center (TDC) on the compression stroke.
  2. Clean Surfaces: Remove all oil from the gear teeth and the housing alignment points.
  3. Gear Seating: Position the cam gear onto the camshaft loosely.

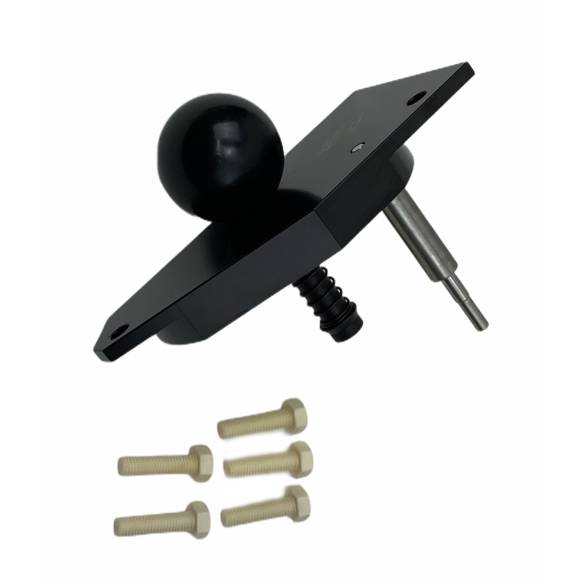

  4. Fixture Engagement: Install the J45946 fixture, ensuring the pins seat fully into the gear and housing alignment holes.
  5. Locking Down: Tighten the fixture bolts to hold the gear firmly in its indexed position.

Phase 6-10: Torquing & Final Verification

  1. Initial Torque: Torque the cam gear bolts per Detroit Diesel OEM specifications while the fixture is engaged.
  2. Visual Check: Verify that the timing marks on the gear train (bull gear to cam gear) are aligned.
  3. Fixture Removal: Carefully remove the J45946 fixture.
  4. Engine Rotation: Rotate the crankshaft two full revolutions by hand to ensure no mechanical interference.
  5. Final Re-check: Return to TDC and verify that the alignment holes still line up with the fixture pins.

Critical Warnings: Avoid These Timing Disasters

DETROIT TIMING HAZARDS:

  • ❌ Skipping the Rotation Check: Never start the engine without a manual 2-turn rotation check; if timing is off, you'll hear it now instead of destroying the engine at 1200 RPM.
  • ❌ Forcing the Pins: If the J45946 fixture pins don't slide in easily, the timing is NOT correct. Do not force them.
  • ❌ Bull Gear Slack: Ensure all gear train backlash is taken up in the direction of rotation before setting the cam timing.

Master the Series 60 Timing. Shop the ATC J45946.
