Chasing a high-load transmission whine or swapping out pitted gears? Learn the professional sequence for pulling and driving Roadranger bearings with the ATC RR1012TR master kit.

Why Improvised Drifts Cause Premature Gear Failure

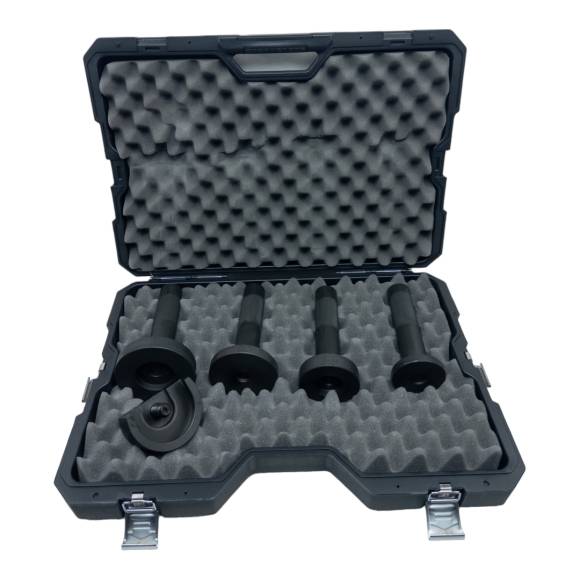

The countershafts inside an Eaton Fuller Roadranger must maintain strict parallel synchronization with the main shaft to distribute massive diesel torque evenly. If a technician uses a socket or standard steel sleeve pipe to drive a countershaft bearing home, the striking force travels irregularly through the inner race. This asymmetrical force causes the bearing to seat unevenly within its bore, creating dynamic shaft runout. Under heavy load, the countershaft will flex microscopically away from the center axis, forcing the gear teeth to mesh improperly. Within a matter of months, this misalignment generates chronic gear whine, localized heat spikes, and accelerated tooth scaling. Utilizing the solid, precision-contoured step-drivers in the ATC RR1012TR kit ensures that energy transfers in a perfectly centered line, seating the bearing perfectly square to the case deck.

The 5-Step Countershaft Rebuild Protocol

1. Tear Down & Bore Triage: Strip the transmission down to expose the main and auxiliary sections. Clean out the case bearing bores completely, removing old sealant scale, carbon tracks, and metal filings. Lubricate the target bore surfaces lightly with clean transmission fluid.
2. Extract the Rear Bearing: Mount the precision RR1012TR-3 Rear Bearing Puller firmly onto the countershaft rear assembly. Tighten the mechanical draw screws evenly to slide the bearing off the shaft smoothly, completely bypassing the need to hammer on the gear face.
3. Drive the Front Bearing: Position the new front bearing onto the countershaft extension journal. Fit the RR1012TR-2 Front Bearing Driver squarely over the inner and outer races. Drive the bearing home using steady, rhythmic manual force or a regulated pneumatic ram until it is perfectly flush.
4. Overhaul the Auxiliary Section: Transition to the auxiliary drive case. Leverage the RR1012TR-5 Auxiliary Puller to extract the auxiliary bearings cleanly, then employ the RR1012TR-6 Auxiliary Driver to seat the fresh replacements down to their engineered snap-ring indices.
5. Verify Shaft Alignment: Once all countershaft bearings are fully seated, use a dial indicator to check the axial runout of the shafts. Confirm that everything turns smoothly with zero binding before locking down the bearing retainer plates and sealing up the gear cases.

---
