Ford 7.3L Front Seal & Damper Install Procedure: 303-484 Guide
By Blogdashfdhd Adminvsbgfsf •
Follow this professional 10-phase procedure using the 303-484 installer to properly seat the front oil seal and vibration damper on Ford 7.3L Power Stroke engines.
Introduction: The Importance of a Precision Press-Fit
On the Ford 7.3L diesel, the front seal prevents oil loss while the damper controls harmonic vibrations that can snap a crankshaft. Using the 303-484 tool ensures both are installed without damaging the crank nose or seal lip.
Phase 1-5: Front Seal Installation
- Clean & Inspect: Thoroughly clean the crankshaft nose and timing cover bore. Check for burrs.
- Lube the Seal: Lightly coat the outer diameter of the seal with clean engine oil or per service manual.
- Position the Seal: Place the seal into the timing cover bore by hand.
- Engage 303-484: Align the installer tool over the crank nose and against the seal.
- Press to Depth: Use the tool to press the seal until it is seated squarely at the OEM specified depth.
Phase 6-10: Vibration Damper Installation
- Align the Keyway: Align the damper keyway with the crankshaft key.
- Thread the Tool: Thread the 303-484 installer into the front of the crankshaft.
- Controlled Press: Turn the tool nut to smoothly press the vibration damper onto the crank nose.
- Verify Seating: Ensure the damper is fully seated against the crank shoulder.
- Final Torque: Remove tool and install the OEM crank bolt to the final torque specification.
Critical Warnings: Avoid These Prohibited Actions
SERVICE HAZARDS:
- ❌ Never Hammer: Impacting the harmonic balancer can damage the crankshaft thrust bearing.
- ❌ Improper Bolts: Using a shorter-than-spec bolt to pull the damper on will strip the first few threads of the crank.
- ❌ Dry Seal Install: Installing a dry seal can cause immediate "heat-checking" and failure on first startup.
Get Your 7.3L Power Stroke Back on the Road with Confidence.

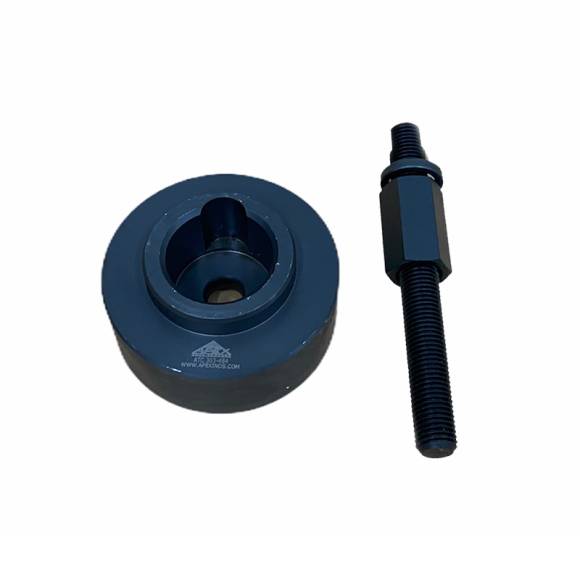

Shop ATC 303-484 – $80.00
