Dealing with a diesel-contaminated cooling system or rough cold starts? Learn the professional technical sequence to pull and press brass sleeves with the ATC 303-DS105 tool.

Why Off-Axis Chiseling Destroys Cylinder Head Valve Castings

The injector well cavity on a 7.3L Powerstroke is tight, making freehand extraction exceptionally risky. When a line mechanic attempts to drive a cold chisel down the side of a brass cup to crush it out, the high-impact energy travels sideways. This asymmetrical load gouges the soft cast iron seating land. Once the casting wall is scarred, a brand-new sleeve will never seat uniformly, leading to recurring coolant leaks. Utilizing a threaded, pilot-aligned expansion mandrel like the ATC 303-DS105 draws the cup straight up along a concentric centerline, shielding the cylinder block from structural damage.

The 5-Step Injector Sleeve Renovation Sequence

1. 场地Drain and Clean the Fuel Rails: Isolate the vehicle batteries. Drain the cooling system and the cylinder head oil/fuel rails completely. Pull the HEUI injectors and clear out all standing fluid from the injector wells to establish a clean, dry work zone.

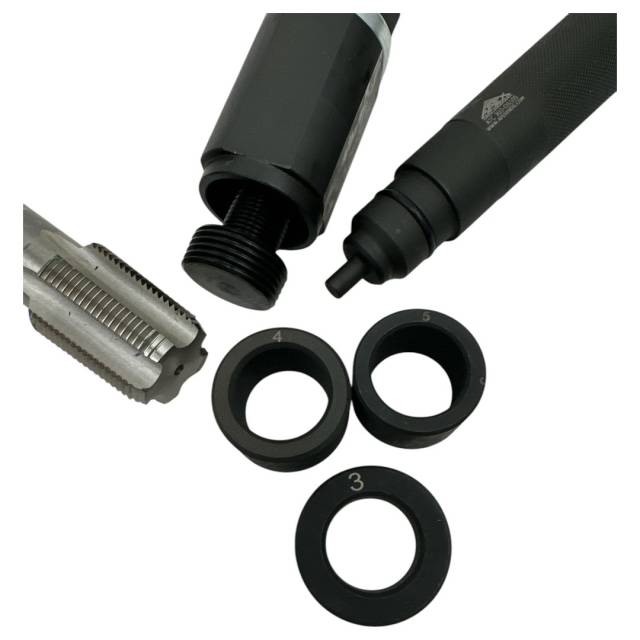

2. Lock and Extract the Brass Core: Insert the mechanical puller mandrel of the ATC 303-DS105 deep into the worn brass sleeve. Tighten the central expansion nut to lock the tool jaws firmly into the cup walls. Turn the primary force nut clockwise smoothly—the vertical tension will cleanly break the old seal bond and draw the cup straight out.
3. Bore Land Conditioning: Polish the internal cylinder head receiver bore land with a non-marring abrasive pad until bright metal is achieved. Clean out all loose material and residual scale using a shop vacuum. Wipe the entire surface down with a quick-drying solvent.
4. Apply Anaerobic Retaining Compound: Apply a clean, uniform bead of a high-temperature anaerobic green retaining compound (such as Loctite 620) around the upper and lower seating lands of your fresh **F4TZ-9F538-A** brass cup. Avoid over-applying to prevent excess sealant from blocking fuel passages.
5. Drive the New Sleeve Home: Position the new sleeve squarely onto the tip of the ATC 303-DS105 installation driver. Lower it into the bore and tap the driver handle with a dead-blow hammer until it bottom-seats flatly against the lower machining shoulder. Inspect the landing area to verify parallel fitment.

---
