Coolant in the Fuel? Why the ATC 303-DS105 is Mandatory for 7.3L Powerstroke Overhauls
Eliminate diesel-in-coolant leaks and service brass cups safely without head removal.
Finding fuel in your cooling system or a mysterious white haze from the exhaust? Cracked injector cups on a 7.3L Powerstroke are the prime suspect. The ATC 303-DS105 Master Kit delivers the exact concentric mechanical geometry needed to extract and press sleeves cleanly in-frame.
The Critical Physics of HEUI Injector Cup Boundaries

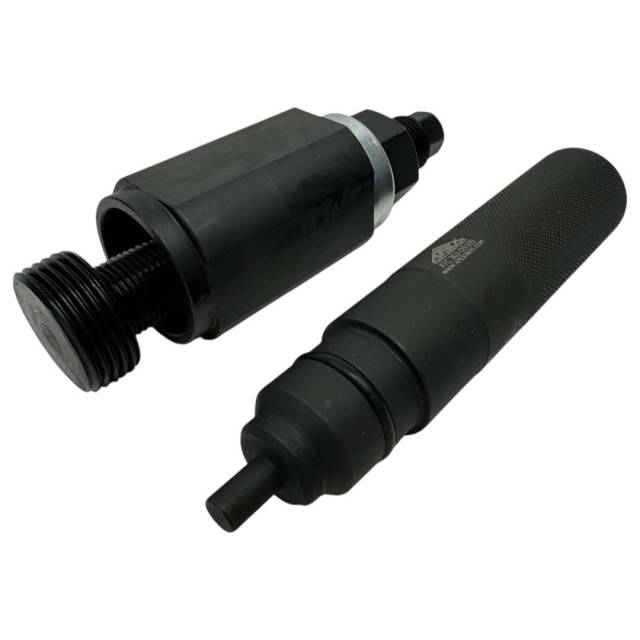

On the legendary Ford 7.3L Powerstroke diesel engine, the thin brass fuel injector sleeves (injector cups) form the sole barrier separating high-pressure fuel inside the HEUI injection system from the surrounding engine block coolant passages. Over decades of severe service, thermal cycling degrades the retaining compound and pinches the thin brass casting, creating microscopic tracking paths. Trying to yank these cups out with unguided chisels, slide hammers, or slide hooks is a critical trap—one minor slip permanently scores the delicate cast iron cylinder head bore landing. The ATC 303-DS105 bypasses this risk completely. It utilizes an internal expansion puller mandrel and a perfectly concentric driver that pulls and sets the sleeves on a rigid, parallel centerline axis without requiring cylinder head removal.
- Dual-Function Extraction & Press Master – Combines both a positive-locking puller and a flat-seating installation driver in a single turnaround package.
- Direct OEM Blueprint Specification – Purpose-engineered to work flawlessly with standard factory sleeve part number **F4TZ-9F538-A**.
- Absolute In-Frame Efficiency – Enables technicians to service all eight injector cups with the cylinder heads mounted inside the truck frame, slashing labor hours.
- Flawless F-Series Fitment – Tailored precisely for 1999–2003 Ford F-250, F-350, F-450, and F-550 Super Duty work truck lines.
- High-Tensile Specialty Mass – Weighs an agile, service-ready 5.00 lbs, forged from premium hardened tool steel to maintain sharp alignment over repeated use.
Stop Gambling on Fluid Contamination. Enforce Precision Centerlines.
The ATC 303-DS105 Fuel Injector Cup Tool Kit is a mandatory requirement for independent diesel shops, commercial fleet centers, and dedicated Powerstroke rebuilders. Stop fighting caked brass—lock down a perfect hydraulic seal with Apex.
Perfect Axial Alignment. Drip-Free Fluid Containment.
Buy the 7.3L Master Cup Kit – $340.00Technical Specifications
| Technical Metric | Value / Compatibility Guidelines |
|---|---|
| Engine Platform Blueprint | Ford Powerstroke 7.3L V8 Turbo Diesel (1999–2003) |
| Sleeve Specification Matching | OEM Part Number F4TZ-9F538-A Brass Injector Cups |
| Truck Class Compatibility | Ford F-250, F-350, F-450, F-550 Super Duty Lineups |
| Tool Operations Range | Simultaneous internal expansion puller and parallel depth driver |
| Material Matrix | High-strength structural tool steel forgings |
| Shipping Weight Profile | 5.00 lbs (Compact, high-density shop weapon) |
