Ford 6.7L PowerStroke Rear Crankshaft Seal Installation Procedure: ATC 303-1514 Guide
By Blogdashfdhd Adminvsbgfsf •
This 10-phase procedure uses the ATC 303-1514 installer to precisely seat the rear main crankshaft seal on Ford 6.7L PowerStroke engines—ensures correct depth, alignment, and leak-free sealing.
Introduction: Proper Rear Main Seal Installation for 6.7L PowerStroke
The ATC 303-1514 ensures concentric, depth-controlled seating—critical for preventing oil leaks into the bellhousing and protecting clutch/transmission components.
Phase 1-3: Preparation & Seal Area Access
- Secure vehicle / engine – Lift or stand support
- Remove transmission / bellhousing – Gain full crankshaft access
- Remove old seal & clean journal – Inspect for scoring or wear
Phase 4-6: Seal Preparation & Installer Setup
- Lubricate new seal lip – Use engine oil or assembly lube
- Position seal on crankshaft – Align evenly on journal

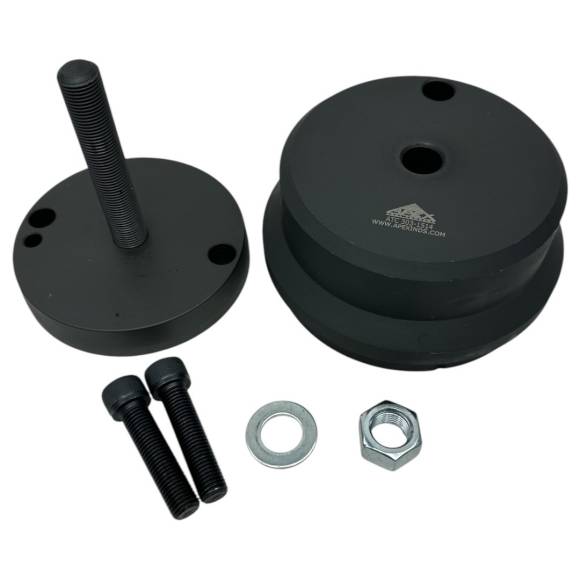

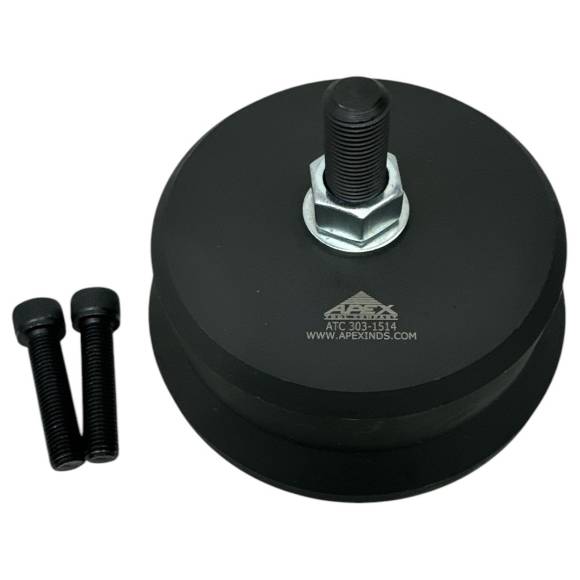

- Install ATC 303-1514 tool – Seat properly on seal & crankshaft
Phase 7-10: Seal Seating & Final Checks
CRITICAL: ATC 303-1514 Installation Protocol
- Apply even force – Press seal to correct depth
- Remove installer tool – Verify seal is flush & seated
- Reassemble transmission – Torque to Ford spec
- Check for leaks & run engine – Confirm dry bellhousing
Critical Warnings: Rear Seal Installation Hazards
AVOID THESE COSTLY ERRORS:
- ❌ Hammer / socket method – Seal lip damage
- ❌ Uneven pressure – Cocking & leaks
- ❌ No lubrication – Dry seal failure
- ❌ Skip depth check — Incorrect seating
- ❌ No leak test — Undetected oil migration
Why ATC 303-1514 Beats Improvised Methods
Improvised Risks:
- ❌ Hammer shock → $400+ seal damage
- ❌ Off-center force → Journal scoring
- ❌ No depth control → Persistent leak
ATC 303-1514 Advantages:
- ✅ Exact OEM depth & alignment
- ✅ Concentric seating
- ✅ Seal & journal protection
- ✅ Faster installation
- ✅ Saves $2.9K–$10K per bad job
- ✅ 6.7L reliability
Install 6.7L Rear Seals the OEM Way. Perfect Depth. No Leaks. Long-Term Reliability.
Get ATC 303-1514 – $450.00
