Tech Guide: IPR Valve Replacement for 6.0L & DT466
Dealing with "no-start" or "low oil pressure" codes? Learn the proper way to extract and replace IPR valves using the 303-1112 specialized socket.
Why Specialized Sockets are Mandatory
On Ford 6.0L and Navistar engines, the IPR valve determines the oil pressure sent to the injectors. These valves are prone to sticking due to debris. However, the IPR is located at the back of the engine block, often under the turbo or deep in the HPOP cover. A standard socket will either crush the plastic connector or won't have the "bite" needed for a heat-welded valve. The 303-1112 ensures you can apply 100% of your torque to the base of the valve where it matters.
The Replacement Procedure
- Clear Access: Depending on the engine, you may need to remove the FICM or turbo heat shields to reach the IPR valve.
- Disconnect: Carefully unplug the IPR electrical connector. Do not pull on the wires.

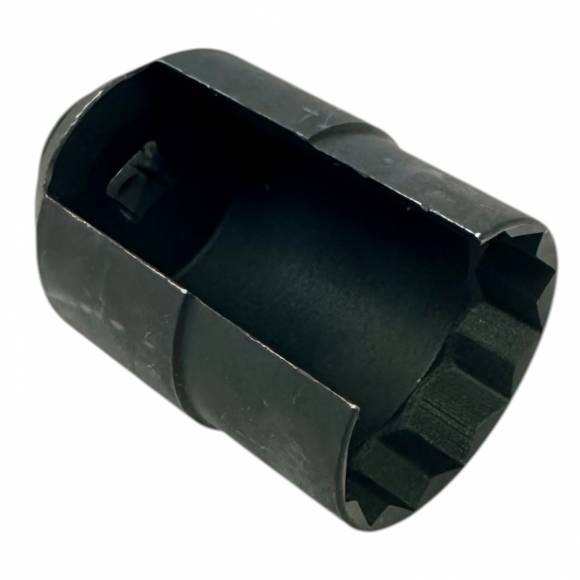

- Socket Engagement: Slide the 303-1112 socket over the valve. Align the slot with the electrical pins to avoid contact.
- Removal: Use a breaker bar to loosen the valve. These are often extremely tight due to thermal cycling.
- Clean & Install: Clean the port threads. Inspect the new O-rings for nicks. Hand-start the new valve, then use the 303-1112 to reach factory torque specs.
DIAGNOSTIC TIP:
If the engine only starts when cold but dies when hot, the IPR valve O-rings or the internal solenoid are usually failing. Using the 303-1112 allows you to swap the valve in half the time of improvised methods.
