Replacing brass or stainless steel fuel injector sleeves on a heavy-duty John Deere 10.5L or 12.5L power plant? Attempting to drive new injector cups into cylinder head bores using makeshift brass drifts, sockets, or unguided hammer blocks leads directly to crushed nozzle seats, cocked sleeve walls, and catastrophic coolant-to-fuel cross-contamination. The JDG981 Injector Sleeve Installation Tool Kit delivers 100% parallel, concentric installation force to press sleeves squarely to exact OEM depth limits without bore scoring or casting damage.

The Critical Physics of Heavy-Duty John Deere Injector Sleeve Hydraulic Sealing

On large-displacement John Deere 10.5L (6105) and 12.5L (6125) agricultural, construction, and industrial powerhouses, unit injector sleeves act as a critical thermal and hydraulic divider. They seal internal engine coolant jackets directly away from high-pressure fuel injectors and combustion chambers. Over extended operation, thermal fatigue, or coolant degradation, replacing worn sleeves becomes necessary during cylinder head reconditioning. However, inserting a fresh injector sleeve requires precise, uniform expansion and linear placement. If a technician uses an unguided socket or incorrect driver to hammer a new sleeve home, off-center impact forces tilt the sleeve casing relative to the cast-iron head bore. Cocking the sleeve deforms the thin-walled sealing lands or crushes the lower nozzle seat. Once the engine reaches operating temperature, pressurized coolant bypasses the damaged sleeve lands, filling combustion chambers or contaminating fuel tanks. The JDG981 installation system completely eliminates these overhaul hazards. Engineered as a direct functional equivalent for John Deere OEM tool code JDG981 (ATCJDG981), this master driver kit features application-specific alignment mandrels and precision depth-stop drivers. The tooling applies 360-degree, dead-centered force along the exact bore axis—drawing the sleeve down squarely until it bottoms out precisely against factory depth limits.

• Targeted John Deere 10.5L & 12.5L Fitment – Engineered specifically for precision injector sleeve installation on John Deere 6105 (10.5L) and 6125 (12.5L) heavy-duty diesel engine cylinder heads.
• Direct OEM Special Tool Interchange – High-strength aftermarket replacement for John Deere factory tool part number **JDG981** (JDG-981 / ATCJDG981).
• 360-Degree Parallel Driver Mandrel – Prevents sleeve cocking, casing distortion, and internal nozzle seat crushing during pressing.
• Protects Cast-Iron Head Bores – Guides new sleeves smoothly down the central bore axis to preserve anaerobic sealant bonds and prevent wall scoring.
• Heavy-Duty Shop Tooling Metallurgy – Weighing 6.20 lbs, this heat-treated alloy steel kit is built for daily commercial shop use in ag and construction overhaul facilities.

Stop Damaging Injector Sleeves. Command Total John Deere Cylinder Head Precision.

The JDG981 John Deere 10.5L / 12.5L Injector Sleeve Installation Tool Kit is an indispensable capital asset for agricultural equipment dealerships, heavy equipment repair centers, commercial diesel machine shops, and engine remanufacturers. Prevent costly coolant leaks, safeguard head castings, and press injector sleeves with complete mechanical authority using Apex tools.

Technical Specifications

Technical Metric	Value / Fitment Reference Guidelines
Target Engine Platforms	John Deere 10.5L (6105) and 12.5L (6125) Commercial Diesel Engines
Primary Operational Function	Concentric, damage-free installation and depth-stop seating of fuel injector sleeves
OEM Special Tool Cross Reference	Direct functional replacement for John Deere factory tool JDG981 / ATCJDG981
Part / Model Reference Number	JDG981 (JDG-981 / ATCJDG981)

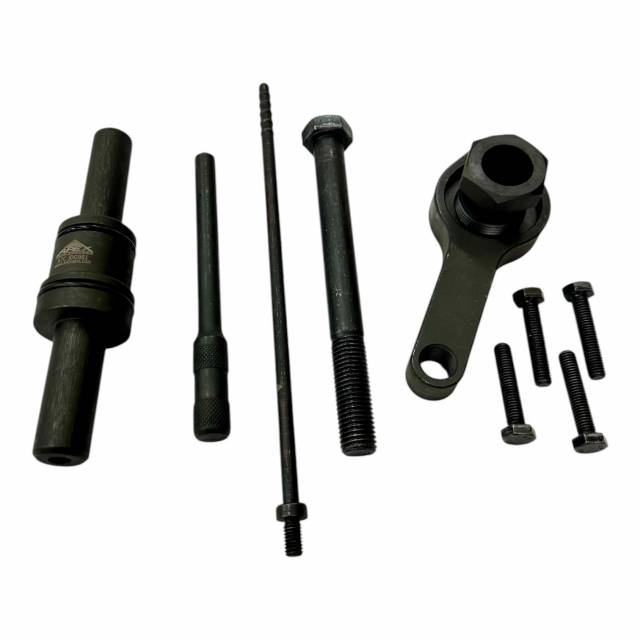

Included Kit Components	Application-specific driver mandrels, alignment pilots, and depth-stop collars
Total Package Shipping Weight	6.20 lbs (Heavy-duty precision-machined structural tool steel master kit)

---
