In-Frame Procedure: John Deere 12.5L Nozzle Sleeve Replacement

By Blogdashfdhd Adminvsbgfsf •
In-Frame Procedure: John Deere 12.5L Nozzle Sleeve Replacement

Don't pull the head! Follow this professional procedure to remove and install nozzle sleeves in John Deere 10.5L-13.5L engines using the JDG1184 tool set.

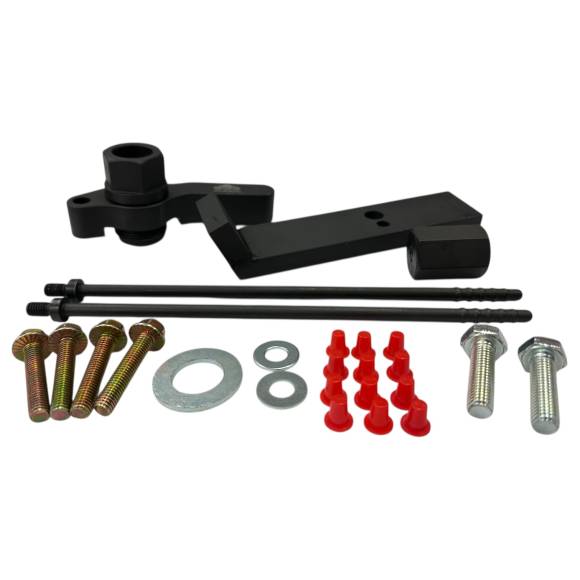

Step-by-step EUI nozzle sleeve replacement with JDG1184

Why Controlled Extraction is Mandatory

The nozzle sleeves on 13.5L engines are situated deep in the cylinder head. Any "cocking" of the sleeve during removal can score the head bore, leading to permanent leaks. The JDG1184 ensures vertical, linear force for a clean pull and a square press-fit during installation.

Phase 1-5: Extraction Procedure

  1. Drain Coolant: Lower the coolant level significantly below the head to prevent flooding the cylinders.
  2. Clean the Cup: Remove the injector and use a vacuum to clear all carbon from the internal sleeve base.
  3. Puller Engagement: Insert the JDG1184 puller into the sleeve and expand the collet to grip the bottom edge.
  4. Mechanical Lift: Using the bridge assembly, rotate the puller nut to extract the sleeve vertically.
  5. Bore Prep: Clean the cylinder head bore thoroughly. Any debris left behind will prevent the new sleeve from sealing.

Phase 6-10: Installation & Sealing

  1. Sealant Application: Apply the recommended John Deere sleeve sealant to the new nozzle cup.
  2. Installer Setup: Place the new sleeve onto the JDG1184 installer driver.
  3. Square Seating: Drive the sleeve into the head bore using the tool to ensure it reaches the correct OEM depth.
  4. Visual Verification: Ensure the sleeve is flush and the sealant has a consistent bead around the circumference.
  5. Pressure Test: After the sealant cures, pressure test the cooling system before reinstalling injectors.

Critical Warnings: Avoid These EUI Disasters

HEAVY-DUTY ENGINE HAZARDS:

  • ❌ Sealant Cure Time: Never start the engine immediately. Follow OEM cure times for the sleeve sealant or risk a "first-start" leak.
  • ❌ Reusing Pullers: Inspect the puller collet for wear. A slipping puller can damage the sleeve seat, ruining the cylinder head.
  • ❌ Debris in Piston: Ensure the cylinder is covered. Dropping a piece of carbon or a metal chip onto the piston can cause scoring on startup.
