John Deere Front Seal Removal: JDG1923A Professional Guide

By Blogdashfdhd Adminvsbgfsf •
John Deere Front Seal Removal: JDG1923A Professional Guide

Accuracy at the crankshaft nose is the difference between a leak-free engine and a costly comeback. Follow this guide to safely remove unitized seals using the JDG1923A remover.

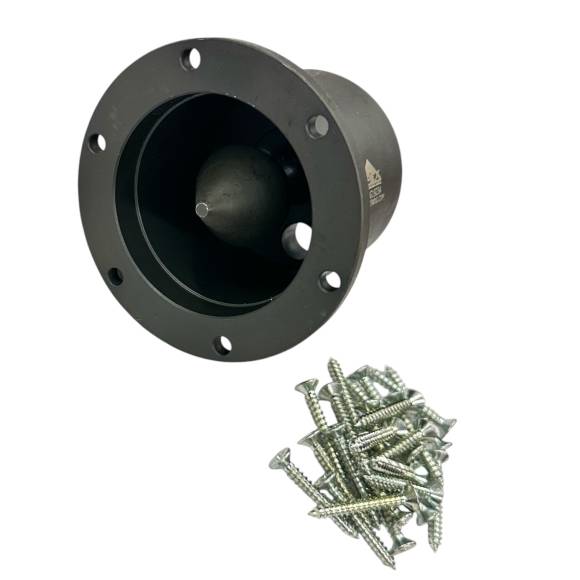

JDG1923A components for crankshaft sleeve removal

Why Unitized Seals are Different

Traditional seals slide over a shaft; unitized seals carry their own wear surface (sleeve) with them. This creates a very tight metal-on-metal press fit on the crankshaft. Without the JDG1923A, technicians often resort to heating or drilling, both of which introduce dangerous thermal stress to the crankshaft.

The 10-Phase Removal Procedure

  1. Access the Front Cover: Remove the fan, belts, and harmonic balancer to expose the crankshaft nose.
  2. Clean the Area: Use brake cleaner to remove oil and debris from the face of the unitized seal.
  3. Tool Setup: Position the JDG1923A remover over the crankshaft nose.
  4. Engage the Sleeve: Securely engage the lip of the unitized sleeve with the remover jaws.
  5. Center the Pressure Screw: Ensure the main screw of the JDG1923A is centered on the crankshaft face.
  6. Apply Tension: Rotate the pressure screw clockwise by hand until the tool is snug.
  7. Controlled Extraction: Using a wrench, turn the pressure screw to pull the seal and sleeve assembly forward.
  8. Monitor Alignment: Ensure the tool remains straight to prevent side-loading the crankshaft.
  9. Final Removal: Once the sleeve is free, inspect the crankshaft for any previous wear or corrosion.
  10. Bore Prep: Clean the crankshaft nose with fine crocus cloth before installing the new unitized assembly.

Critical Warnings: Avoid These Crankshaft Disasters

FRONT SEAL HAZARDS:

  • ❌ Never Chisel the Sleeve: A unitized sleeve is hardened steel. Striking it with a chisel often results in the chisel slipping and gouging the crankshaft.
  • ❌ Avoid Torch Use: Excessive heat can ruin the metallurgy of the crankshaft nose, leading to snapped cranks under high load.
  • ❌ Reusing Sleeves: Unitized seals are destroyed upon removal. Never attempt to reinstall a pulled sleeve.

Fast, Safe, Professional. Shop JDE1923A.

Order JDG1923A Remover
