Servicing a leaking front crank seal on an ag tractor or clearing the front cover plate on a combine? Learn the professional technical sequence to pull tapered balancers safely using the JDG2074A tool stack.

Why Asymmetrical Hammer Drifting Splits Brittle Balancer Hub Rings

The vibration damper on a John Deere PowerTech block forms a tight, unyielding interference bond against the tapered nose of the crankshaft. Over thousands of hard agricultural running hours, dust, mud scale, and intense engine heat create a stubborn mechanical freeze. When an untrained field technician tries to break this bond by tapping the rear rim of the balancer with heavy hammers or unguided steel drifts, the impact energy travels off-axis. This twisting wedges the tapered surfaces together even tighter, causing the brittle composite damper metal to crack or fracture. Even minor lateral strikes can bend the front edge of the crank or slide the outer ring completely out of index, destroying its tuning balance. Utilizing a dedicated bolt-on puller assembly like the JDG2074A ensures that all extraction force remains 100% linear, pulling the balancer off smoothly with zero impact damage.

The 5-Step Harmonic Balancer Removations Sequence

1. 场地Execute Work Compartment Clearance: Disconnect the battery lines. Safely pull away obstructing engine side panels, fan shroud rings, and drive belts to secure a clear vertical extraction workspace over the front crank deck.
2. Clean out the Damper Thread Points: Back out the primary central crankshaft retaining bolt. Scrape out any packed grit, grease sludge, or rust scale from the threaded holes on the balancer face with solvent and a small wire chaser brush to maximize bolt engagement.

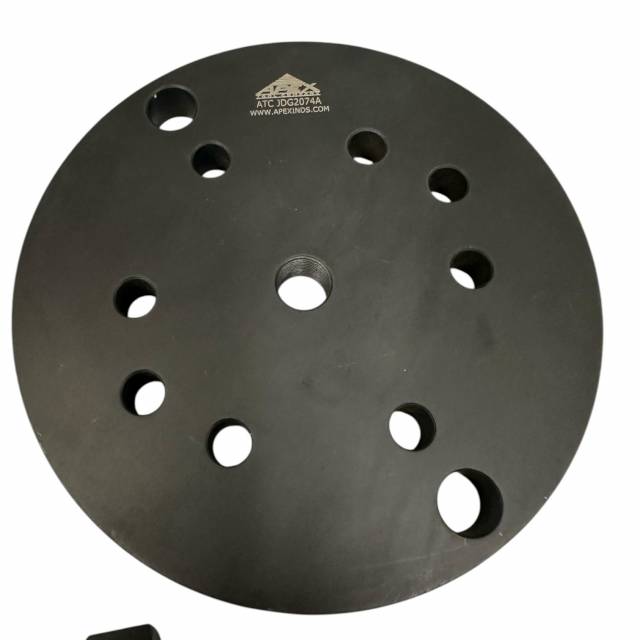

3. Bolt down the JDG2074A Flange Plate: Set the thick circular plate of the JDG2074A tool flat against the front face of the balancer. Thread the kit's high-strength puller mounting bolts through the plate and deep into the balancer hub hole pattern, tightening them evenly to prevent the plate from sitting cocked.
4. Introduce Center Forcing Load: Lubricate the fine threads of the primary center forcing bolt rod lightly with engine oil or anti-seize. Thread it into the center of your mounted tool plate until the pilot point seats flush against the nose of the crankshaft snout.
5. Execute Controlled Mechanical Pulling: Secure the outer tool flange with a backup bar, then slide your manual 1/2" drive breaker bar or a heavy shop wrench over the center forcing hex head. Turn clockwise with smooth, steady leverage. The intense mechanical advantage will quickly pop the taper seal and draw the balancer off the crank axis cleanly.

---
