John Deere Rebuild Guide: Timing the 4239 & 6359 Diesel Engines
By Blogdashfdhd Adminvsbgfsf •
Timing an overhaul is the most critical phase of any engine build. Learn how to use the JT07223A tool set to synchronize your gear train for maximum fuel efficiency and power.
Why Mechanical Precision Matters
In the world of John Deere diesel service, the 4239 and 6359 engines are legendary workhorses. However, their mechanical injection systems require pinpoint accuracy. If the relationship between the crankshaft and the injection pump is off by even a few degrees, the fuel is injected at the wrong point in the compression stroke—resulting in power loss and engine wash.
Step-by-Step Timing Synchronization

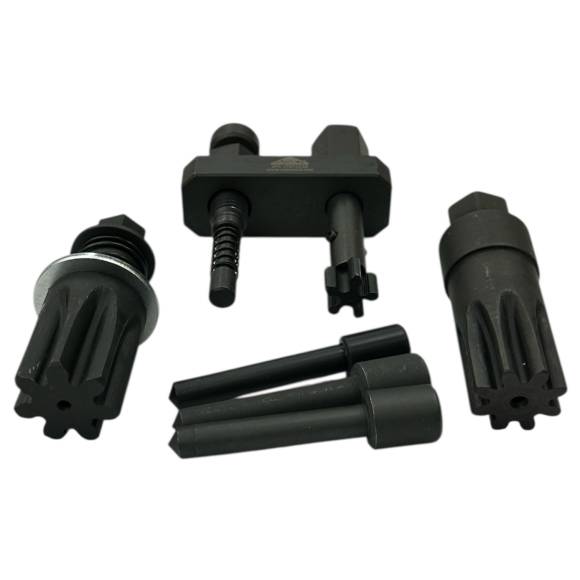

- Find Top Dead Center (TDC): Use the JT07223A flywheel locking pin to secure the crankshaft at TDC for cylinder #1.
- Lock the Injection Pump: Utilize the specialized pump timing pin to ensure the internal pump cam is at the correct start-of-injection point.
- Align the Camshaft: Verify gear marks and ensure the camshaft is positioned according to the firing order requirements.
- Install Gear Train: With all components locked in place, install the timing gears. The JT07223A prevents the gears from "creeping" during installation.
- Verify All Marks: Before removing the locking pins, perform a triple-check of all mechanical timing marks.
Avoiding Catastrophic Timing Errors
CRITICAL TIMING HAZARDS:
- ❌ Improper Pin Engagement: Never force the timing pins. If they don't slide in smoothly, your alignment is slightly off.
- ❌ Reusing Worn Gears: Even with the best tools, excessive gear backlash can affect timing. Inspect all gear teeth before assembly.
- ❌ Forgetting the Pins: Always remove ALL timing pins before attempting to rotate the engine by hand or with the starter!
