Speed vs. Precision: Safe John Deere Seal Removal with JDE88
Speed meets precision in this guide to John Deere front seal extraction.
When a front seal fails, the clock starts ticking. Learn how the JDG719 and JDE88 combination provides the speed of a slide hammer with the precision of an OEM tool.
The Danger of Improper Seal Removal
Many technicians try to "walk" a front seal out using a flathead screwdriver or a generic hook. This is a recipe for disaster. The crankshaft nose is a high-precision sealing surface; a single scratch from a slipped tool will cause your brand-new seal to leak immediately. The JDG719 puller eliminates this risk by engaging the seal body directly and pulling it straight out.
The "No-Cover" Extraction Process
- Clear Access: Remove the drive belts and the crankshaft pulley/balancer.
- Tool Engagement: Thread the JDG719 puller into the metal body of the oil seal.

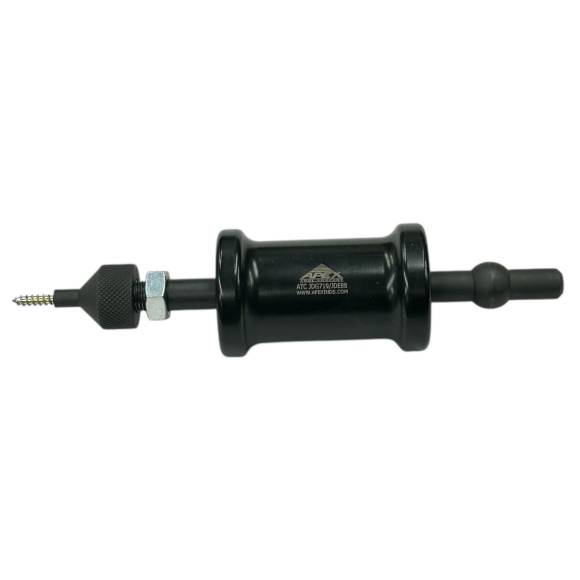

- Slide Hammer Attachment: Thread the JDE88 slide hammer into the back of the JDG719 tool.
- Controlled Pull: Use short, firm strokes with the slide hammer weight to unseat the seal.
- Bore Inspection: Once the seal is out, clean the bore and inspect the crankshaft for any pre-existing wear.
Maintenance Matters
PRO-TIP FOR LONGEVITY:
After removing the old seal, always check the crankshaft for a "wear groove." If the old seal has cut a path into the metal, a standard replacement may leak. Consider a wear sleeve or an offset seal position to ensure a dry engine.
Efficiency in Every Strike. Shop JDG719 & JDE88.
Buy the Front Seal Puller Kit
