Don't let a sticky valve sideline your equipment. Follow this professional procedure to correctly install SCV valve guides and detent cam pins using the JDH28 precision driver.

Why Specialized Tooling is Mandatory for SCV Repair

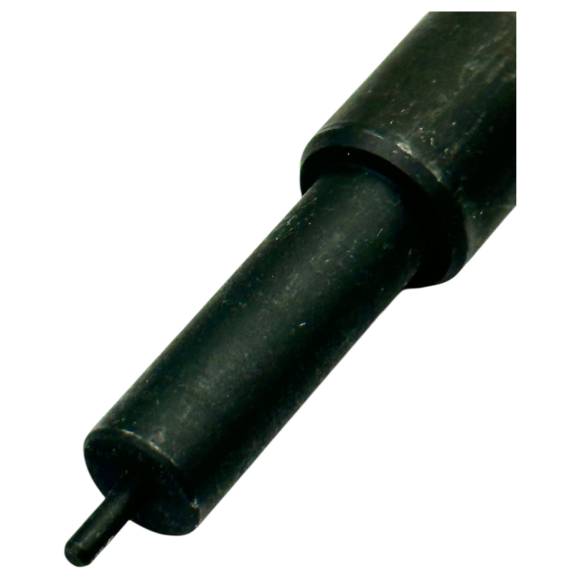

Hydraulic control valves rely on tight tolerances. Even a minor scratch or burr on the valve guide can cause erratic implement movement. The JDH28 driver is engineered to interface perfectly with the guide's profile, spreading the force evenly to prevent damage.

Phase 1-5: Disassembly & Preparation

1. Clean the Work Area: Hydraulics and dirt don't mix. Clean the SCV body thoroughly before disassembly.
2. Remove Old Components: Carefully extract worn valve guides or detent cam pins using appropriate pullers.
3. Inspect the Bore: Check the valve body for scoring or debris. Lightly lubricate the bore with clean hydraulic oil.
4. Component Alignment: Place the new valve guide or detent pin into the start of the bore.
5. Driver Engagement: Insert the pilot end of the JDH28 into the guide to ensure a centered fit.

Phase 6-10: Final Installation & Testing

6. Drive to Depth: Apply controlled force using the JDH28 until the component is fully seated.
7. Verify Seat: Remove the tool and visually inspect that the guide is flush and the pin moves freely.
8. Reassemble Detent: Install the detent spring and ball assembly back into the cam pin guide.
9. Cycle the Valve: Manually move the SCV lever to ensure there is no binding or "notchy" feel.
10. Pressure Test: Reinstall the valve on the equipment and check for consistent hydraulic response under load.
